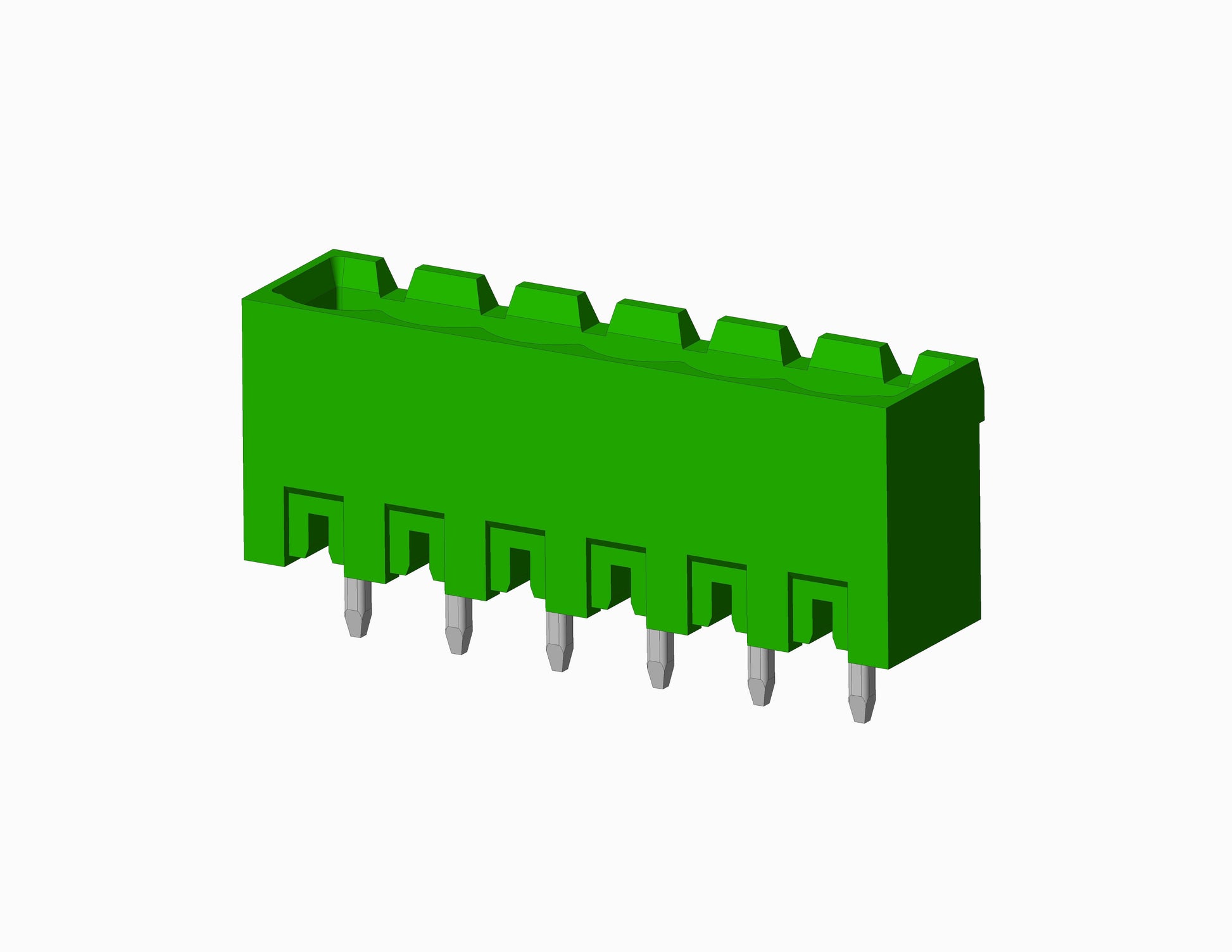

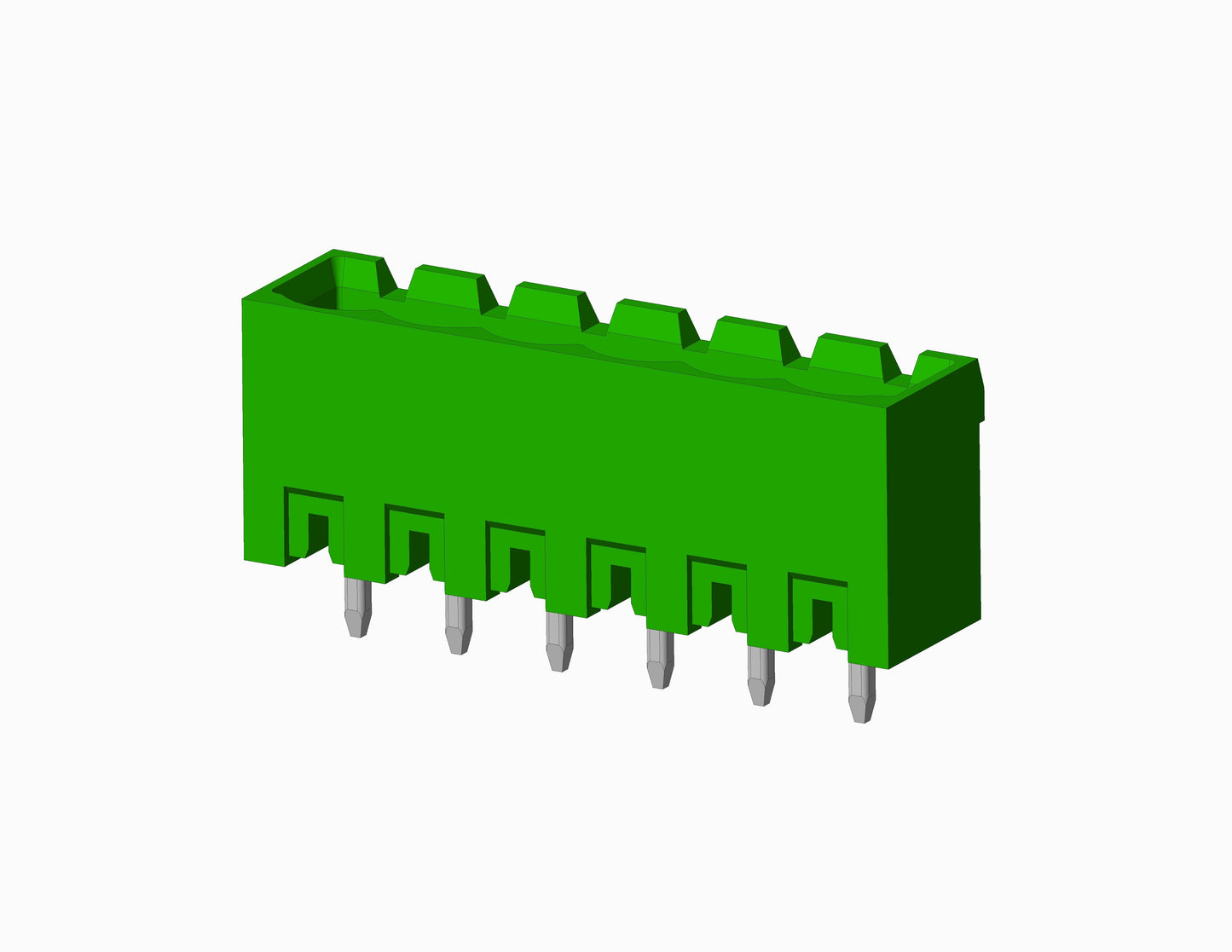

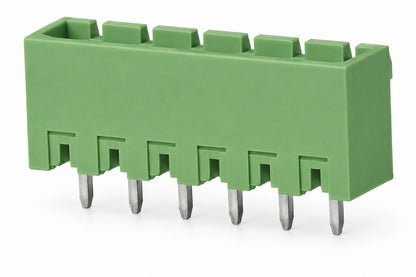

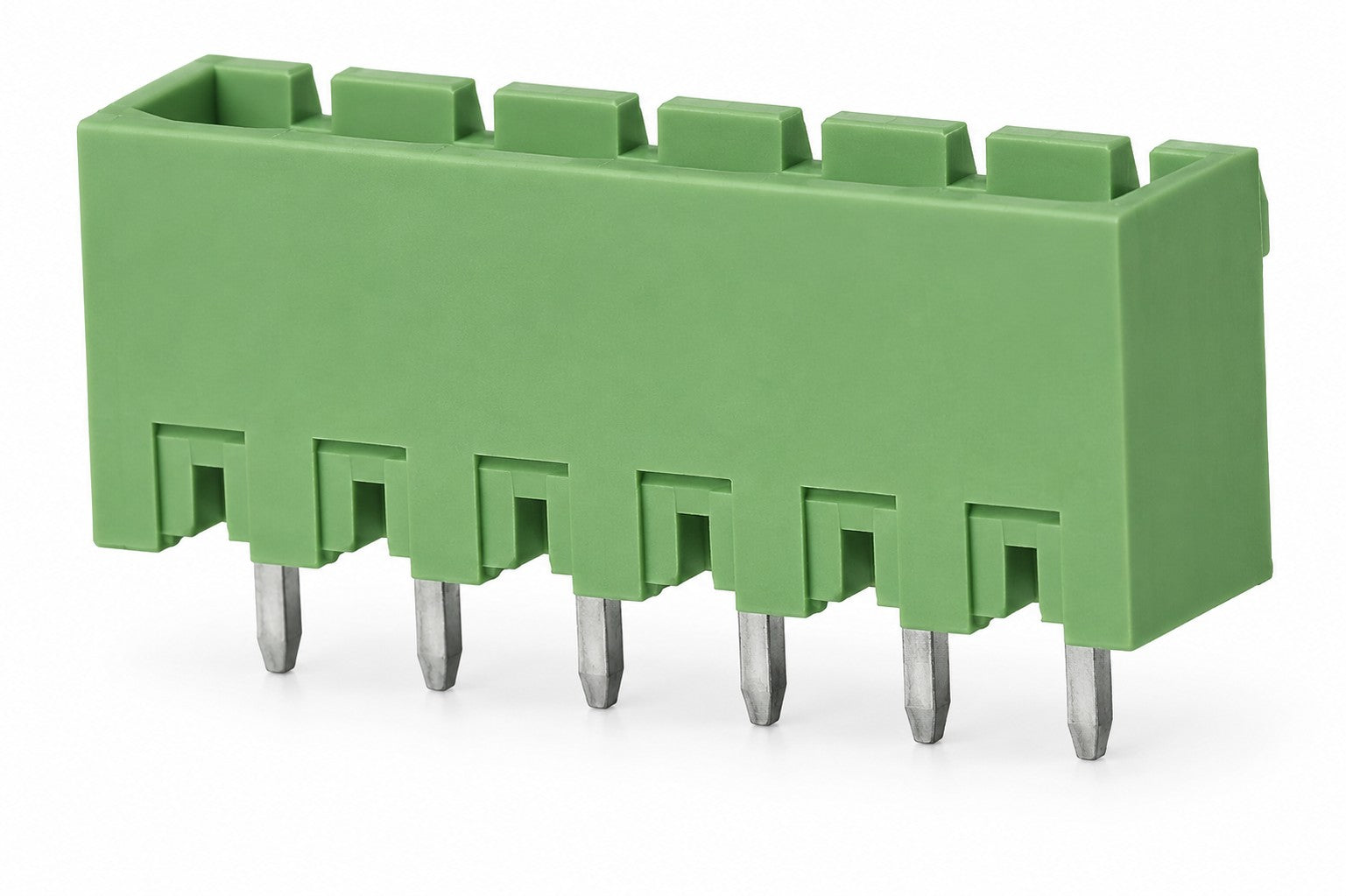

Name: VC1508-XX-X0X SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Headers > Shrouded > Standard (5mm-5.08mm) > VC1508-XX-X0X

Approvals

1 1

Standard

VC1508-XX-X0X Series - Shrouded - 5.08mm

Request Sample Request 3D File

VC1508-XX-X0X Pluggable Headers. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Vertical, Closed, Mountable.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Please See PDF

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
