Name: EB406 SERIES Tool Required Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Terminal Blocks | Spring | Pluggable | Tool Required >

Approvals

1 1

Standard

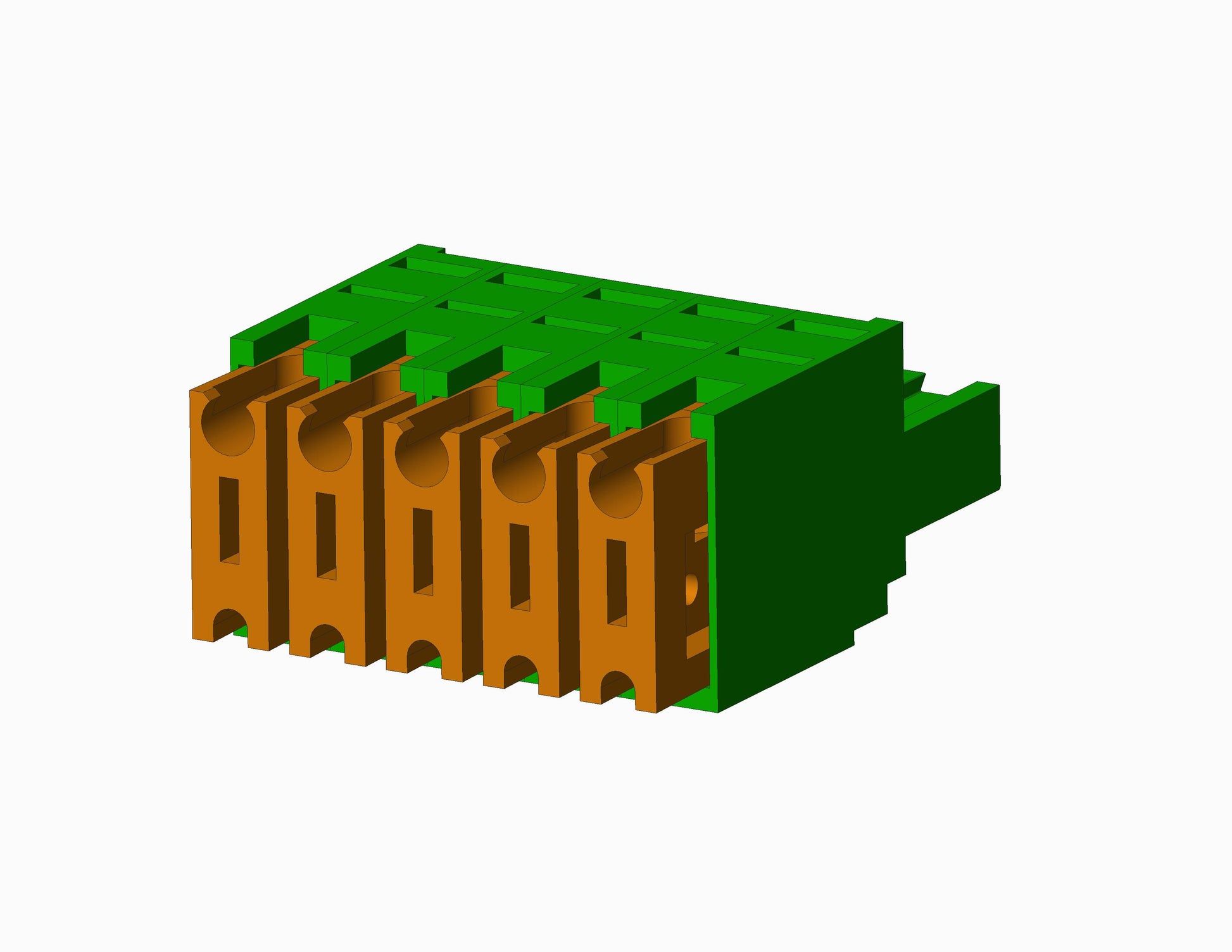

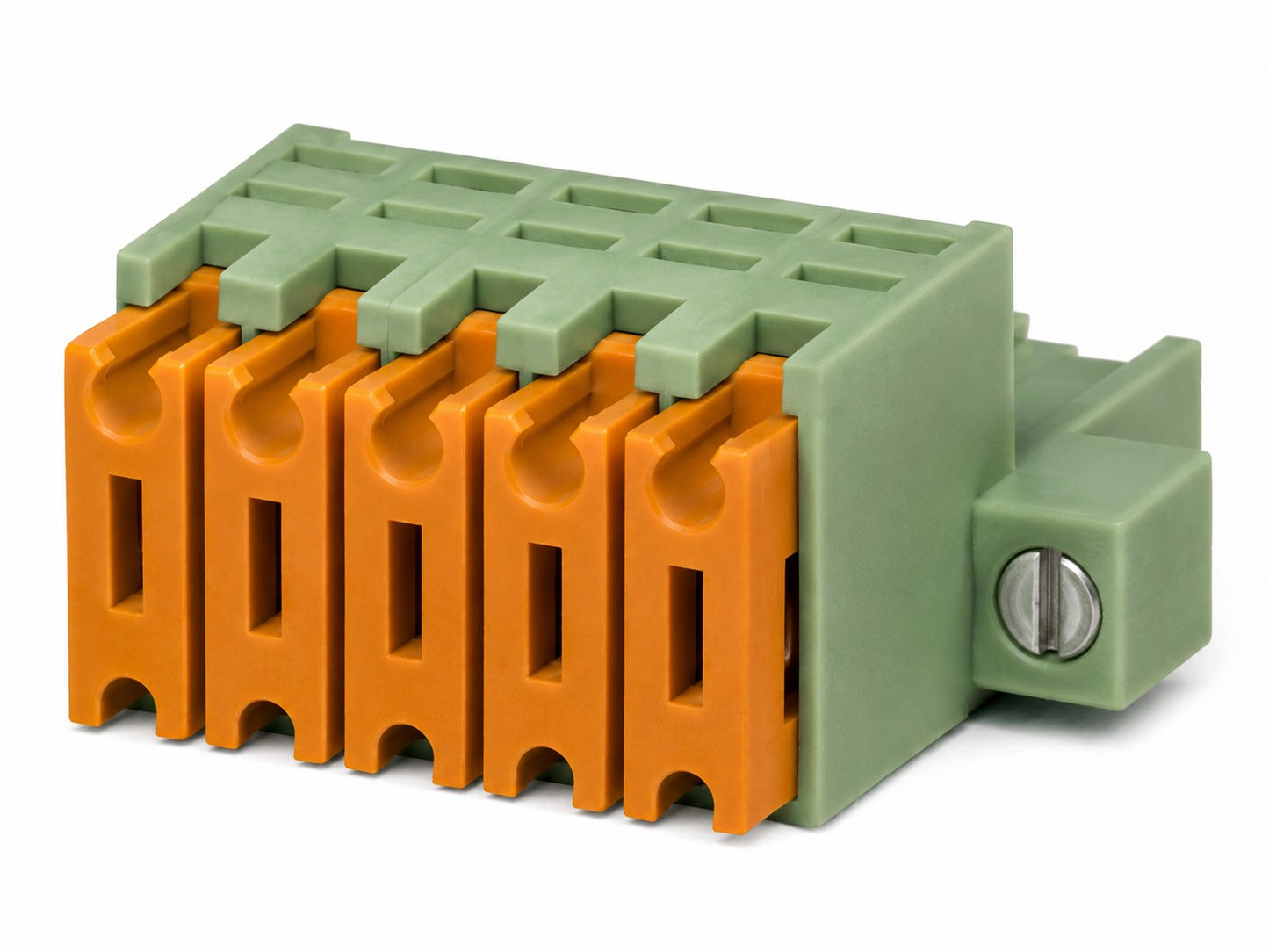

EB406 Series - Spring - Pluggable - Tool Required - 5.08mm

Request Sample Request 3D File

EB406 Tool Required Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 7 Amps. It accommodates wire sizes from 18-22AWG. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 7 Amps

Wire Range Min / Max 18-22AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Wire Guard Material: Stainless Steel

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
