EB580 Series - Screw - Pluggable - Rising Cage - 5.08mm

Request Sample Request 3D File

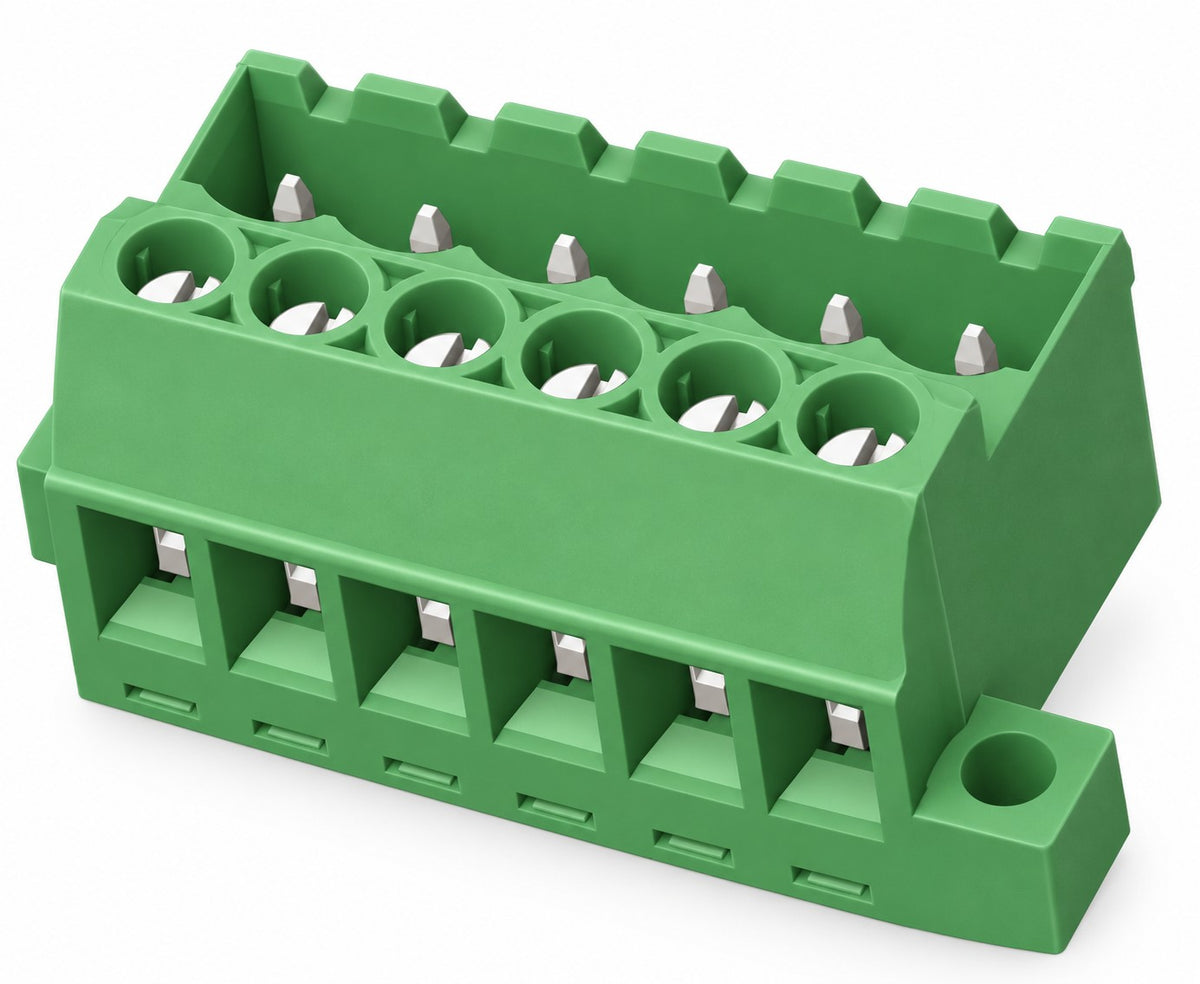

EB580 Rising Cage Pluggable Block. It has a centerline spacing of 5.08 mm. The voltage rating is 300 VAC. The current rating is 12 Amps. It accommodates wire sizes from 12–30 AWG. The torque rating is 5.0 lbs-in. Available in 2-24 positions. The contact block is made of brass, Ni plated. The housing is constructed from polyamide.

Maximum number of positions 24

Centerline Spacing 5.08 mm Spacing

Mechanical

Torque: 5.0lbs-in

Electrical

Voltage Rating: 300 VAC

Current Rating: 12

Wire Range Min / Max: 12-30AWG

Material

Insulator Body Material: Polyamide

Contact Block Material: Brass, Ni Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
