EB449H Series - Spring - Pluggable - Lever - 5.08mm

Request Sample Request 3D File

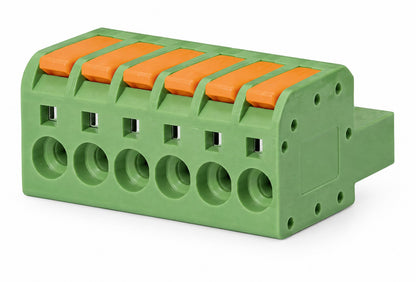

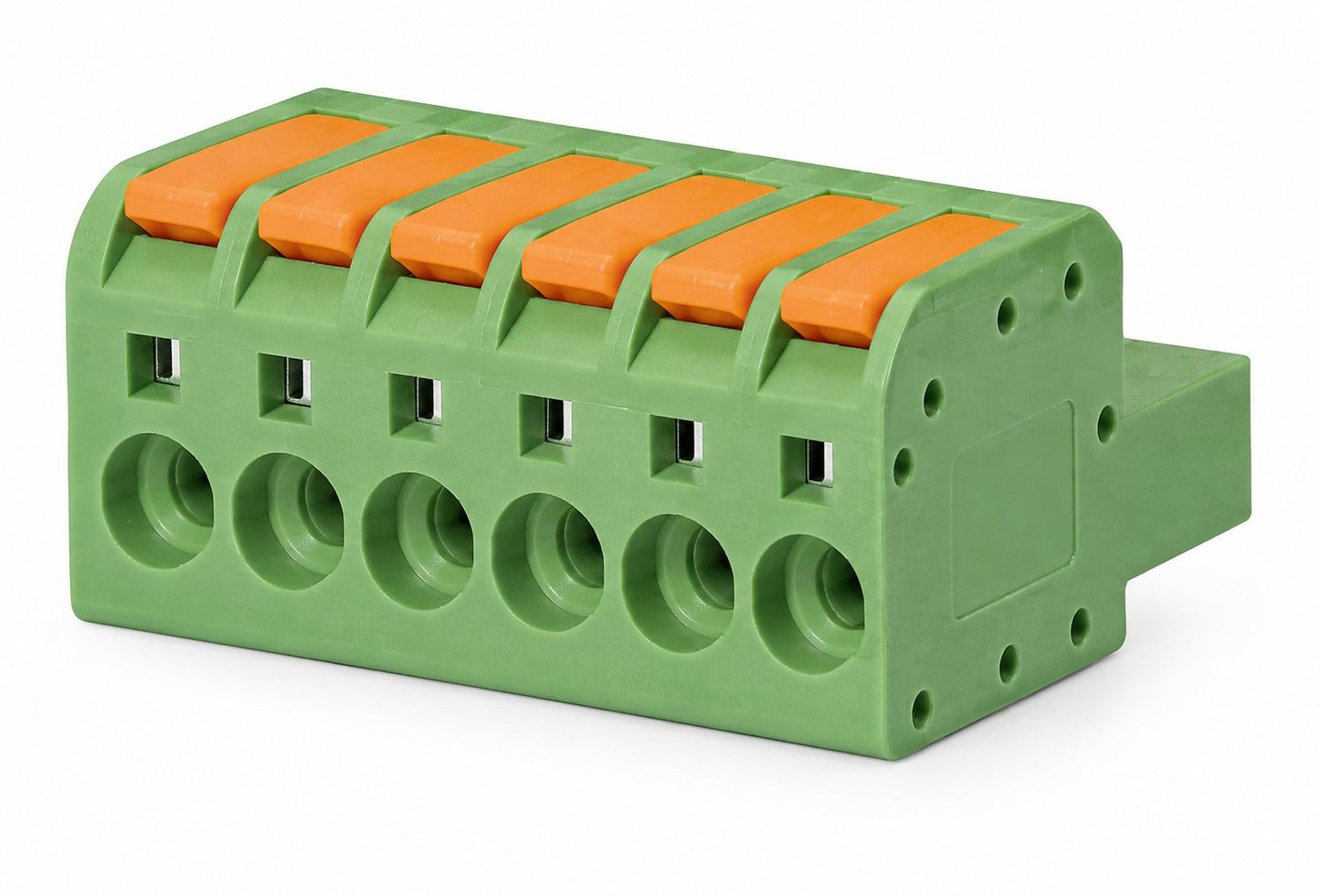

EB449H-XX-X00 Pluggable connector, spring connection, 5.08mm centerline with a finger friendly lever that eliminates the need of a screwdriver. It has a voltage rating of 300 VAC and a current rating of 20 Amps. It accommodates wire sizes from 12–22 AWG. The insulator body is constructed from PBT. The wire retention spring is made of stainless steel.

Maximum number of positions 12

Centerline Spacing 5.08 mm Spacing

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-24AWG

Material

Insulator Body Material: PBT

Wire Retention Spring: Stainless Steel

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

EB1538 SERIES Pluggable Blocks

EB1538 Series - Screw Pluggable - Rising Cage (PRS/5.08mm)

AC1508 SERIES Pluggable Headers

AC1508 Series - Shrouded - (/5.08mm)

HC1508-XX-510 SERIES Pluggable Headers

HC1508-XX-510 Series - Shrouded - (/5.08mm)

HC1508-XX-520 SERIES Pluggable Headers

HC1508-XX-520 Series - Shrouded - (/5.08mm)

HC1508-XX-X0X SERIES Pluggable Headers

HC1508-XX-X0X Series - Shrouded - (/5.08mm)

VC1508-XX-510 SERIES Pluggable Headers

VC1508-XX-510 Series - Shrouded - (/5.08mm)

VC1508-XX-520 SERIES Pluggable Headers

VC1508-XX-520 Series - Shrouded - (/5.08mm)

VC1508-XX-X0X SERIES Pluggable Headers

VC1508-XX-X0X Series - Shrouded - (/5.08mm)

AO1508 SERIES Pluggable Headers

AO1508 Series - Shrouded - (/5.08mm)

HO1508-XX-X0X SERIES Pluggable Headers

HO1508-XX-X0X Series - Shrouded - (/5.08mm)

HO1508-XX-X20 SERIES Pluggable Headers

HO1508-XX-X20 Series - Shrouded - (/5.08mm)

VO1508-XX-500 SERIES Pluggable Headers

VO1508-XX-500 Series - Shrouded - (/5.08mm)

VO1508-XX-520 SERIES Pluggable Headers

VO1508-XX-520 Series - Shrouded - (/5.08mm)
