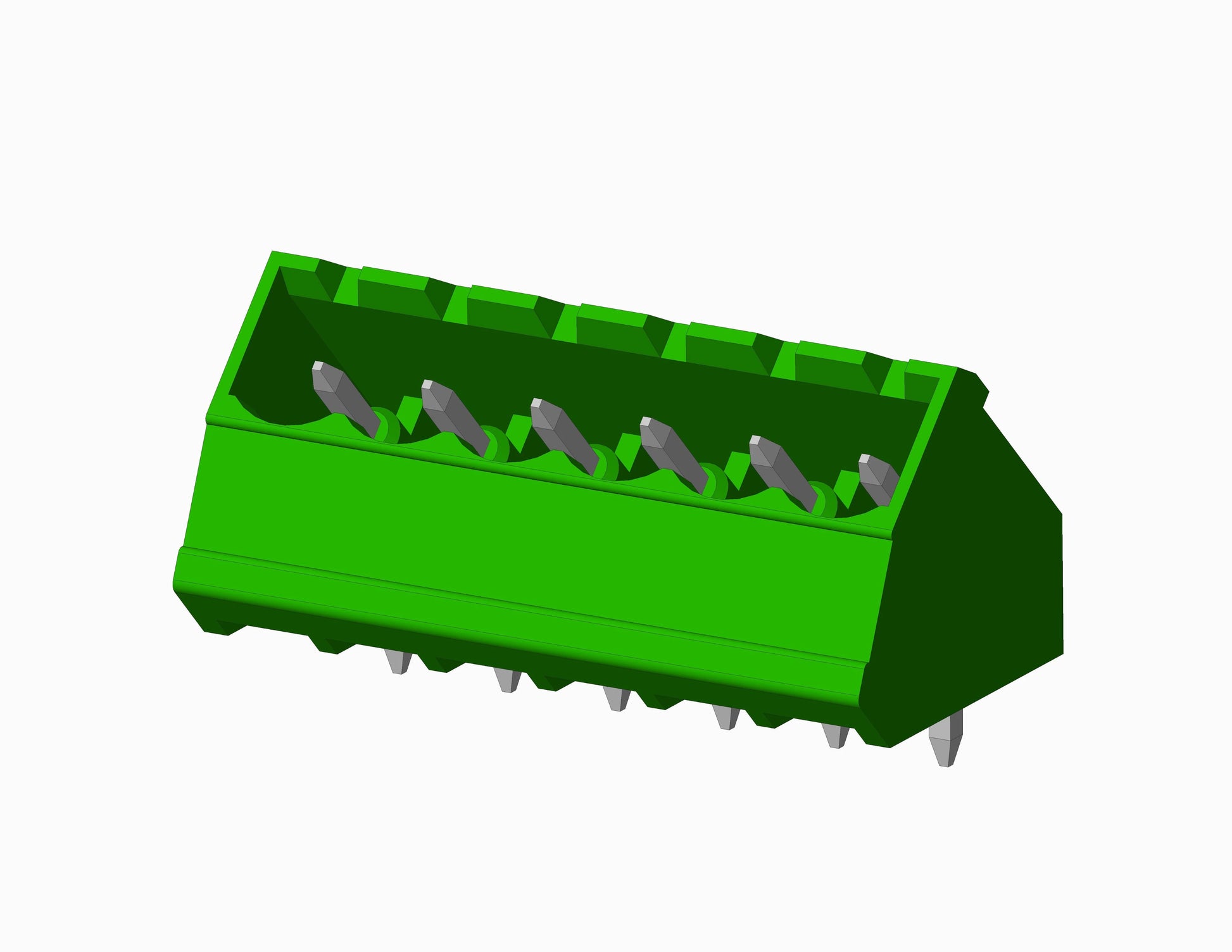

AC1508 Series - Shrouded - 5.08mm

Request Sample Request 3D File

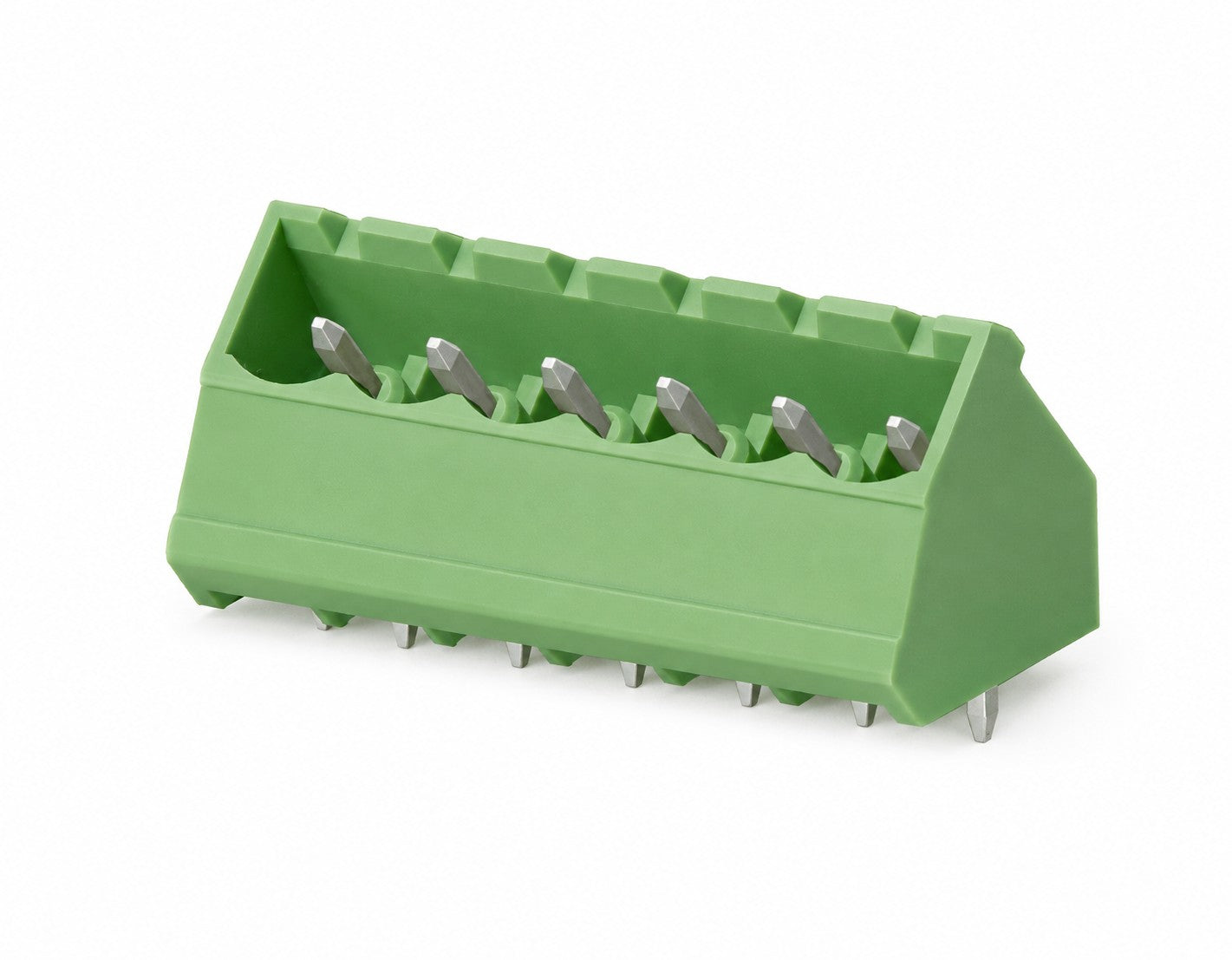

AC1508 Pluggable Headers. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from : Polyamide, UL 94V-0. Feature: Angled Closed.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material : Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material Copper, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
