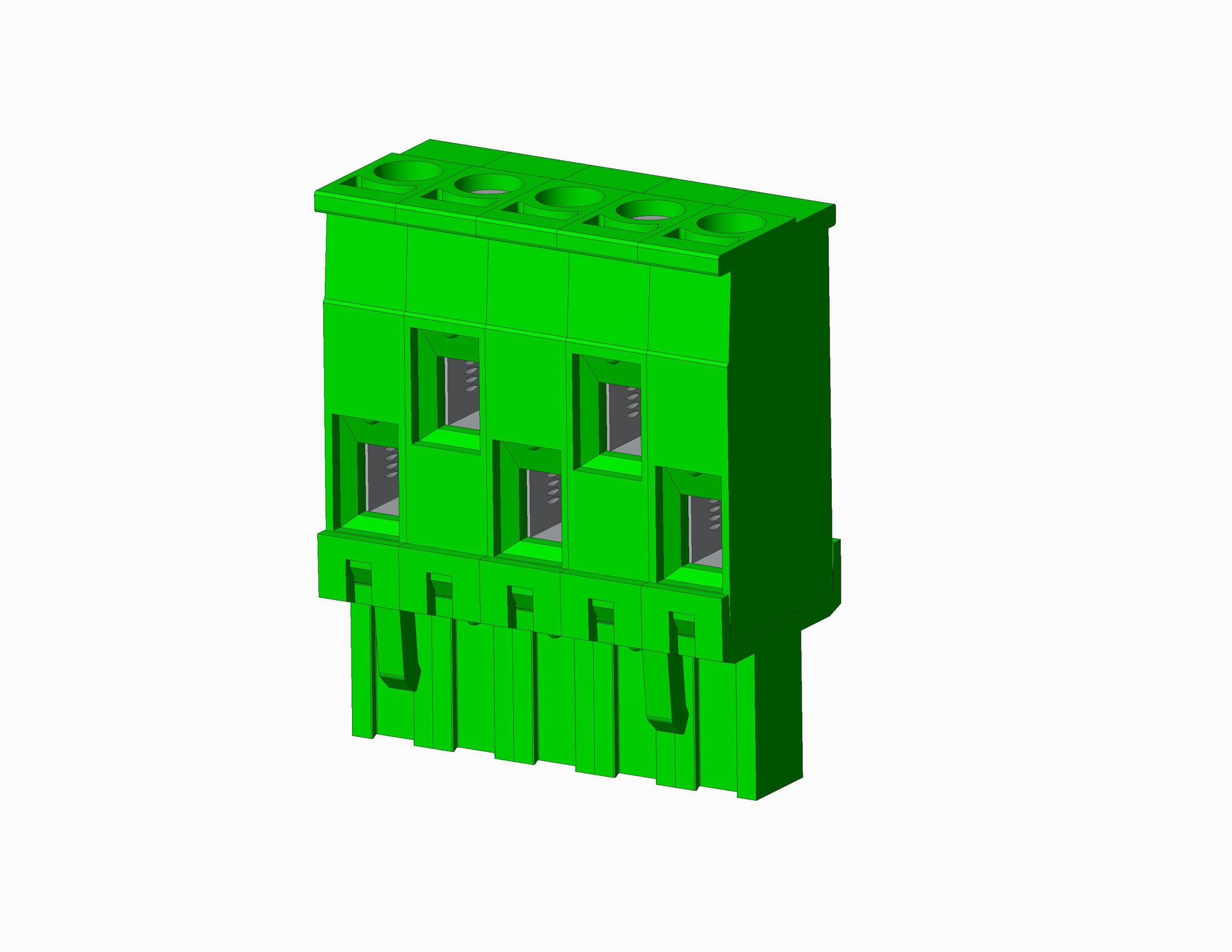

EB1518A Series - Screw - Pluggable - Rising Cage - 5.08mm

Request Sample Request 3D File

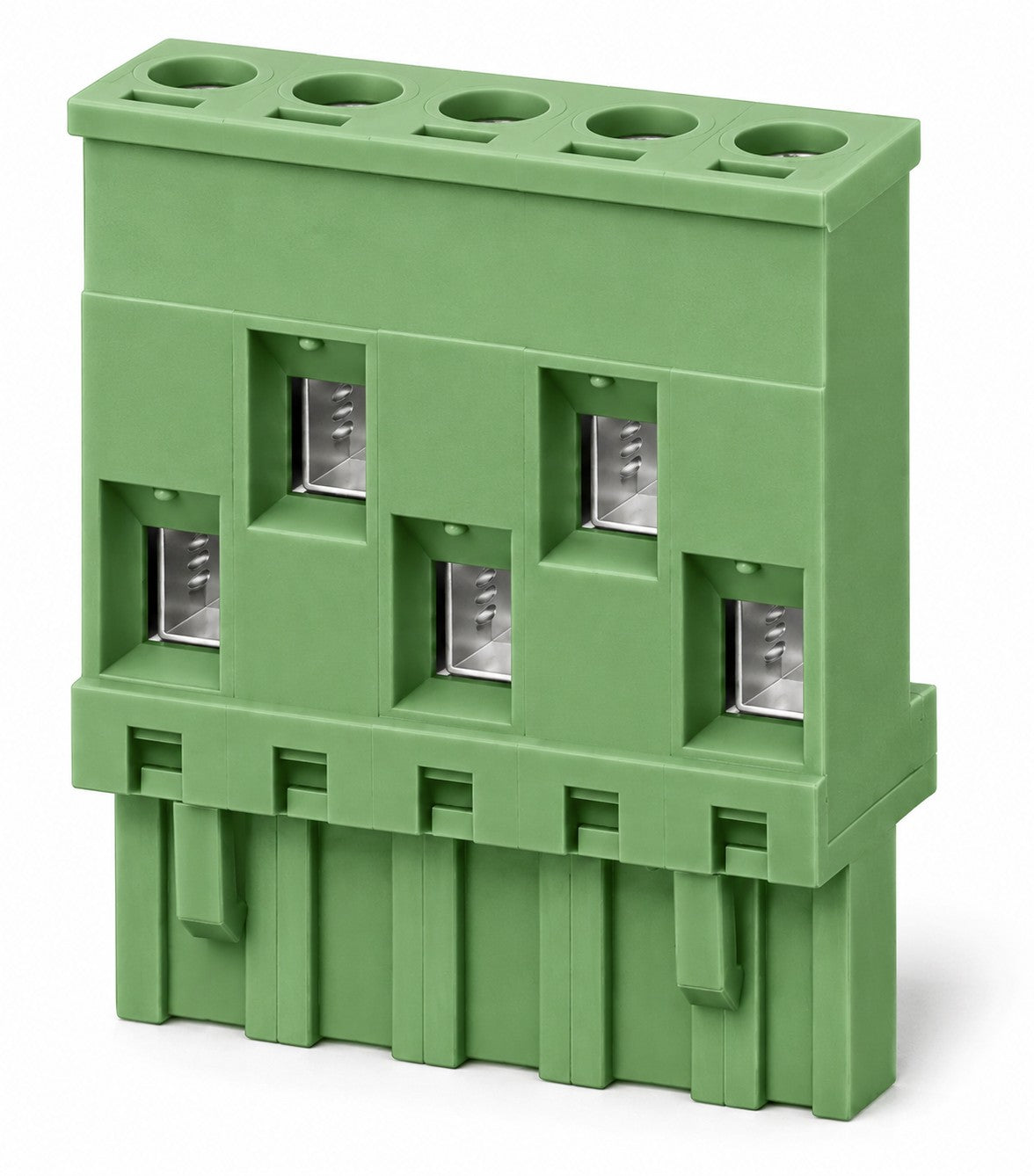

EB1518A Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-24AWG. It includes up to 24 positions. The torque rating is 4.0 lbs-in max. The contact block is made of Brass, (CuZn). It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-24AWG

Mechanical

Torque 4.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, (CuZn)

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

VC1508-XX-510 SERIES Pluggable Headers

VC1508-XX-510 Series - Shrouded - (/5.08mm)

VC1508-XX-520 SERIES Pluggable Headers

VC1508-XX-520 Series - Shrouded - (/5.08mm)

VC1508-XX-X0X SERIES Pluggable Headers

VC1508-XX-X0X Series - Shrouded - (/5.08mm)

HC1508-XX-510 SERIES Pluggable Headers

HC1508-XX-510 Series - Shrouded - (/5.08mm)

HC1508-XX-520 SERIES Pluggable Headers

HC1508-XX-520 Series - Shrouded - (/5.08mm)

HC1508-XX-X00 SERIES Pluggable Headers

HC1508-XX-X00 Series - Shrouded - (/5.08mm)

VO1508-XX-500 SERIES Pluggable Headers

VO1508-XX-500 Series - Shrouded - (/5.08mm)

VO1508-XX-520 SERIES Pluggable Headers

VO1508-XX-520 Series - Shrouded - (/5.08mm)

HO1508-XX-X00 SERIES Pluggable Headers

HO1508-XX-X00 Series - Shrouded - (/5.08mm)

HO1508-XX-X20 SERIES Pluggable Headers

HO1508-XX-X20 Series - Shrouded - (/5.08mm)

Additional Mating Pairs

AC1508 SERIES Pluggable Headers

AC1508 Series - Shrouded - (/5.08mm)

AO1508 SERIES Pluggable Headers

AO1508 Series - Shrouded - (/5.08mm)

EB1538 SERIES Pluggable Blocks

EB1538 Series - Screw Pluggable - Rising Cage (PRS/5.08mm)
