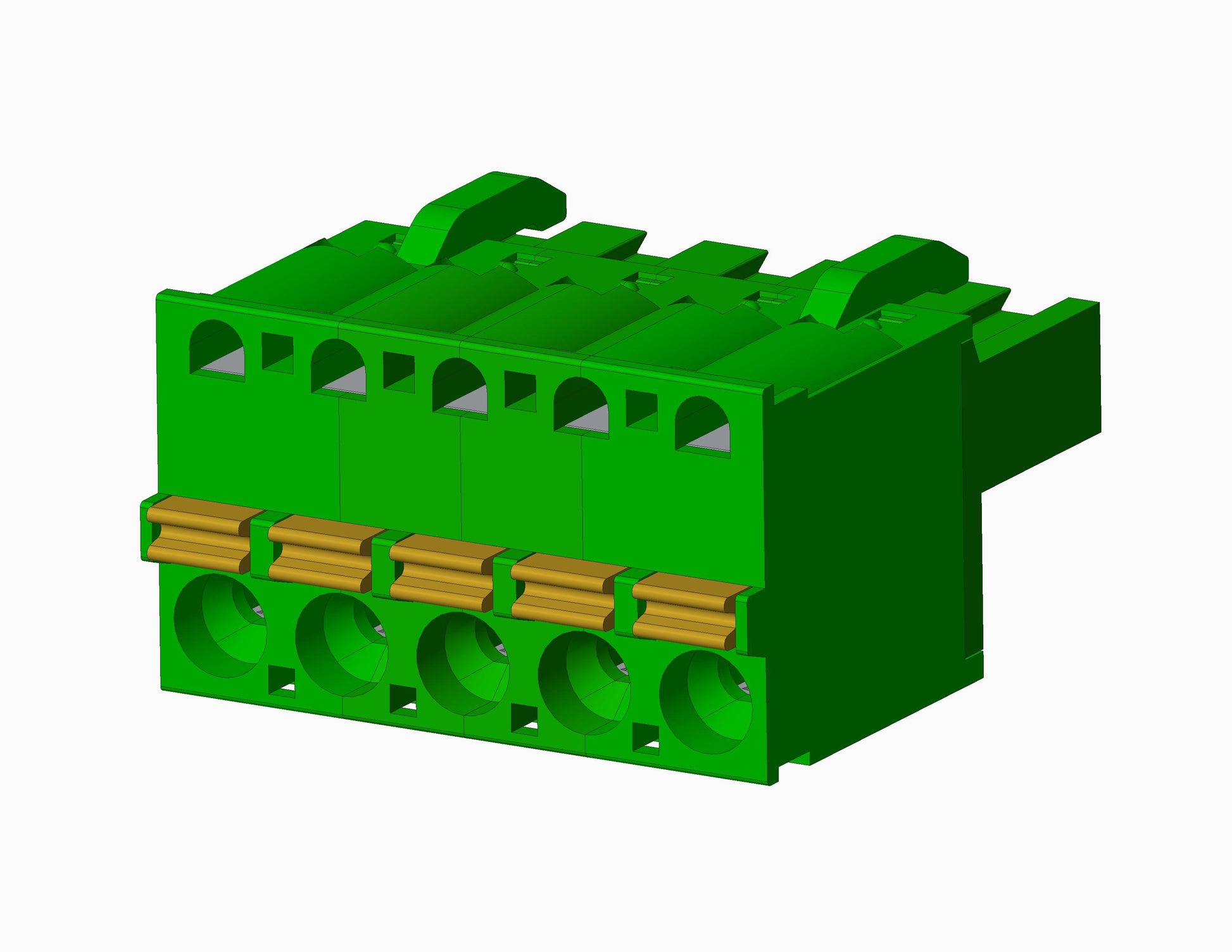

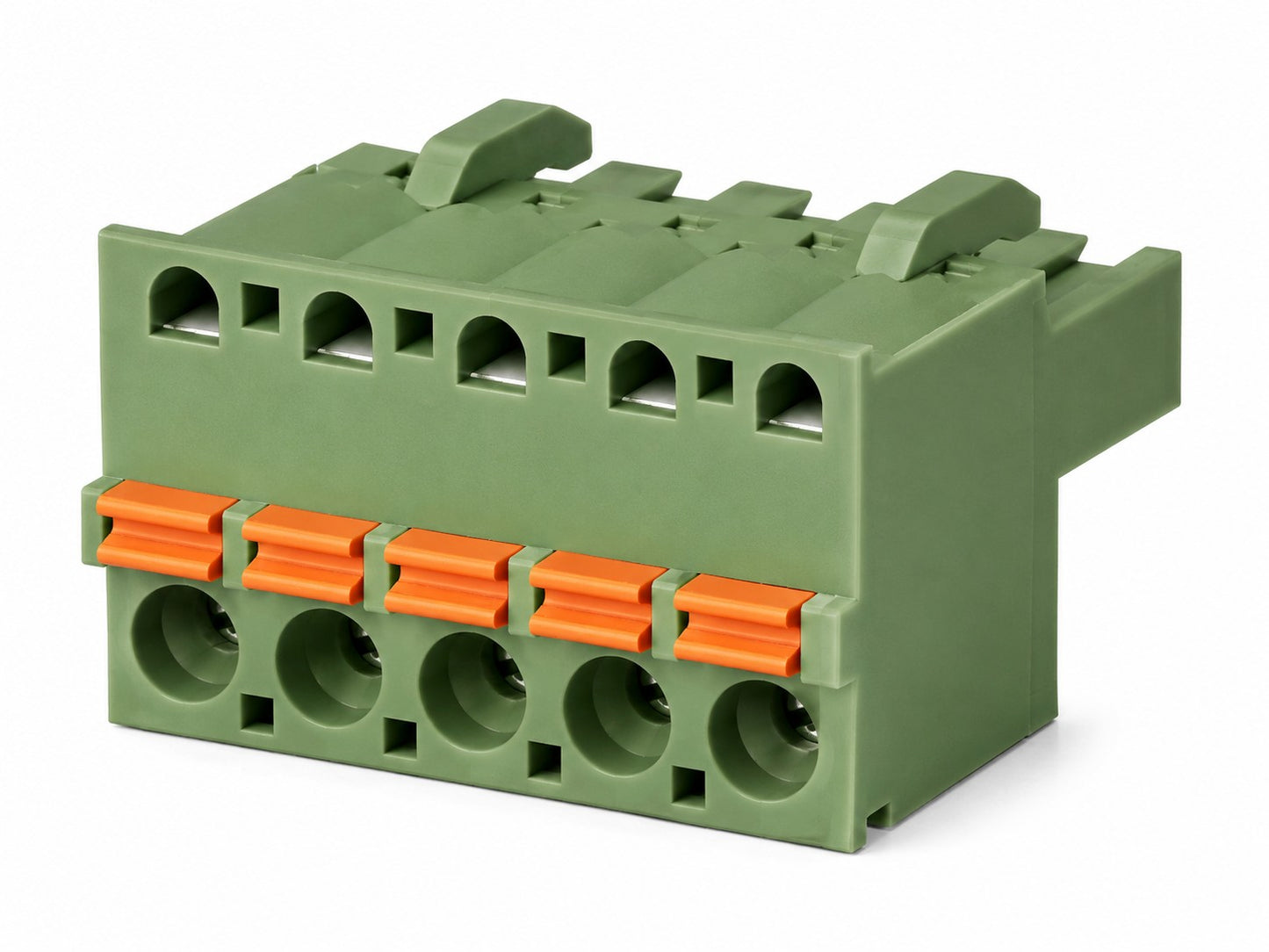

Name: EB454 SERIES Push-Button Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Euro Style Terminal Blocks > Spring > Pluggable > Push-Button > Standard (5mm-5.08mm) > EB454

Approvals

1 1

Standard

EB454 Series - Spring - Pluggable - Push-Button - 5.08mm

Request Sample Request 3D File

EB454 Push-Button Pluggable Block. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: Hook on Up Side.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
