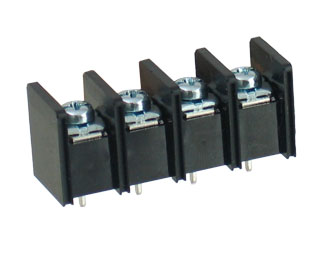

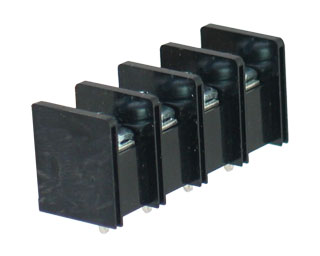

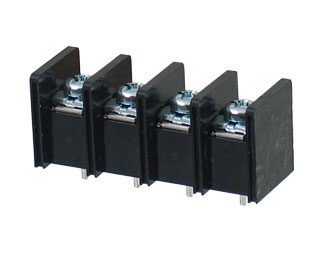

7200 SERIES Barrier Blocks

Maximum number of positions: 24

Centerline Spacing: 0.437" (11.10mm)

FEATURE:

Centerline Contacts

ELECTRICAL:

Voltage Rating: 600 VAC

Current Rating: 30 Amps

Wire Range Min / Max: 10-22AWG

MECHANICAL:

Torque: 10.0 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polycarbonate, UL 94V-0

Terminal Screw Size: #6-32

Terminal Screw Material: Please See PDF

Contact Solder Pin Material: Brass, Tin Plated

PRODUCT NOTES:

or Additional Hardware & Printing Options, see the product PDF or click here

DOWNLOAD

Download Product PDF

72XX-XX-X-XX.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

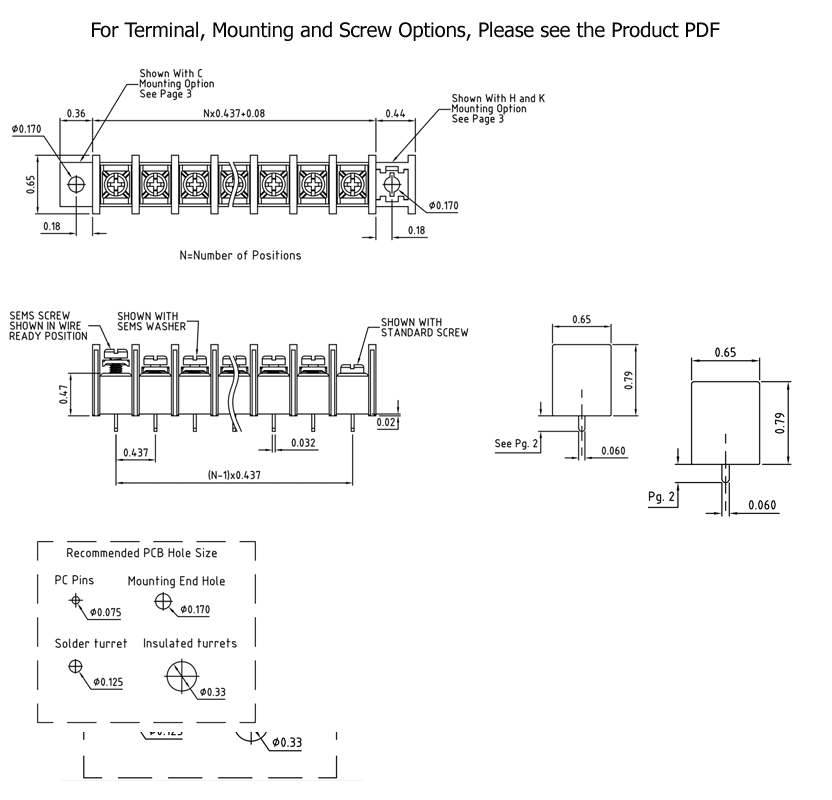

DIMENSIONAL DRAWING

N = Number of Positions
