Low Profile LED Lighting Connectors, Jumpers & Tools

LED Connectors

EB3100

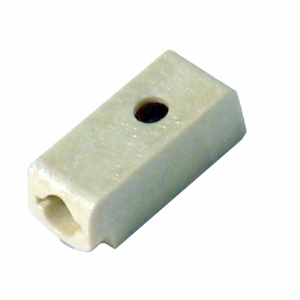

An extremely flat SMD connector — low 2.7mm height!

For the connection of LED modules!

Need Samples? Connect with EBY!

Use EBY's easy online form to tell us where to send your samples and tell us about your requirements!

Benefits, Features & Dimensions

Benefits

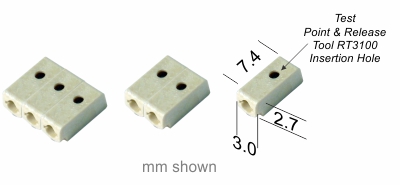

EBY Electro's LED-SMD lighting connectors are used extensively in solid state lighting (SSL) applications, including wire push-in and board-to-board connections. The EB3100 Series offers an extremely low 2.7mm height profile, minimizing shadowing effects.

Features:

Extremely Low Profile — 2.7mm
Minimizes Shadowing Effect
1, 2 & 3 Pole Versions Available

150V, 3A, 22-26 AWG

3.0mm Centerline Spacing
Tape and Reel Packaging

Dimensions

Downloads & Tools

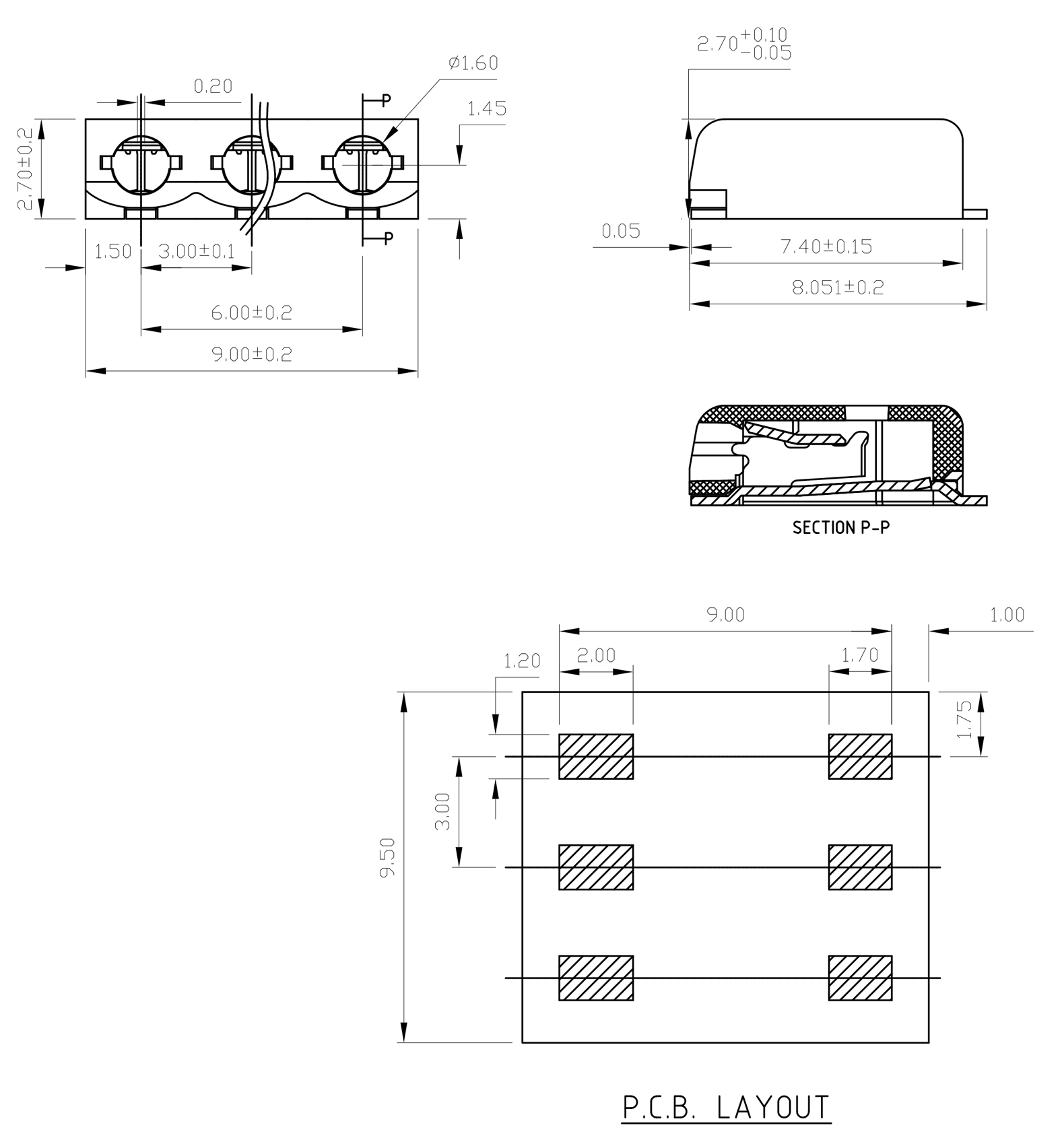

Dimensional Drawings for 1, 2 & 3 Pole Versions

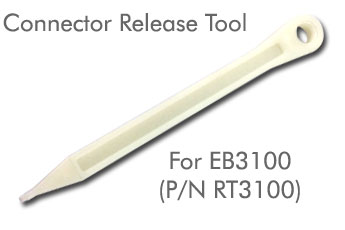

Special EB3100 LED-SMD Connector Release Tool make installation easy!
