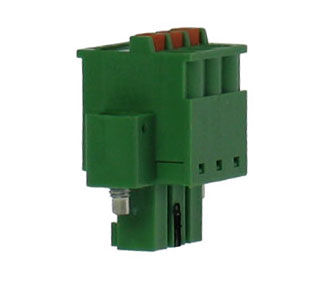

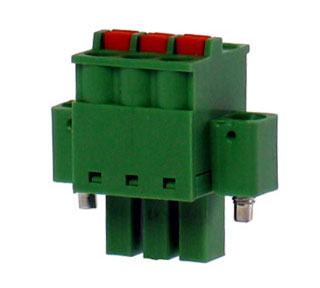

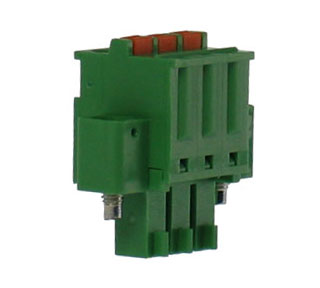

EB452M SERIES Screwless Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 3.81mm Spacing (0.150")

FEATURE:

Mountable

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 8 Amps

Wire Range Min / Max: 14-28AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: Brass, Tin Plated

Wire Retention Spring: Stainless Steel

Mounting Flange Screw: M2.5, Steel, Zinc Plated

Color: Green

PRODUCT NOTES:

Compatible with the following headers:
Angled Closed, Mountable AC1381M,
Horizontal, Closed with Mounting Flange HC1381M,
Vertical, Closed, Mountable VC1381M.

DOWNLOAD

Download Product PDF

EB452M-XX-X00.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

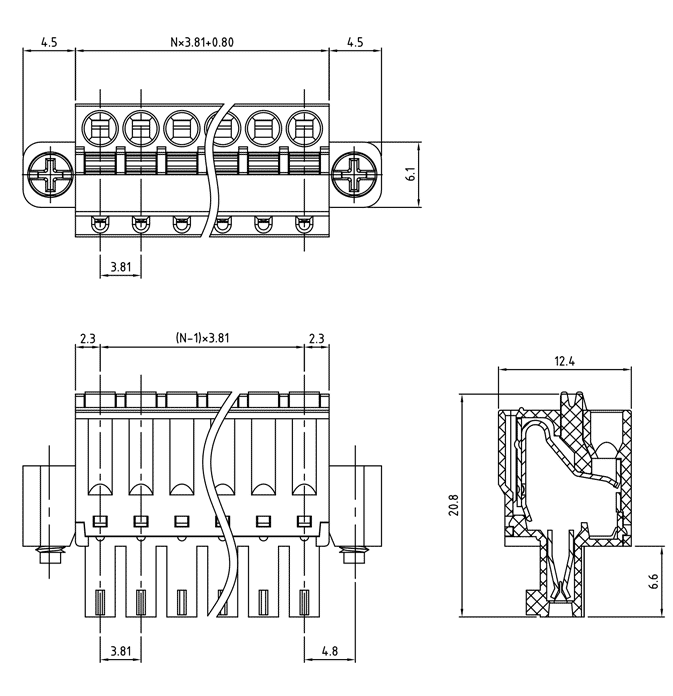

DIMENSIONAL DRAWING

N = Number of Positions
