Maximum number of positions: 24

Centerline Spacing: 3.81mm Spacing (0.150")

See DIMENSIONAL DRAWINGS

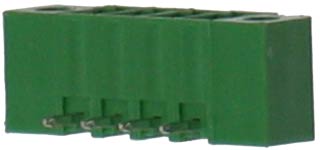

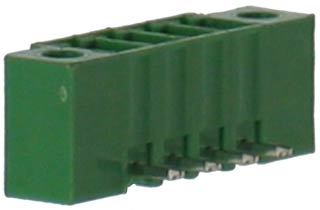

FEATURE:

Horizontal, Closed with Mounting Flange

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Copper, Tin Plated

Flange Screw Cavity: M2.5, Brass
