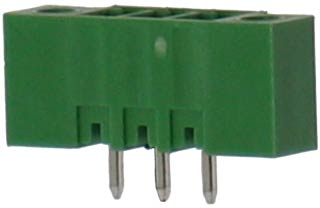

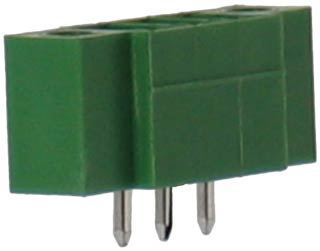

VC1381M SERIES Pluggable Headers

Maximum number of positions: 24

Centerline Spacing: 3.81mm Spacing (0.150")

FEATURE:

Vertical, Closed, Mountable

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Copper, Tin Plated

Mounting Flange Nut: M2.5, Brass

DOWNLOAD

Download Product PDF

VC1381M-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

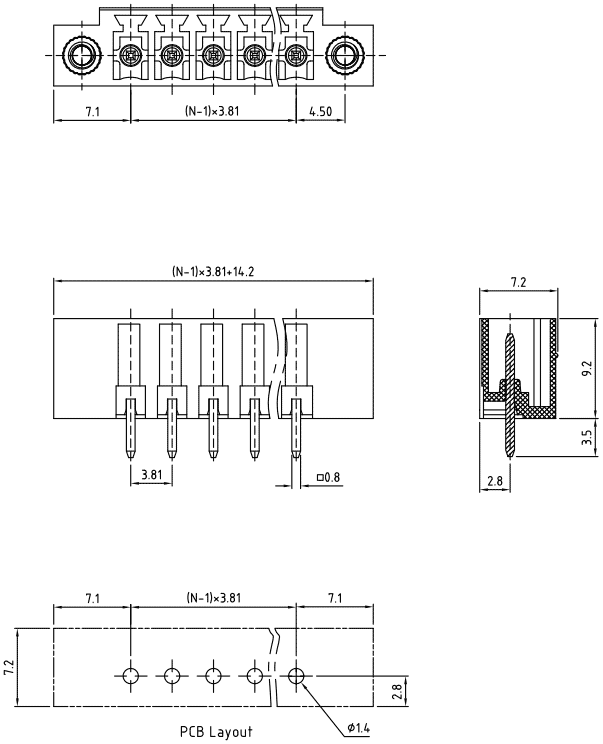

DIMENSIONAL DRAWING

N = Number of Positions
