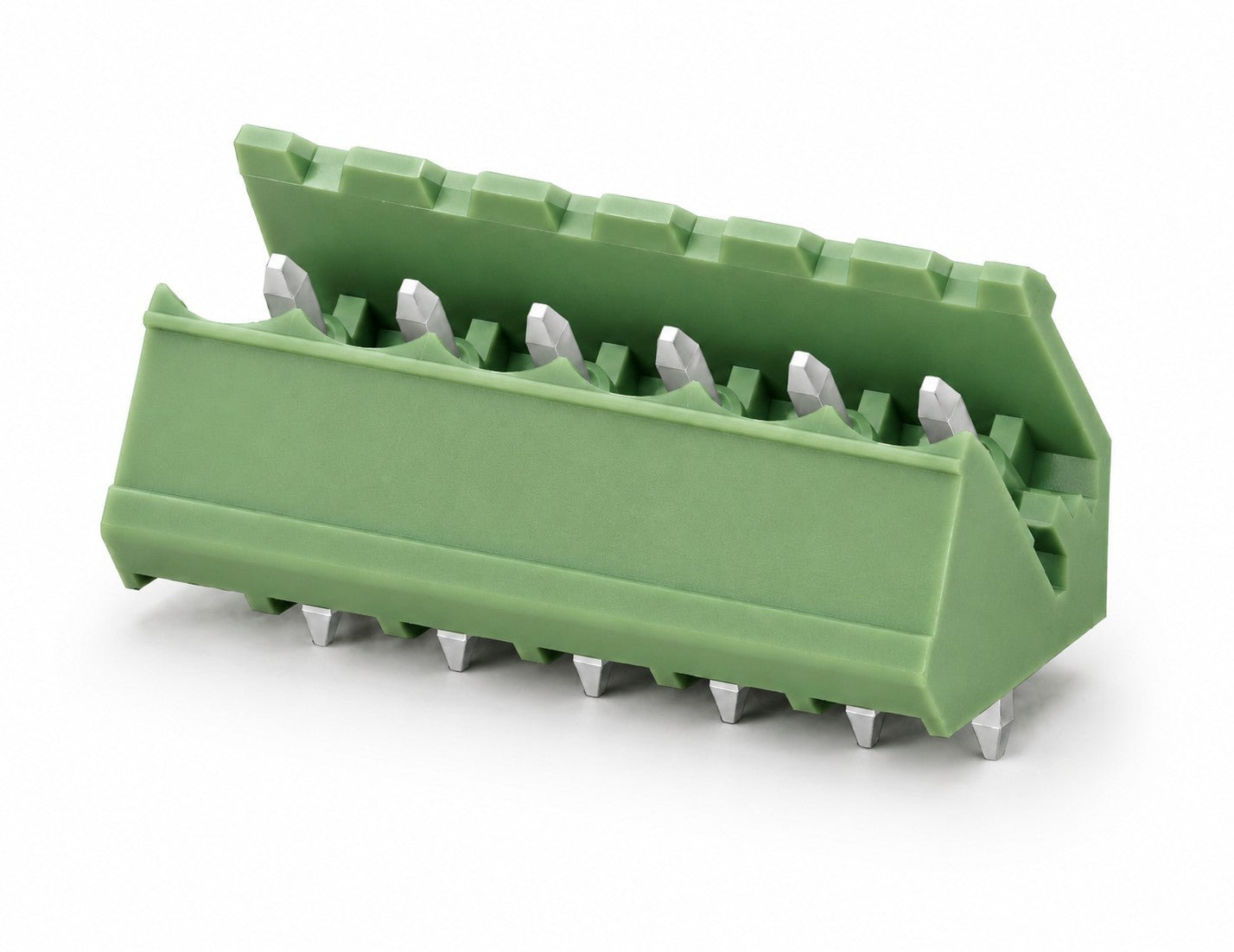

Name: AO1500 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Standard (5mm-5.08mm) > AO1500

Approvals

1 1

Standard

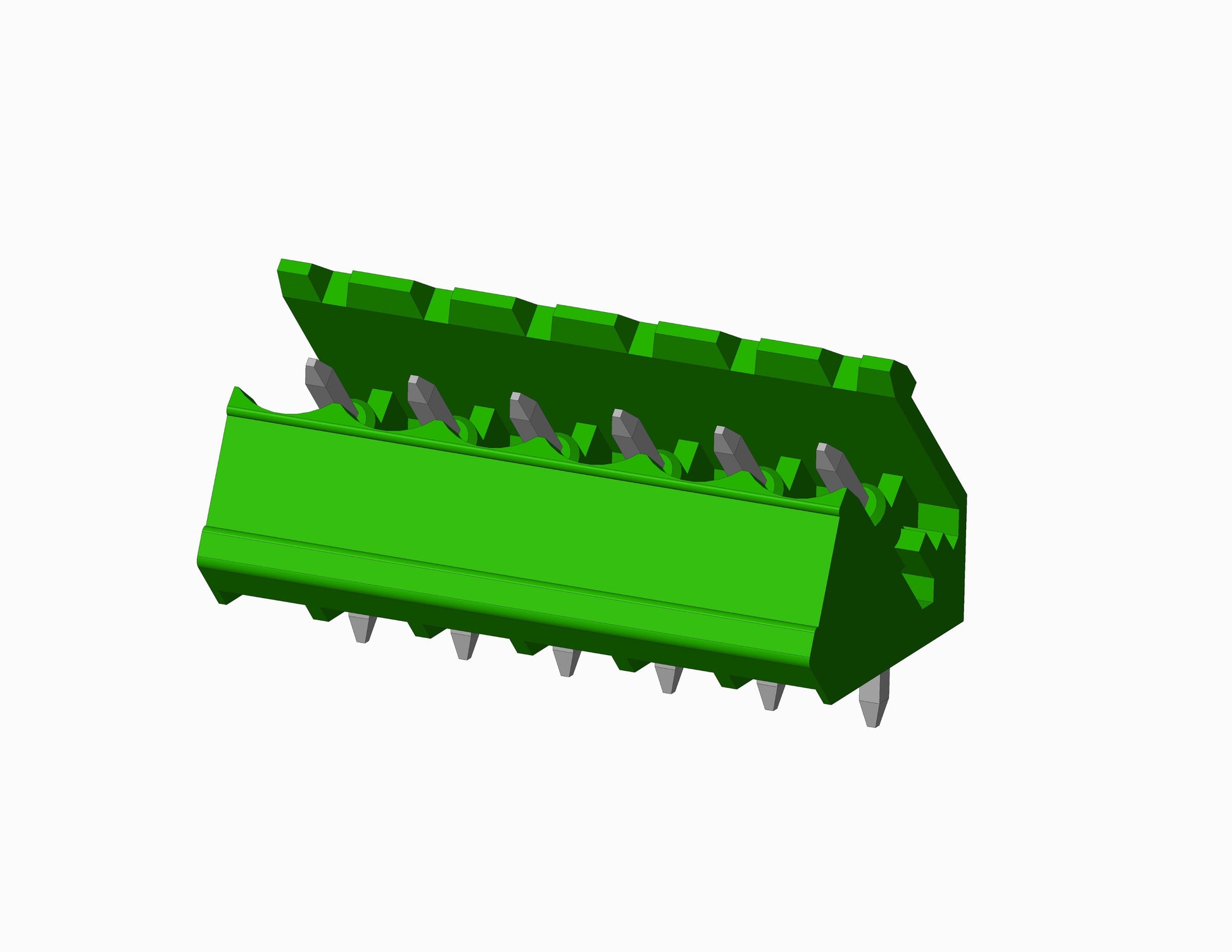

AO1500 Series - Shrouded - 5.0mm

Request Sample Request 3D File

AO1500 Pluggable Headers. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Angled Open.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Copper, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: AO1500 Series - Shrouded - (5.0mm)
