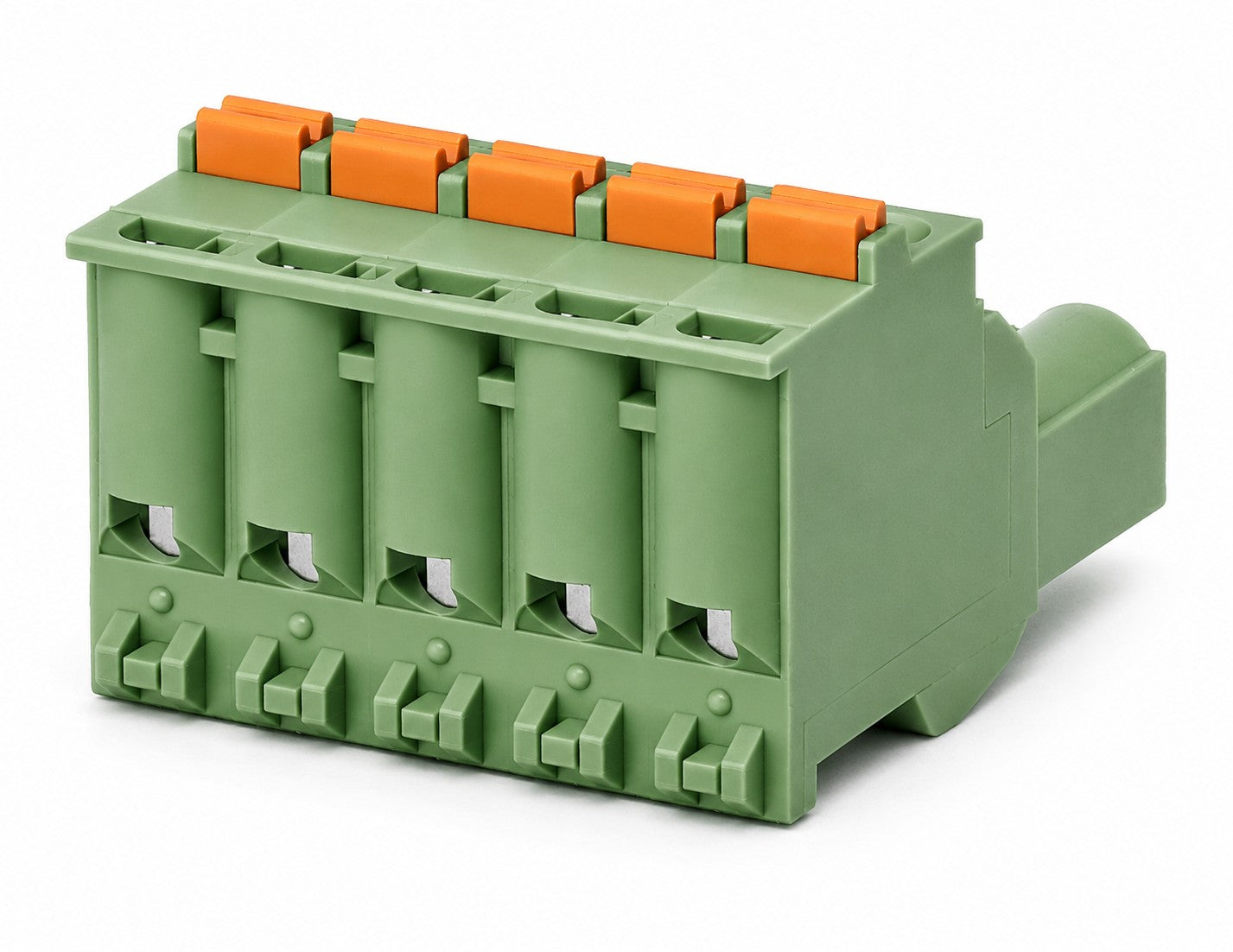

Name: EB455B SERIES Push-Button Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Terminal Blocks > Spring > Pluggable > Push-Button > Standard (5mm-5.08mm) > EB455B

Approvals

1 1

Standard

EB455B Series - Spring - Pluggable - Push-Button - 5.0mm

Request Sample Request 3D File

EB455B Push-Button Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 12-26AWG. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: with Hooks.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 12-26AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material PhBz, Tin Plated

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring Stainless Steel

Terminal Screw Size

Terminal Screw Material

Contact Block Material

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: EB455B Series - Spring - Pluggable - Push-Button (5.0mm)
