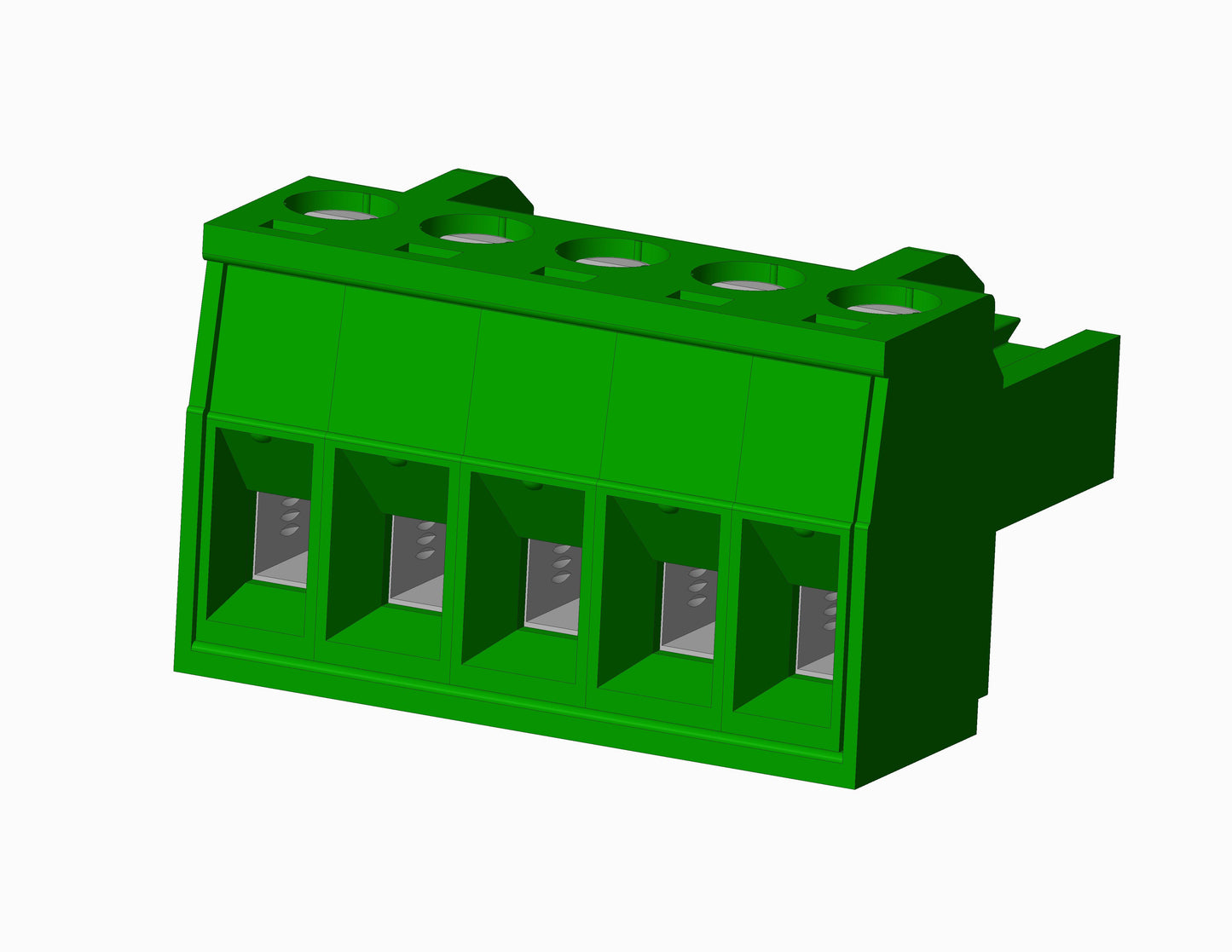

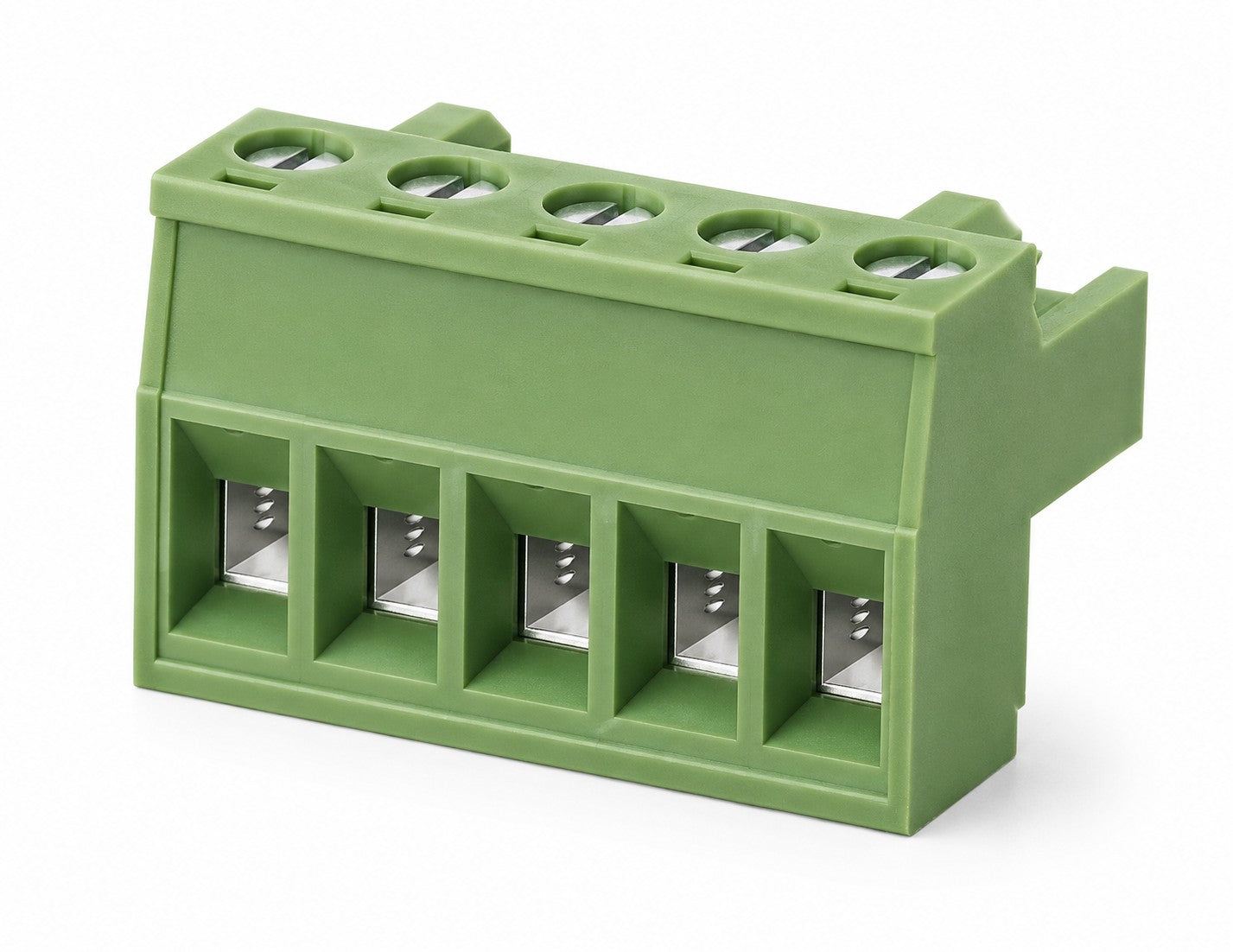

  • EB1501-XX-500 SERIES Pluggable Blocks
  • EB1501-XX-500 SERIES Pluggable Blocks dimensional drawing
1 1

Standard

EB1501-XX-500 Series - Screw - Pluggable - Rising Cage - 5.0mm

Request Sample Request 3D File

EB1501-XX-500 Pluggable Block. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-24AWG. It includes up to 24 positions. The torque rating is 5.0 lbs-in max. The contact block is made of Brass, Ni Plated. It features a terminal screw made of M3, Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-24AWG

Mechanical

Torque 5.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material Brass, Tin Plated

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size

Terminal Screw Material M3, Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, Ni Plated

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Green

Cover

Product Notes

Other options available, please let us know your requirements.
