EB1088-XX-X00 Series
QUOTE AND SAMPLES
Fill out my online form.

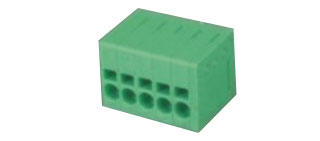

EB1088-XX-X00 SERIES Screwless Blocks

Maximum number of positions: 24

Centerline Spacing: 3.50mm Spacing (0.138")

FEATURE:

Horizontal Alignment

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 16-24AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Color: Please See PDF

DOWNLOAD

Download Product PDF

EB1088-XX-X00.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

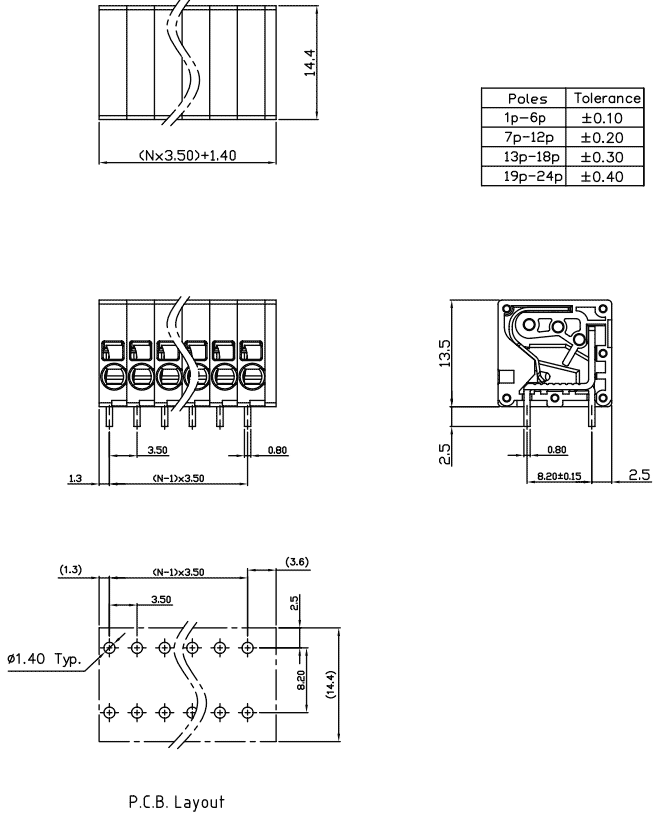

DIMENSIONAL DRAWING

N = Number of Positions
