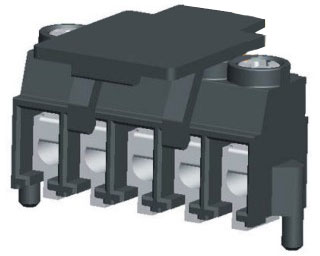

EB4510 SERIES Wire Guard Blocks

Maximum number of positions: 24

Centerline Spacing: 3.50mm Spacing (0.138")

ELECTRICAL:

Voltage Rating: 150 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 16-26AWG

MECHANICAL:

Torque: 2.0 lbs-in. Max.

Soldering Tempertures: 280°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: PA46, UL 94V-0 Suitable for Reflow

Terminal Screw Size: M2.0

Terminal Screw Material: Steel, Zinc Plated, Phil Slotted

Wire Guard Material: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Cover: PA46, UL 94V-0

DOWNLOAD

Download Product PDF

EB4510-XXDS-012.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

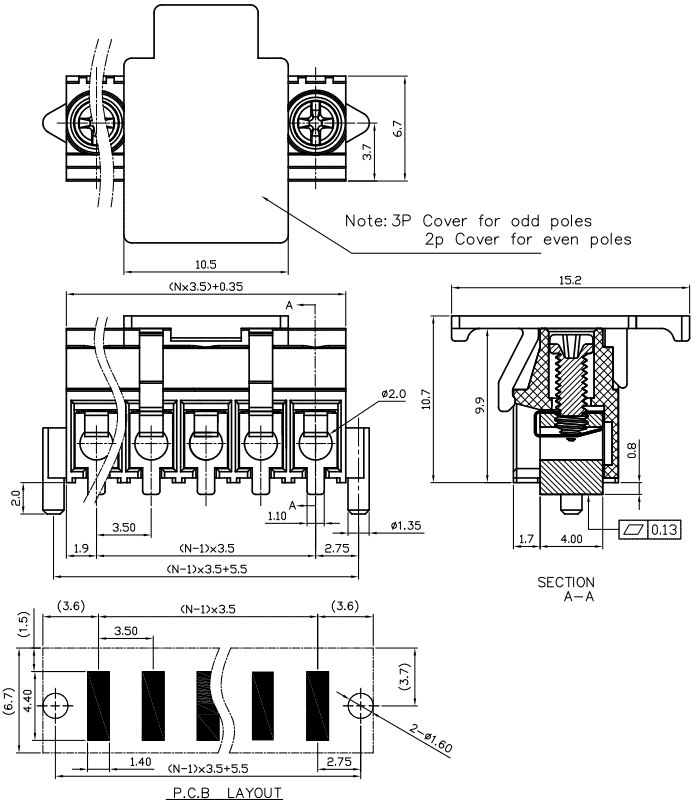

DIMENSIONAL DRAWING

N = Number of Positions
