Maximum number of positions: 24

Centerline Spacing: 3.50mm Spacing (0.138")

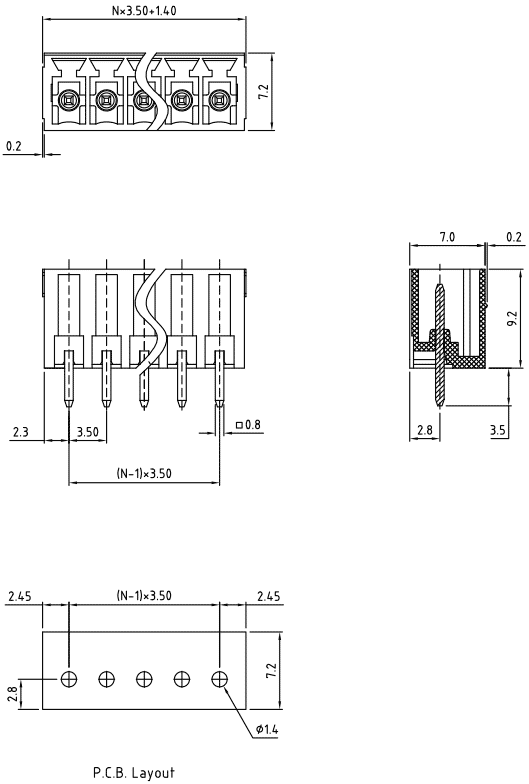

See DIMENSIONAL DRAWINGS

FEATURE:

Vertical, Closed

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Color: Blue

PRODUCT NOTES:

Compatible with the following blocks: EB1350, EB1350A, EB1350B, EB445, EB452
