Name: VC1350 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Compact (3.5mm-4.57mm) > VC1350

Approvals

1 1

Compact

VC1350 Series - Shrouded - 3.5mm

Request Sample Request 3D File

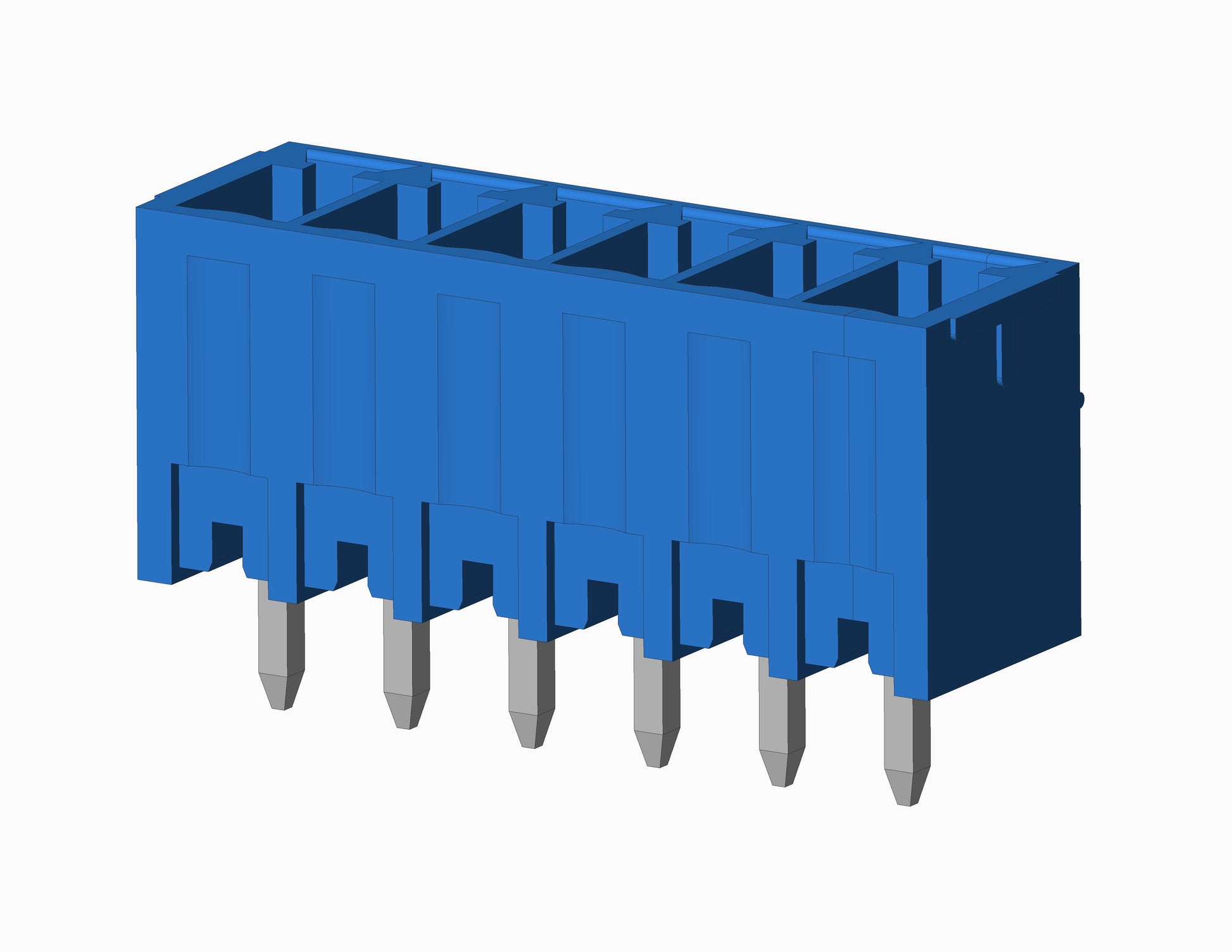

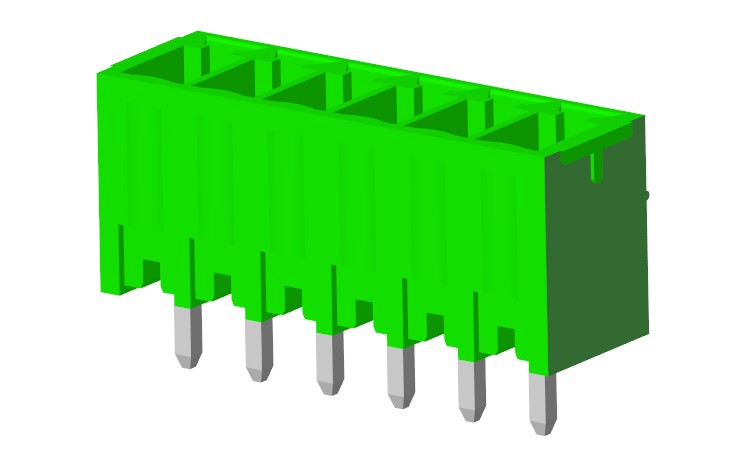

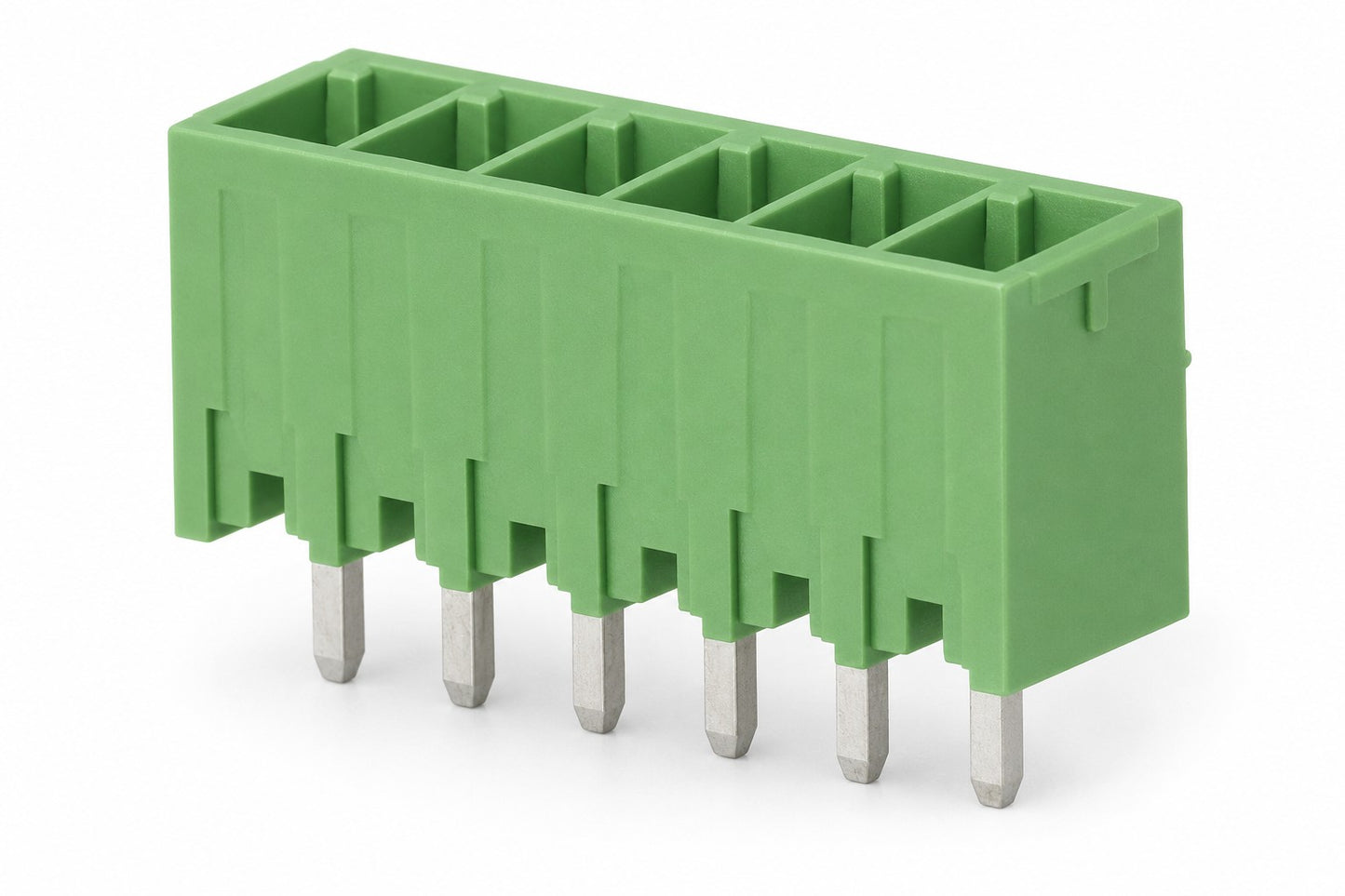

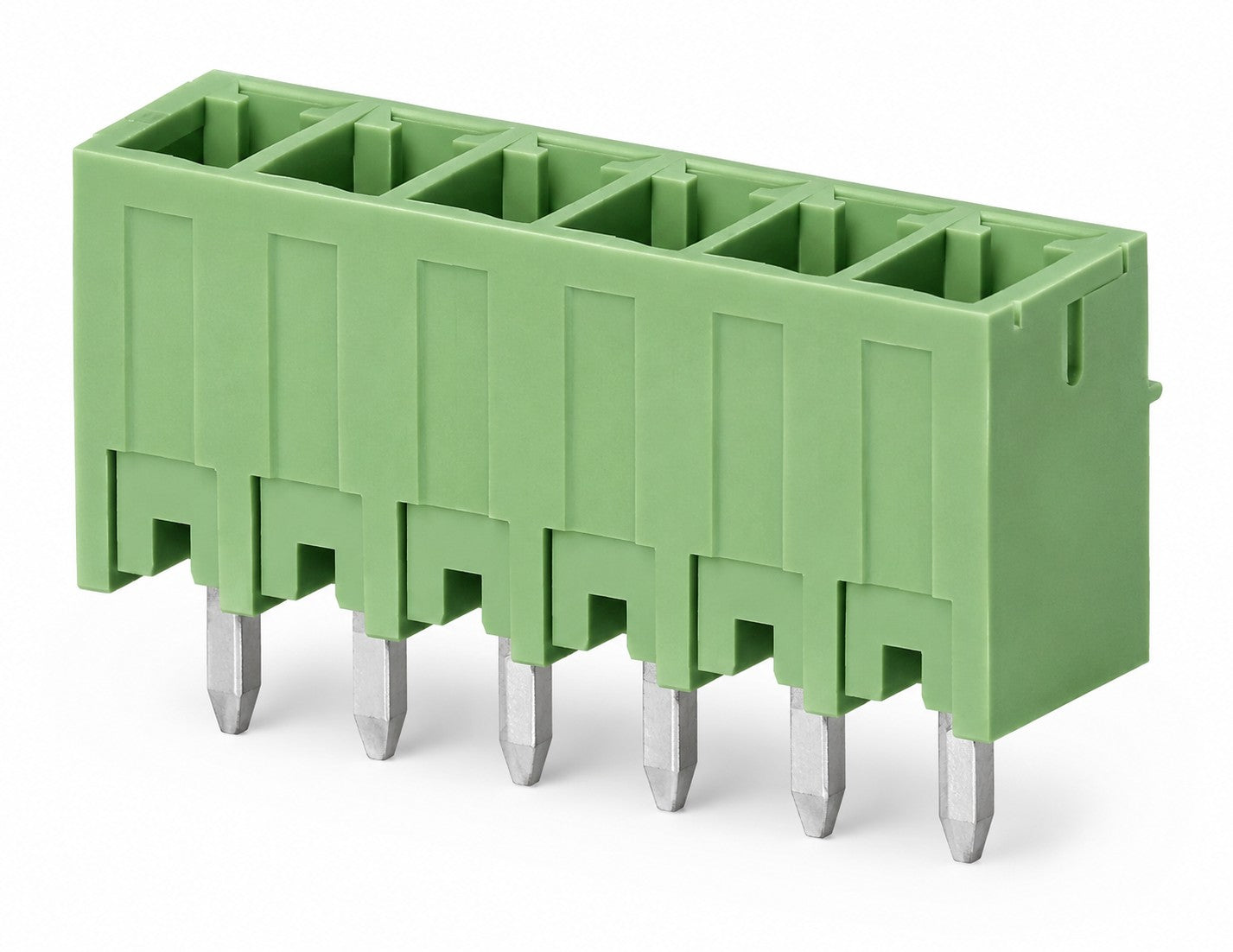

VC1350 Pluggable Headers. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Vertical, Closed.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Color: Blue

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
