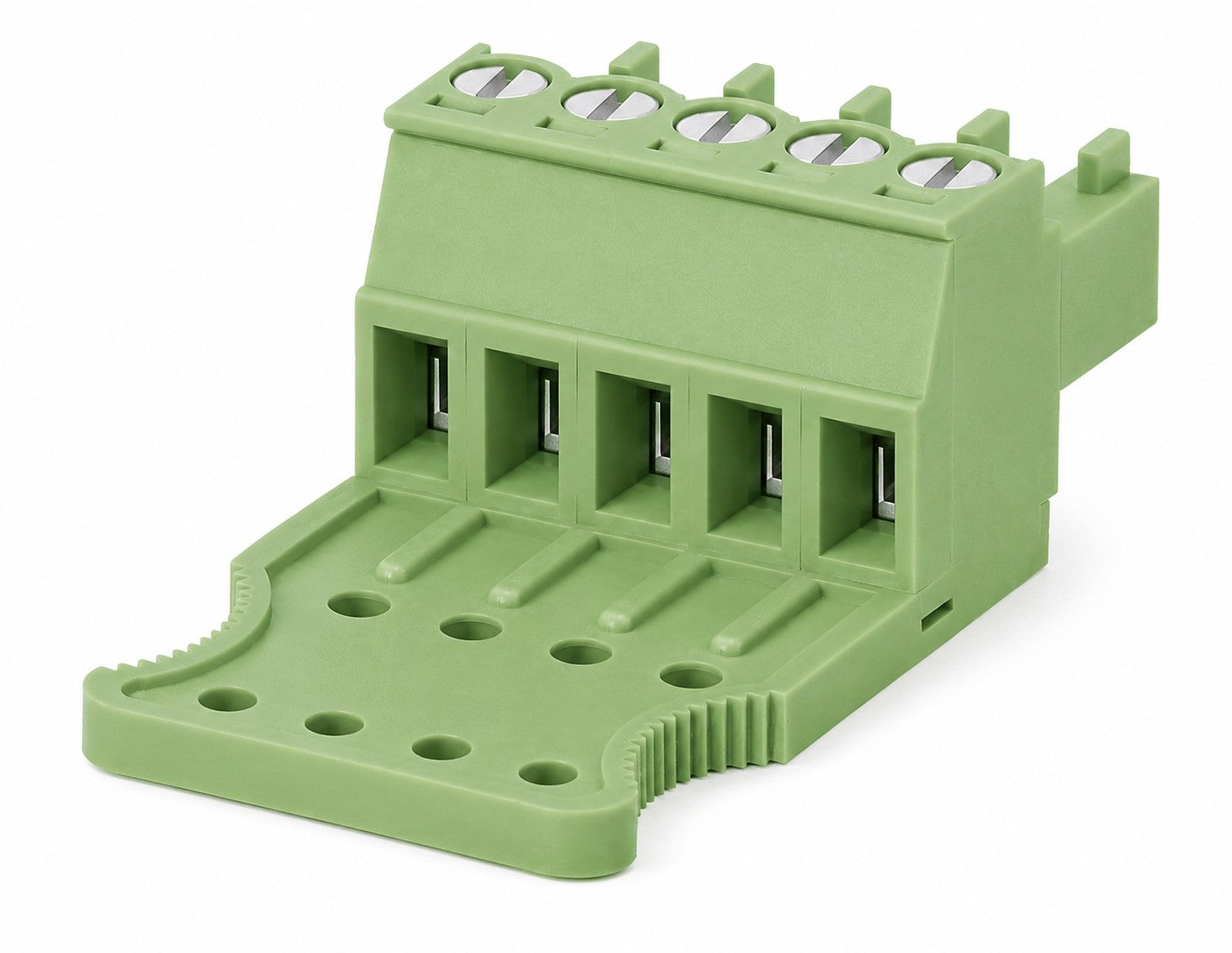

  • EB1350H-XX-X00 SERIES Pluggable Blocks
  • EB1350H-XX-X00 SERIES Pluggable Blocks dimensional drawing
1 1

Compact

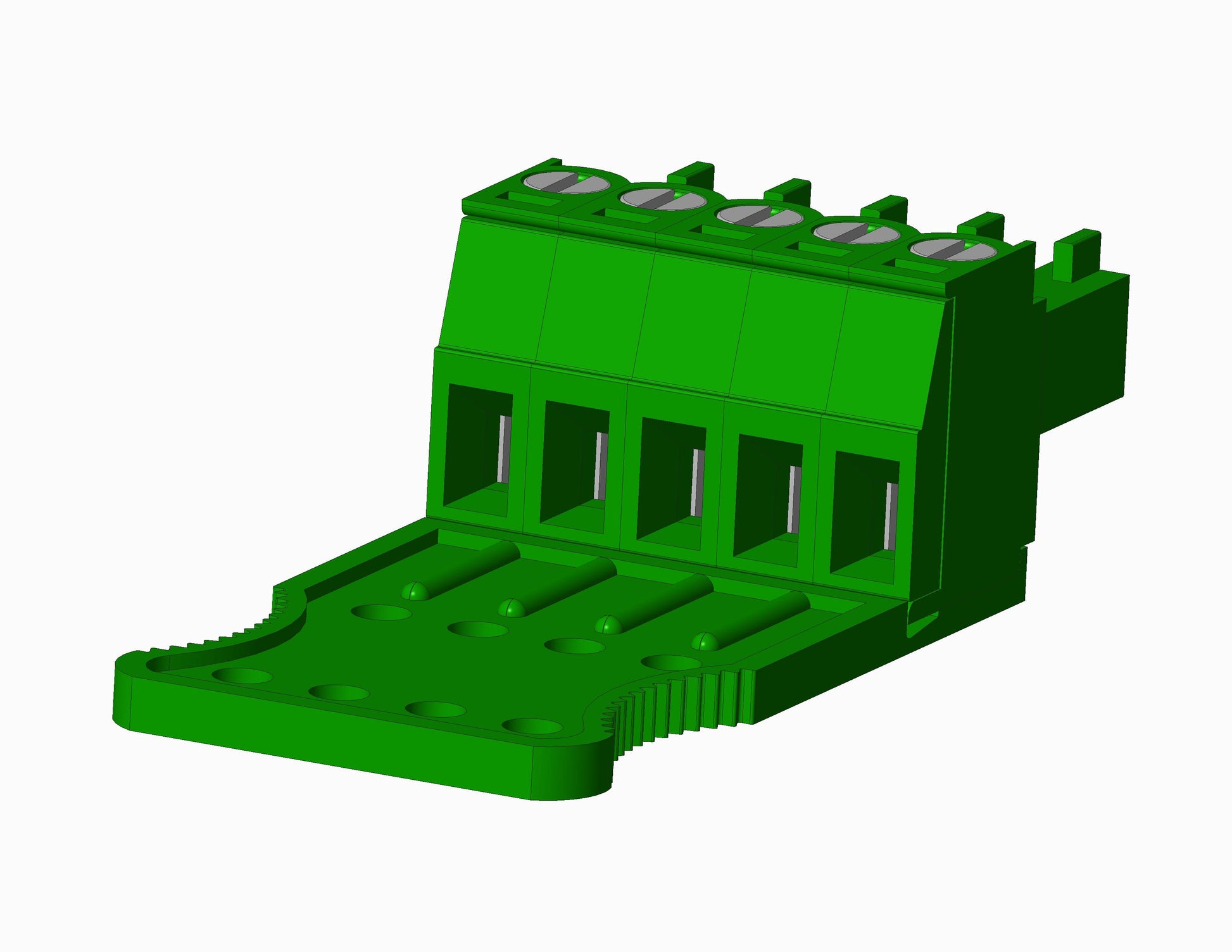

EB1350H-XX-X00 Series - Screw - Pluggable - Rising Cage - 3.5mm

Request Sample Request 3D File

EB1350H-XX-X00 Pluggable Block. It has a centerline spacing of 3.5mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 16-26AWG. It includes up to 24 positions. The torque rating is 3.0 lbs-in max. The contact block is made of Brass, (CuZn). It features a terminal screw made of Steel, Zinc Plated, "-" Slotted. The housing is constructed from Polyamide, UL 94V-0. Feature: with Easy Grip Handle.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 16-26AWG

Mechanical

Torque 3.0 lbs-in. Max.

Soldering Temperatures

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material PhBz (CuSn)

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M2.0

Terminal Screw Material Steel, Zinc Plated, "-" Slotted

Contact Block Material Brass, (CuZn)

Contact Solder Pin Material

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes
