Name: EB481-XX-502 SERIES Tool Required Pluggable Blocks
Brand: ebyelectro
Availability: InStock

Terminal Blocks | Spring | Pluggable | Tool Required >

Approvals

1 1

Power

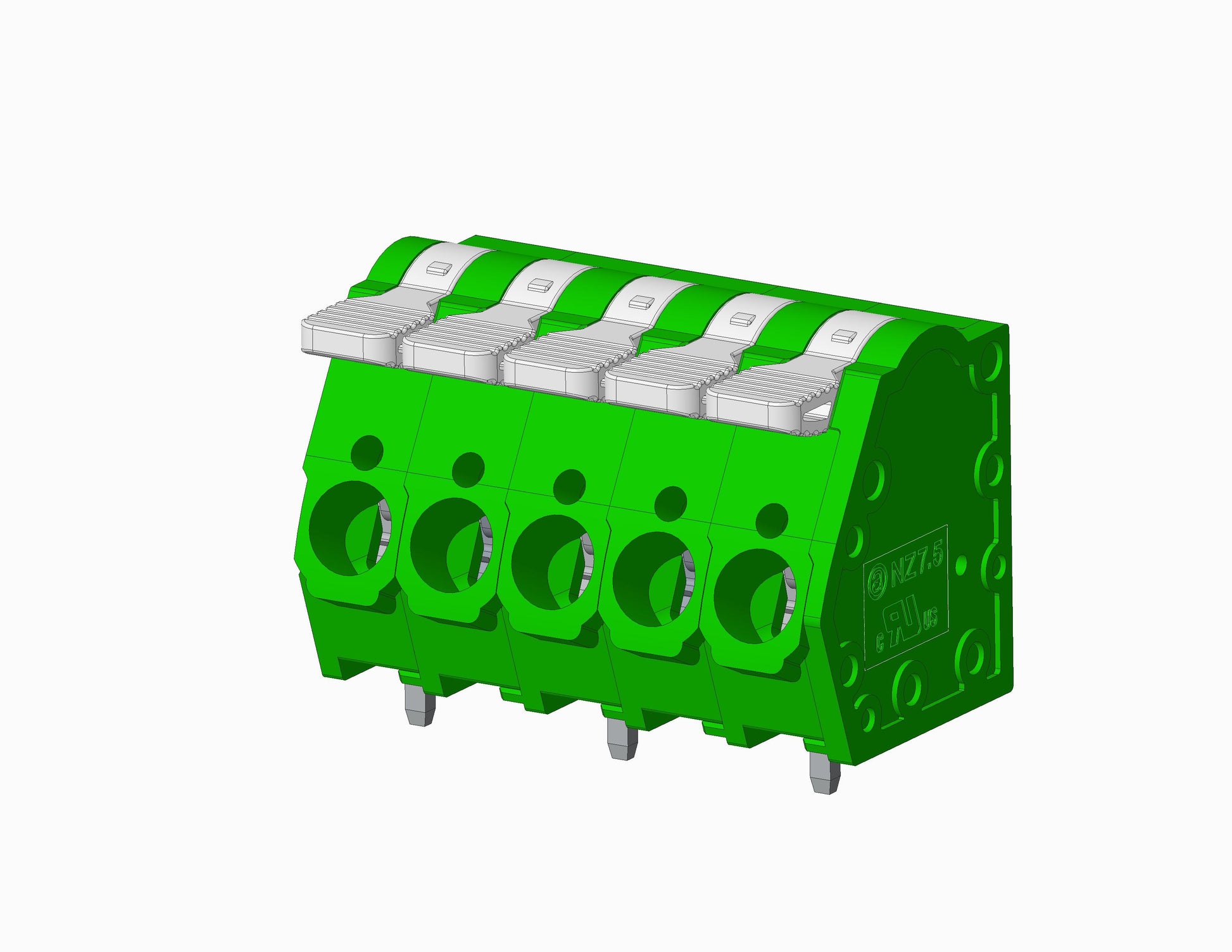

EB481-XX-502 Series - Spring - Pluggable - Tool Required - 7.5mm

Request Sample Request 3D File

EB481-XX-502 Tool Required Pluggable Block. It has a centerline spacing of 7.5mm. The voltage rating is 300 VAC. The current rating is 15 Amps. It accommodates wire sizes from 12-28AWG. It includes up to 16 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: With Post.

Maximum number of positions 16

Centerline Spacing 7.50mm Spacing (0.295")

Electrical

Voltage Rating 300 VAC

Current Rating 15 Amps

Wire Range Min / Max 12-28AWG

Mechanical

Torque YES

Soldering Temperatures YES

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Wire Retention Spring: Stainless Steel

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
