EB449HM Series - Spring - Pluggable - Lever - 5.08mm

Request Sample Request 3D File

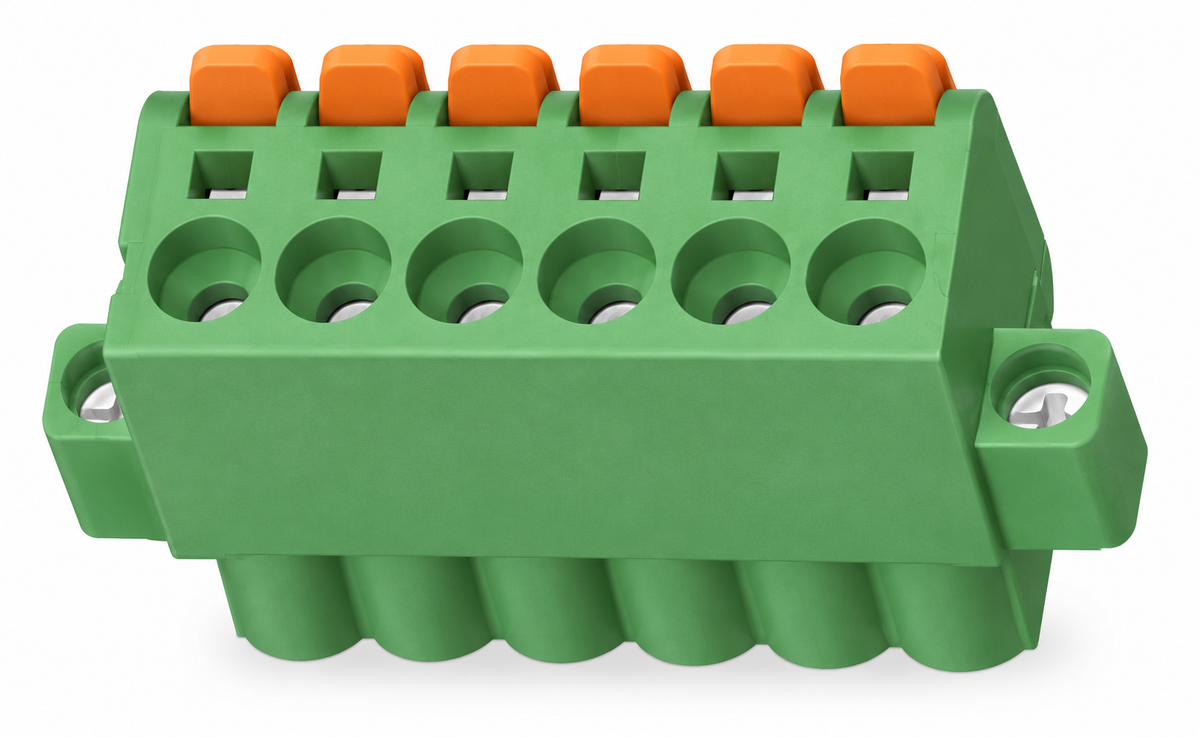

EB449HM Lever Pluggable Block. It has a centerline spacing of 5.08 mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12–24 AWG. Available in up to 12 positions. The contact clip is made of phosphor bronze, tin plated. The mounting flange screw is made of steel, zinc plated. The wire retention spring is made of stainless steel. The housing is constructed from PA66.

Maximum number of positions 12

Centerline Spacing 5.08 mm Spacing

Electrical

Voltage Rating: 300 VAC

Current Rating: 20

Wire Range Min / Max: 12-24AWG

Material

Insulator Body Material: PA66

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: Steel, Zinc Plated

Wire Retention Spring: Stainless Steel

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
