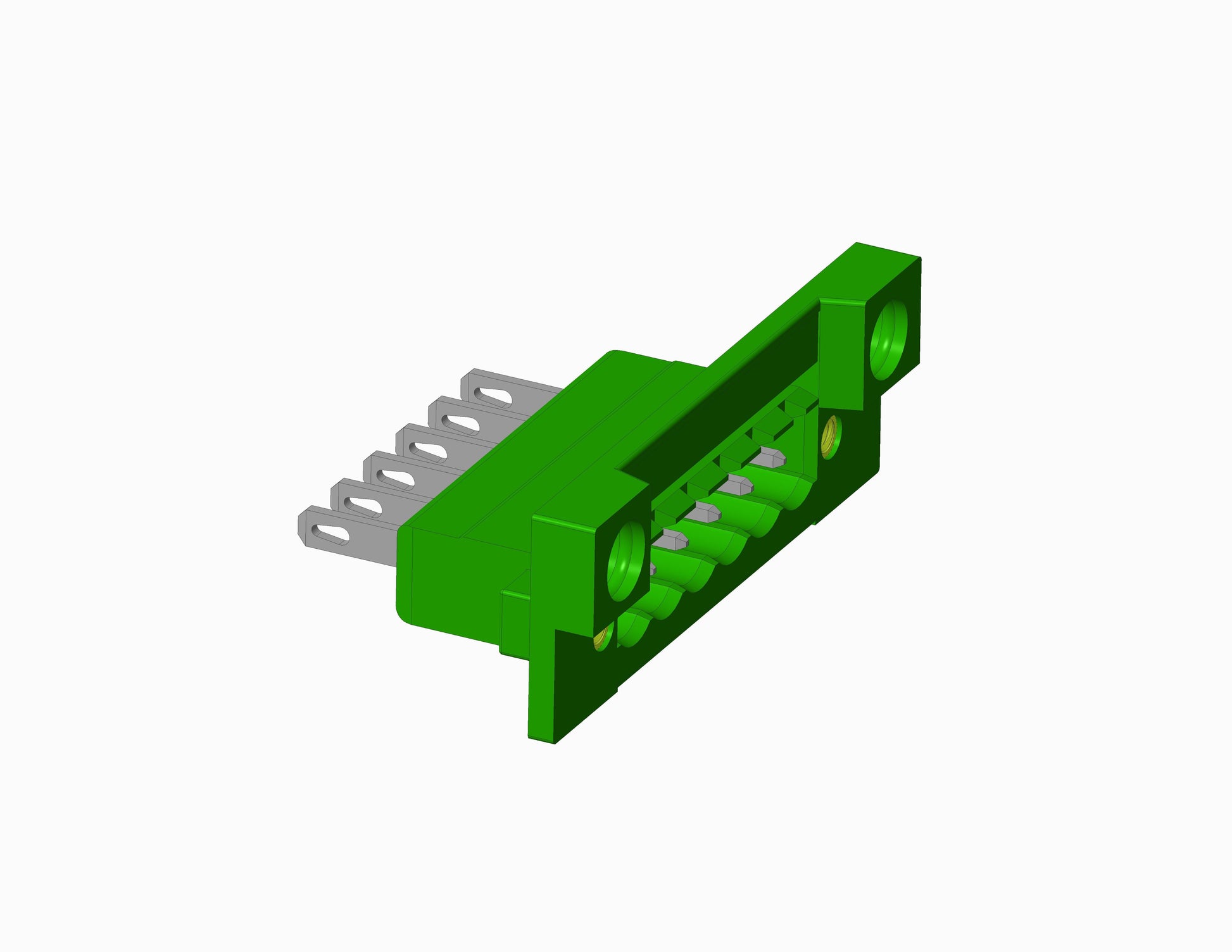

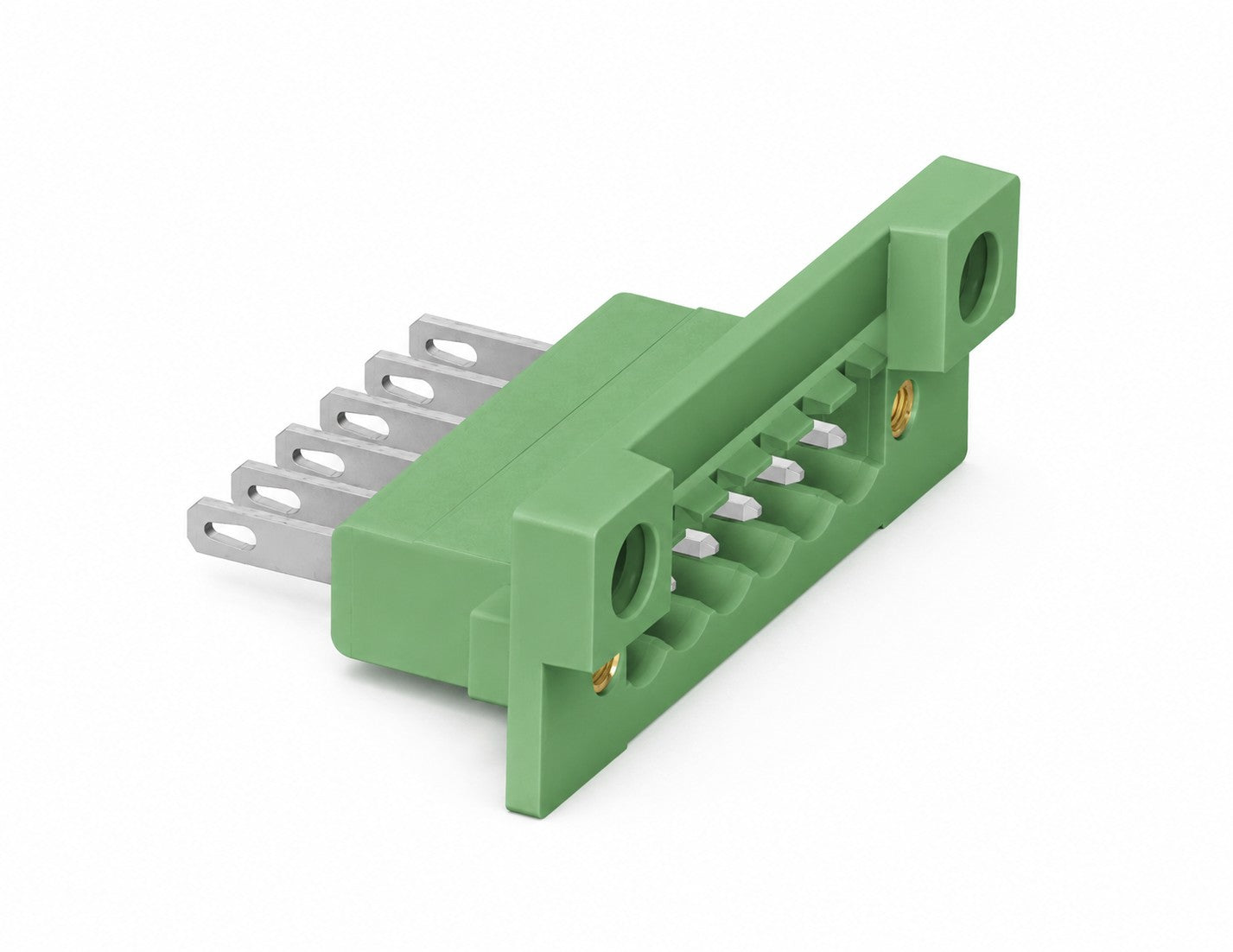

Name: CM1503 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Standard (5mm-5.08mm) > CM1503

Approvals

1 1

Standard

CM1503 Series - Shrouded - 5.08mm

Request Sample Request 3D File

CM1503 Pluggable Headers. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 24 positions. The housing is constructed from Polyamide, UL 94V-0. Feature: Mountable Header.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max

Mechanical

Torque YES

Soldering Temperatures

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Flange Screw Cavity: M2.5, Brass

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
