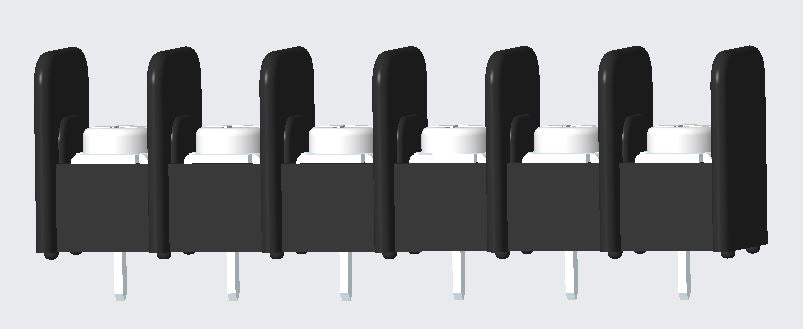

7000 Series - Single Barrier - 0.437" (11.1mm)

Request Sample Request 3D File

7000 Barrier Blocks. It has a centerline spacing of 11.1mm. The voltage rating is 600 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-24AWG. It includes up to 24 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Please See PDF. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Centerline Contacts.

Maximum number of positions 24

Centerline Spacing 0.437" (11.10mm)

Electrical

Voltage Rating 600 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-24AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size Please See PDF

Terminal Screw Material Please See PDF

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black

Cover

Product Notes

IMPORTANT UPDATE! PRODUCT BEING RETIRED! The EBY 7000 Series is being discontinued and will be superseded by the EBY 7200 Series [please click for more details].

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: 7000 Series - Single Barrier - 0.437" (11.1mm)
