Barrier Blocks >  Single Barrier > Power (0.236”-0.787”) > 7200
Approvals
cRU US logo cRU US logo
  • 7200 SERIES Barrier Blocks
  • 7200 SERIES Barrier Blocks dimensional drawing
1 1

Power

7200 Series - Single Barrier - 0.437" (11.1mm)

Request Sample Request 3D File

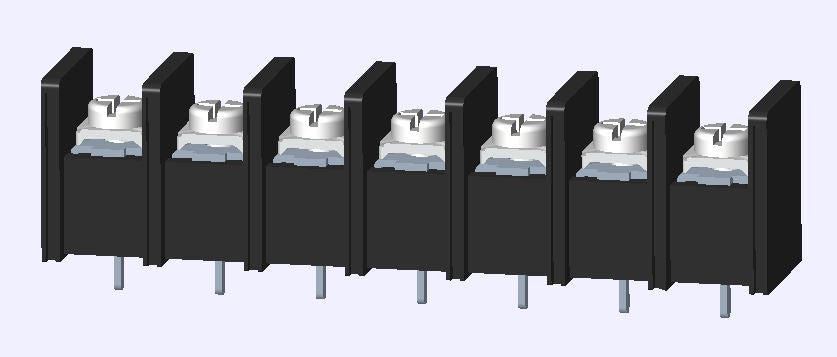

7200 Barrier Blocks. It has a centerline spacing of 11.1mm. The voltage rating is 600 VAC. The current rating is 30 Amps. It accommodates wire sizes from 10-22AWG. It includes up to 24 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Please See PDF. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Centerline Contacts.

Maximum number of positions 24

Centerline Spacing 0.437" (11.10mm)

Electrical

Voltage Rating 600 VAC

Current Rating 30 Amps

Wire Range Min / Max 10-22AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #6-32

Terminal Screw Material Please See PDF

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover

Product Notes

IMPORTANT UPDATE! PRODUCT BEING RETIRED! The EBY 7000 Series is being discontinued and will be superseded by the EBY 7200 Series [please click for more details].

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Request a Sample and 3D file: Product: 7200 Series - Single Barrier - 0.437" (11.1mm)
