EB1501-XX-500 Series
QUOTE AND SAMPLES
Fill out my online form.

EB1501-XX-500 SERIES Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 20 Amps

Wire Range Min / Max: 12-24AWG

MECHANICAL:

Torque: 5.0 lbs-in. Max.

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Material: M3, Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Clip Material: Brass, Tin Plated

Color: Green

PRODUCT NOTES:

Other options available, please let us know your requirements.

DOWNLOAD

Download Product PDF

EB1501-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

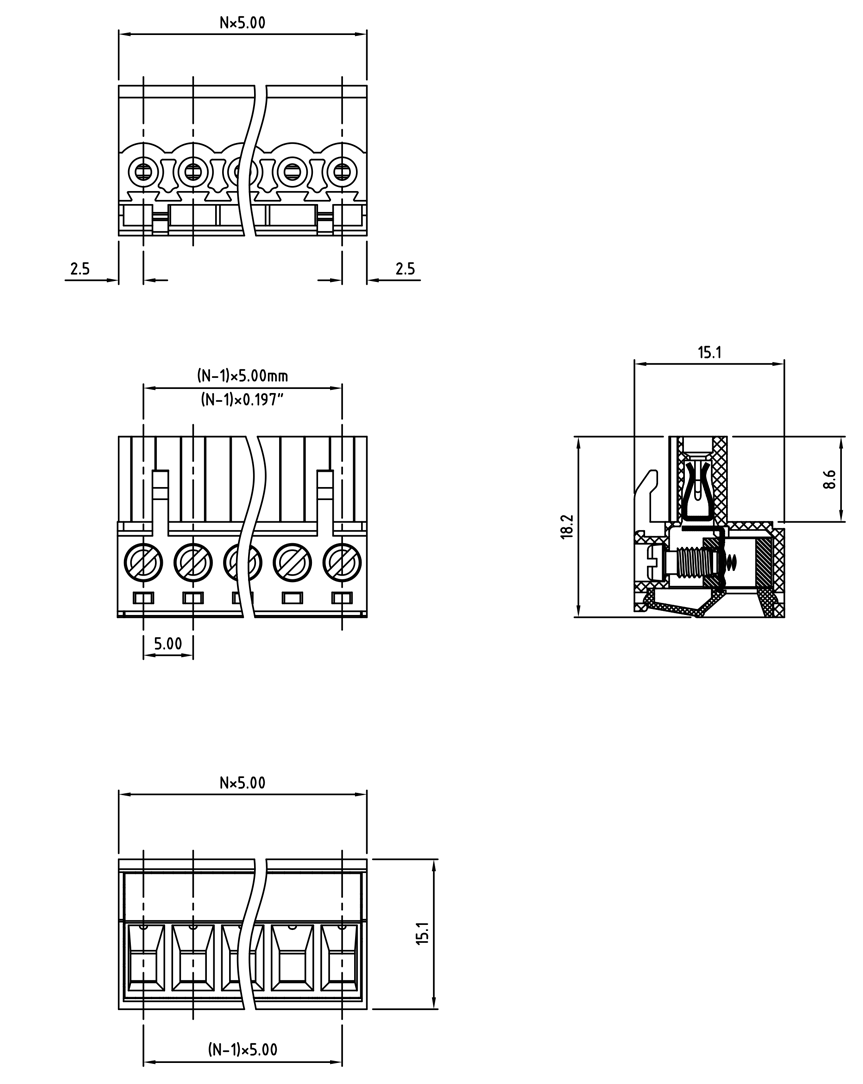

DIMENSIONAL DRAWING

N = Number of Positions
