Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

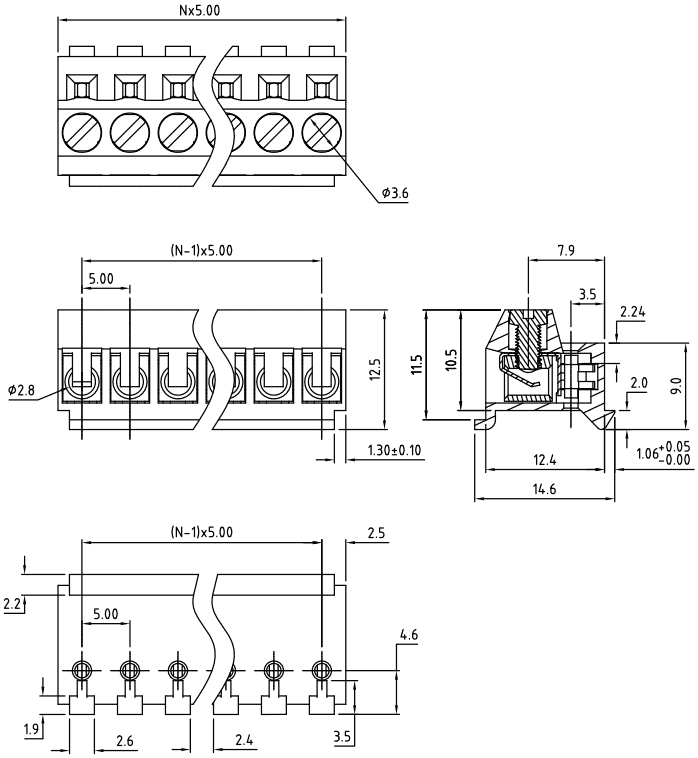

See DIMENSIONAL DRAWINGS

FEATURE:

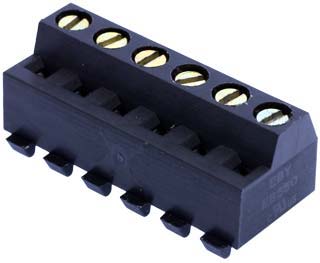

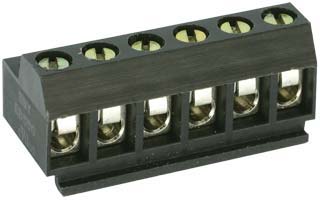

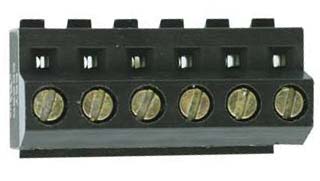

Chassis Mount, 2-Finger Contact Clip

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 14-26AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.6

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass (CuZn), Ni Plated

Wire Guard Material: PhBz, Tin Plated

PRODUCT NOTES:

Compatible with the following pin strips: PS554-XX-0X1
Mates with a ø1.0mm pin
