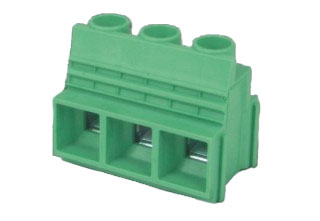

EB1130 SERIES Rising Clamp Blocks

Maximum number of positions: 12

Centerline Spacing: 12.70mm Spacing (0.500")

ELECTRICAL:

Voltage Rating: 600 VAC

Current Rating: 65 Amps

Wire Range Min / Max: 6-20AWG

MECHANICAL:

Torque: 19.0 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M4.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Stamped Steel, Zinc Plated

Contact Solder Pin Material: Copper, Tin Plated

DOWNLOAD

Download Product PDF

EB1130-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

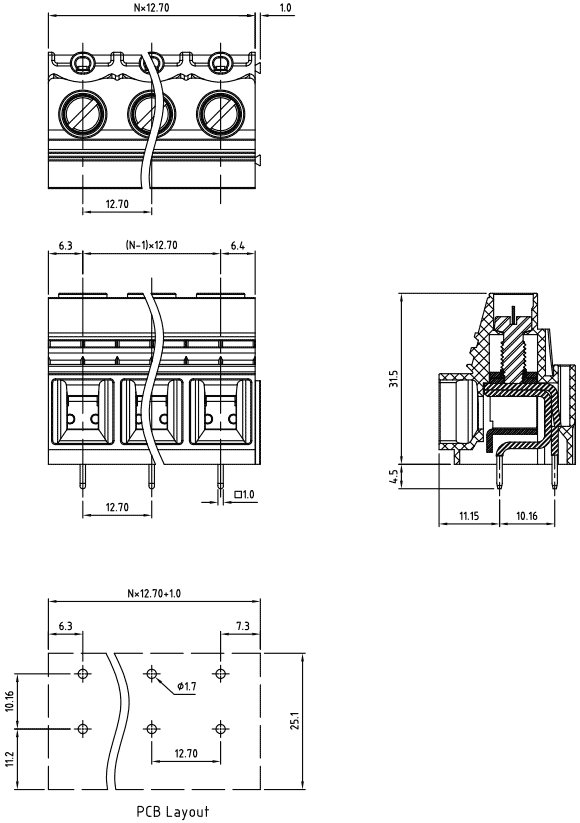

DIMENSIONAL DRAWING

N = Number of Positions
