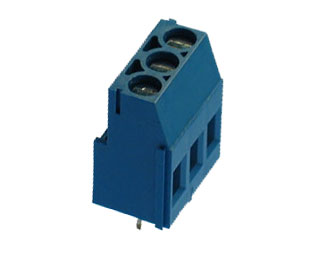

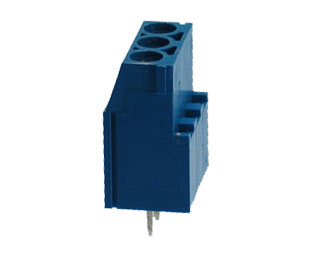

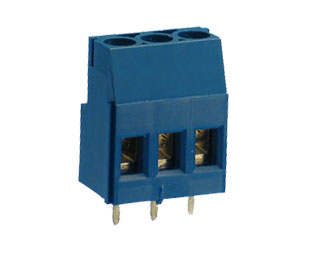

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

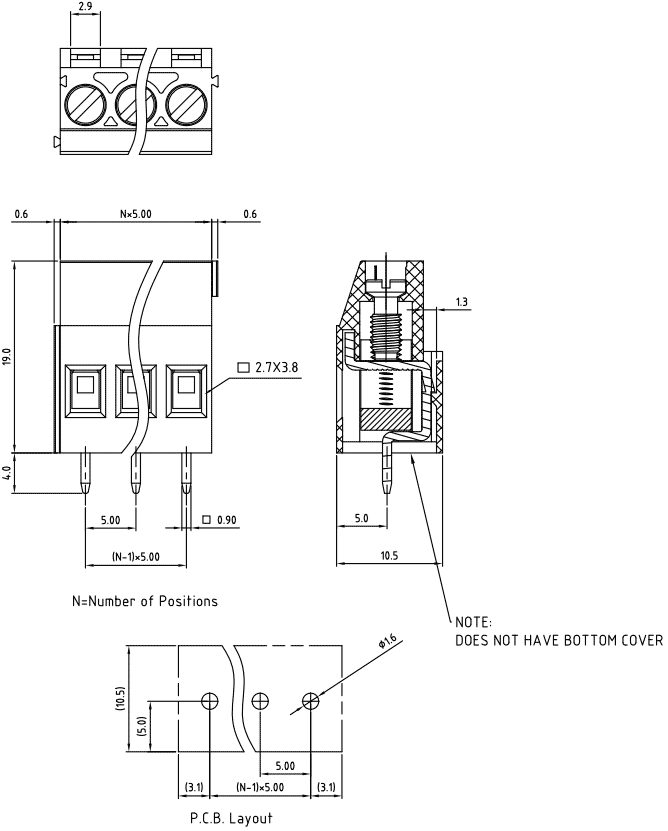

See DIMENSIONAL DRAWINGS

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 20 Amps

Wire Range Min / Max: 12-30AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

Soldering Tempertures: 250°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Brass, Tin Plated

PRODUCT NOTES:

Note: Does not have bottom cover.

EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness.
• Available in modular and molded to size constructions.
• Standard molding materials to all UL94V-O flammability class.
• High temperature materials for re-flow applications available.
• Custom marking, screws and pin length readily available.
