Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

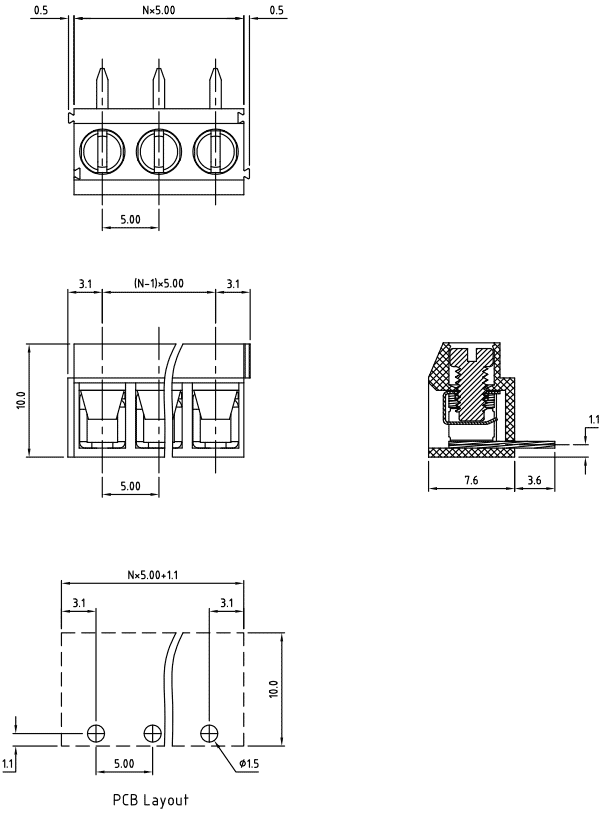

See DIMENSIONAL DRAWINGS

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 8 Amps

Wire Range Min / Max: 14-26AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Solder Pin Material: Brass, Tin Plated
