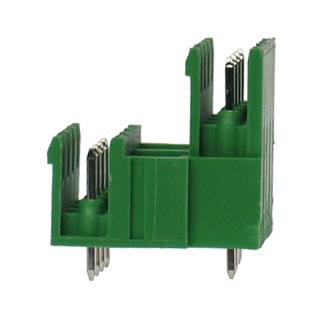

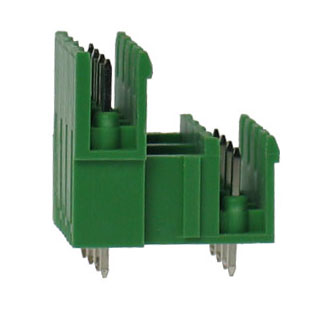

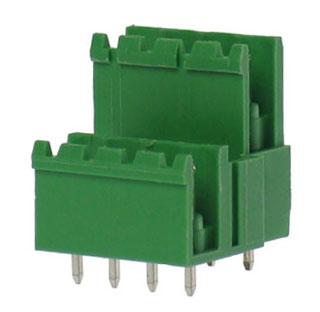

VO1508-XX-520 SERIES Pluggable Headers

Maximum number of positions: 48

Centerline Spacing: 5.08mm Spacing (0.200")

FEATURE:

Dual Tier, Vertical, Open

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 20 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Color: Green

PRODUCT NOTES:

Compatible with the following blocks: EB1508, EB1528, EB1558A, EB1558B, EB1568, EB403, EB406, EB453, EB454

DOWNLOAD

Download Product PDF

VO1508-XX-520.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

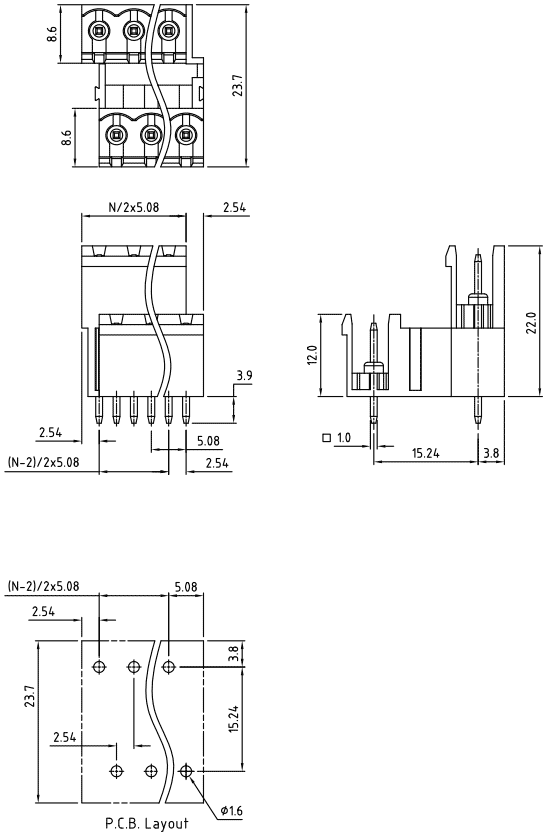

DIMENSIONAL DRAWING

N = Number of Positions
