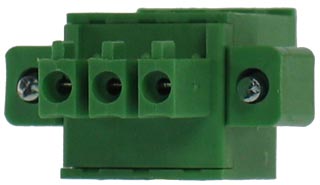

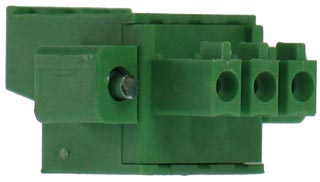

EB1388M SERIES Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 3.81mm Spacing (0.150")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 16-28AWG

MECHANICAL:

Torque: 1.7 lbs-in. Max.

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Housing Material: Steel, Zinc Plated

Contact Cam: Steel, Zinc Plated

Contact Clip Material: PhBz, Tin Plated

Mounting Flange Screw: M2.5, Steel, Zinc Plated, Phil Slot

DOWNLOAD

Download Product PDF

EB1388M-XX-X00.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

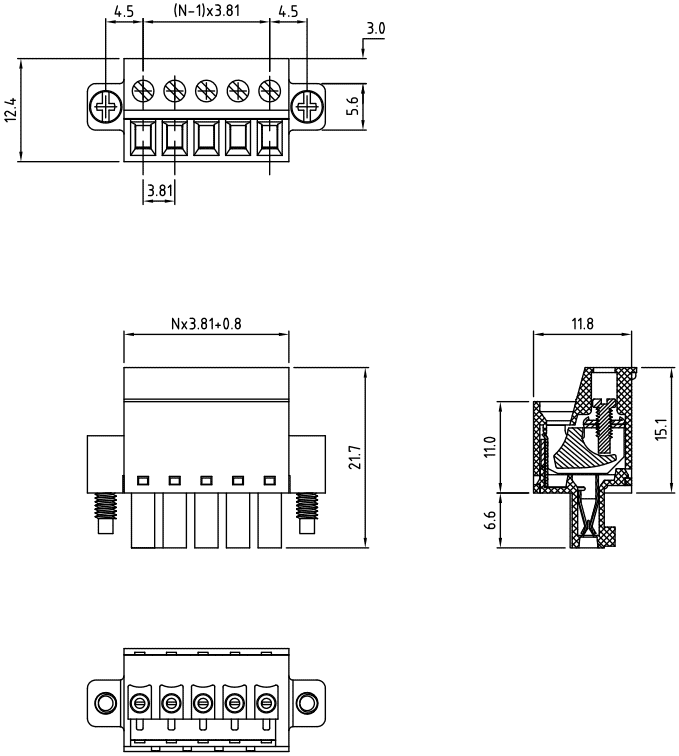

DIMENSIONAL DRAWING

N = Number of Positions
