Maximum number of positions: 12
Centerline Spacing: 10.16mm Spacing (0.400")
ELECTRICAL:
Voltage Rating: 300 VAC
Current Rating: 65 Amps
Wire Range Min / Max: 6-20AWG
MECHANICAL:
Torque: 19.0 lbs-in. Max.
Soldering Tempertures: 260°C, 500°F for 5 seconds Max
MATERIAL:
Insulator Body Material: Polyamide, UL 94V-0
Terminal Screw Size: M4.5
Terminal Screw Material: Steel, Zinc Plated, "-" Slotted
Contact Block Material: Stamped Steel, Zinc Plated
Contact Solder Pin Material: Copper, Tin Plated
Color: Gray
PRODUCT NOTES:
EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness.Download Product PDF

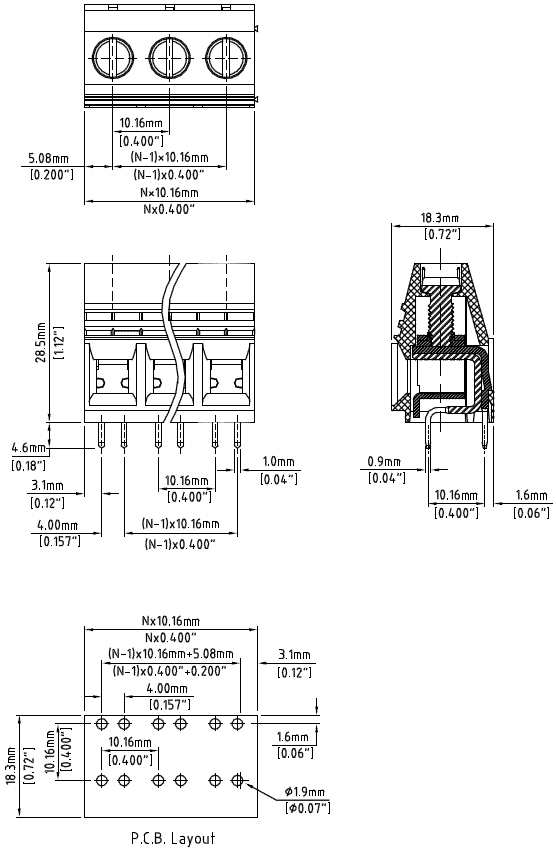

Contains dimensional drawing, full part number and component specifications.
APPROVALS:
N = Number of Positions
