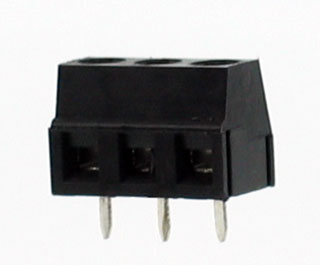

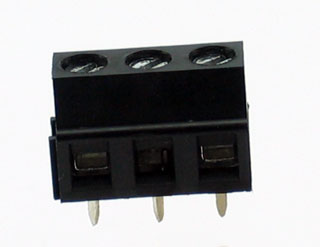

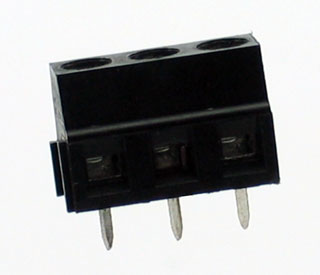

EB251 SERIES Rising Clamp Blocks

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 16-26AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Please See PDF

PRODUCT NOTES:

EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness.
• Available in modular and molded to size constructions.
• Standard molding materials to all UL94V-O flammability class.
• High temperature materials for re-flow applications available.
• Custom marking, screws and pin length readily available.

DOWNLOAD

Download Product PDF

EB251-XX-XXX.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

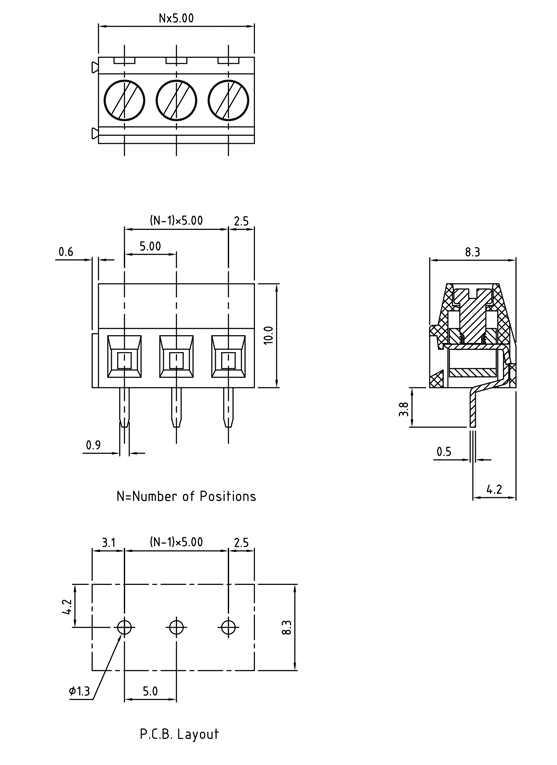

DIMENSIONAL DRAWING

N = Number of Positions
