Maximum number of positions: 16

Centerline Spacing: 7.50mm Spacing (0.295")

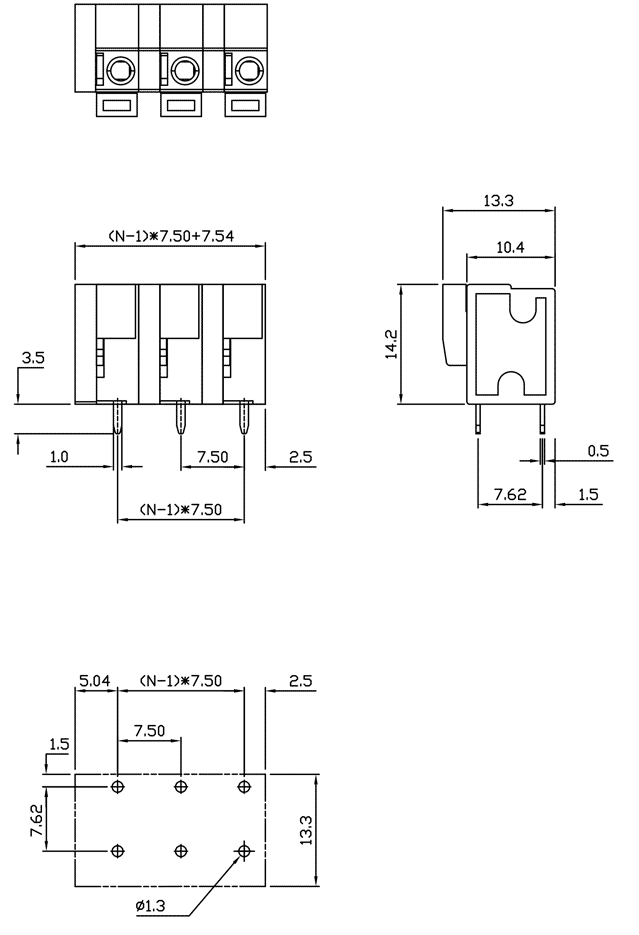

See DIMENSIONAL DRAWINGS

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 14-24AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated
