EB440 Series
QUOTE AND SAMPLES
Fill out my online form.

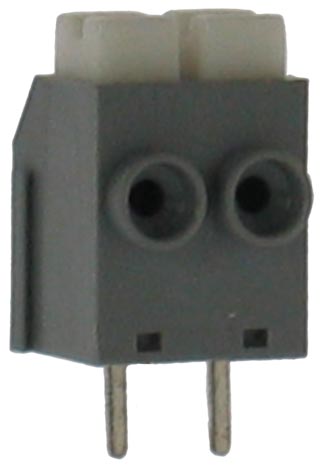

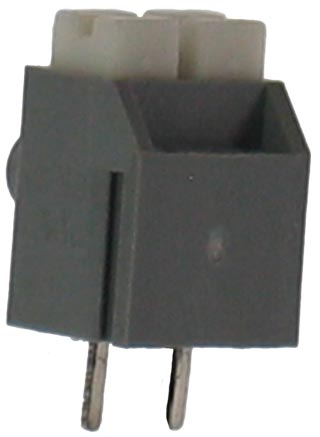

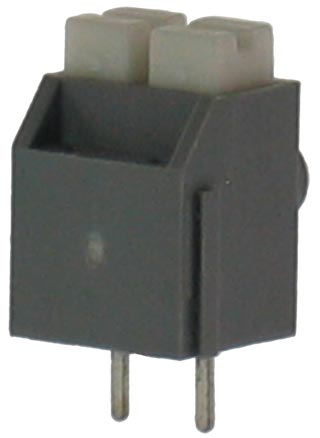

EB440 SERIES Screwless Blocks

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 7 Amps

Wire Range Min / Max: 18-22AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Wire Retention Spring: Stainless Steel

Contact Solder Pin Material: Brass, Tin Plated

Color: Gray

DOWNLOAD

Download Product PDF

EB440-XX-800.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

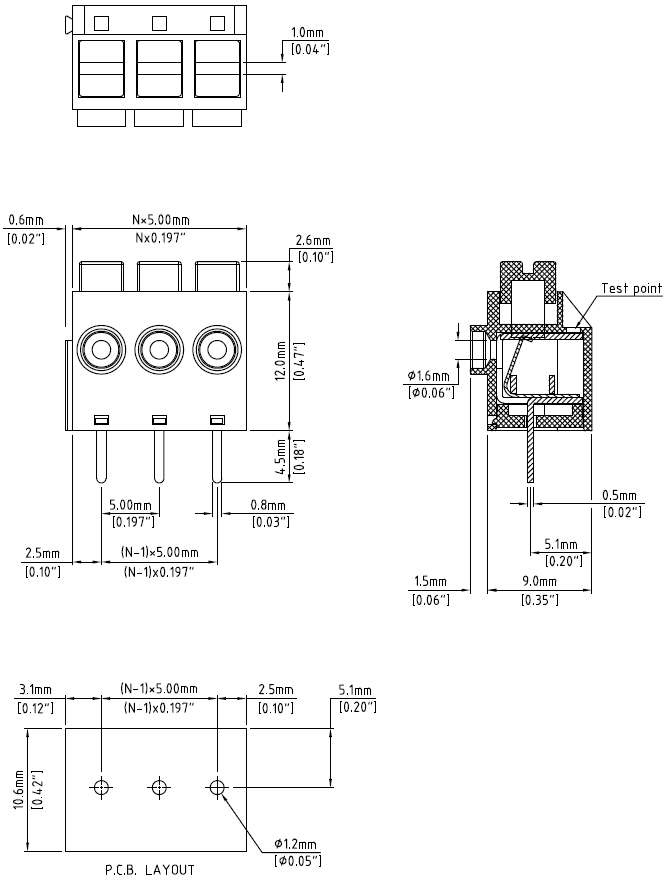

DIMENSIONAL DRAWING

N = Number of Positions
