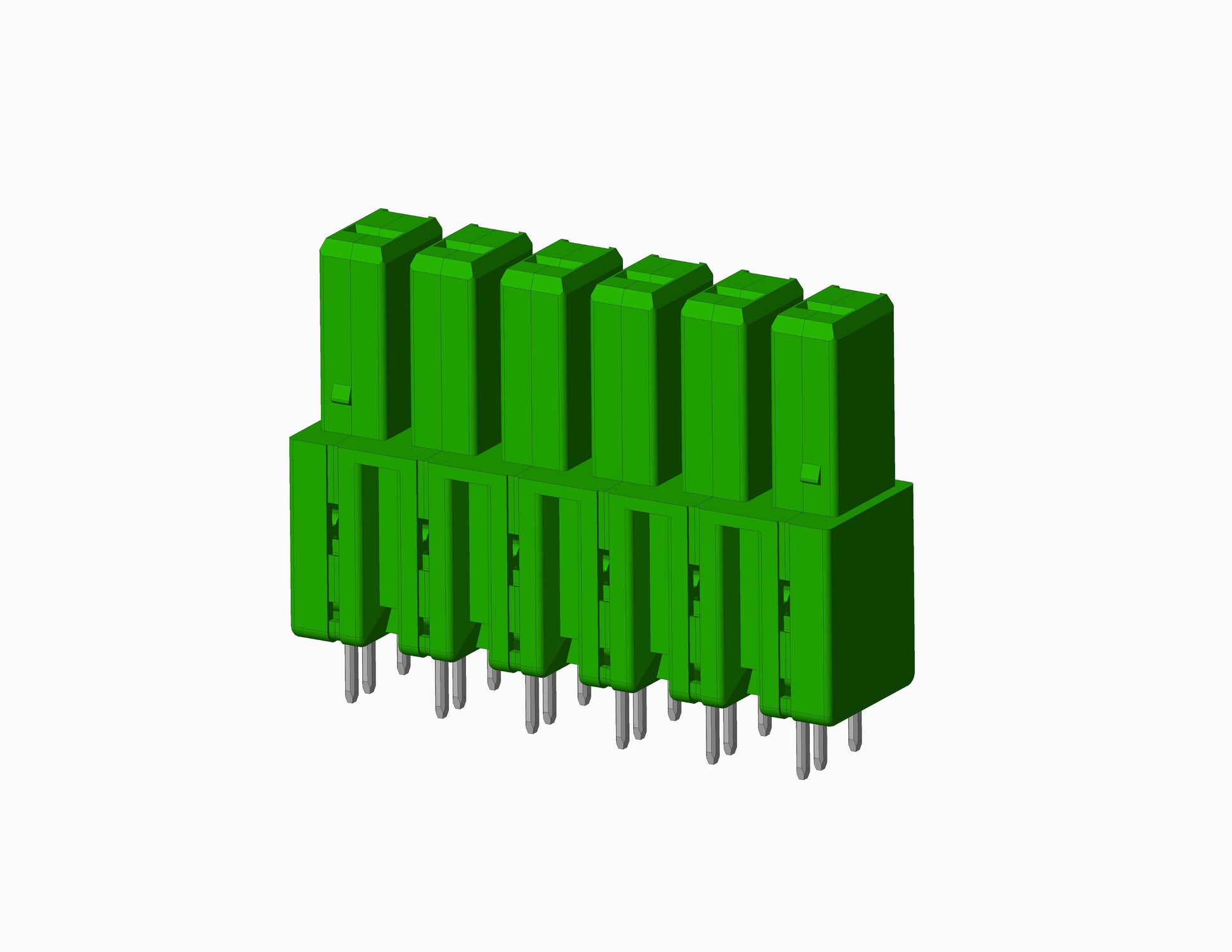

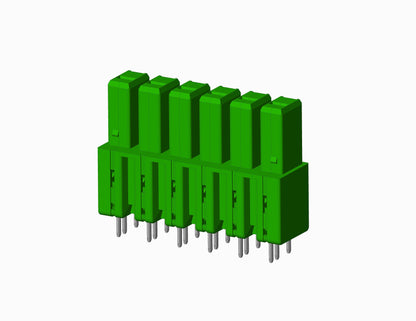

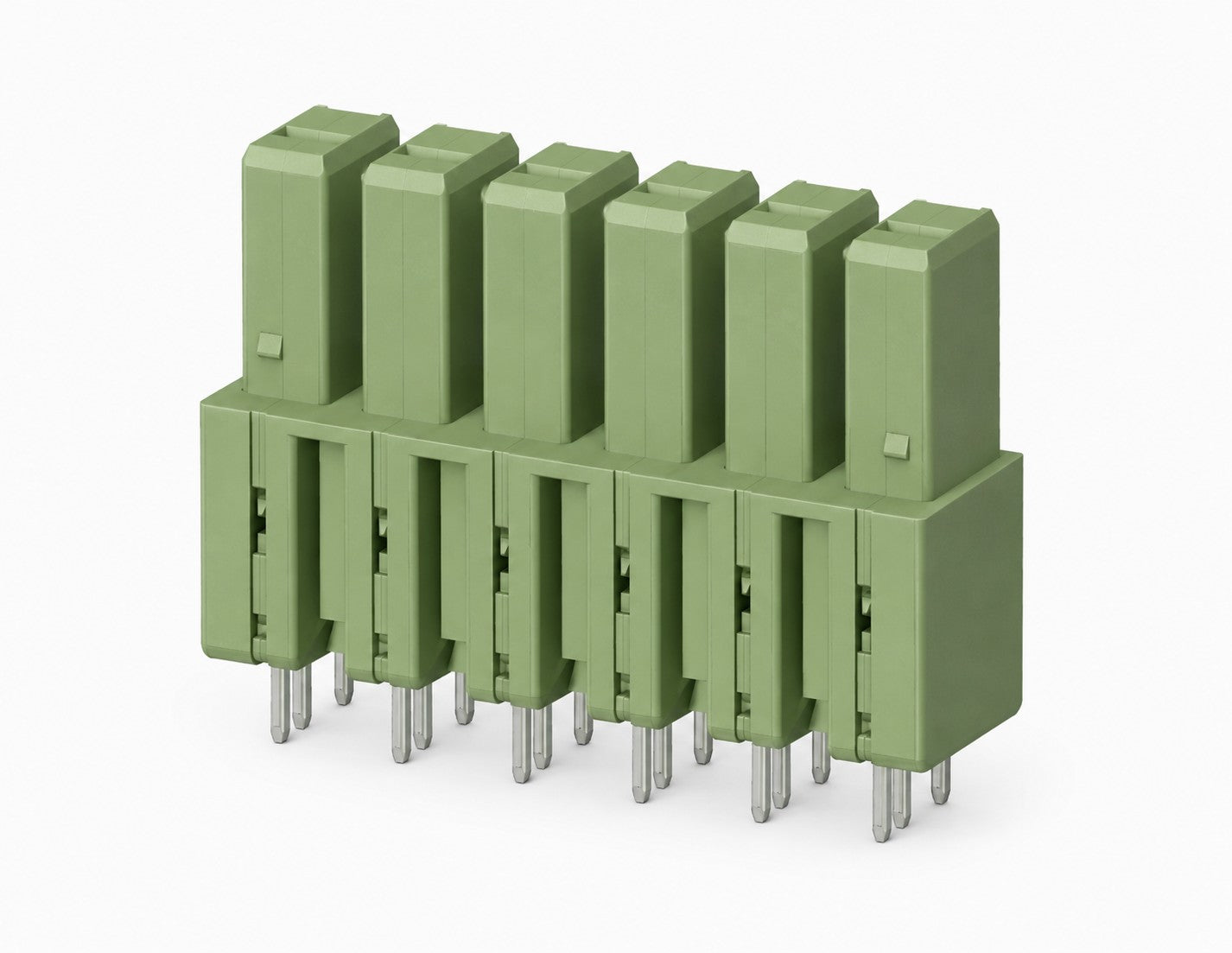

Name: VM1789 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Power (6mm-20mm) > VM1789

Approvals

1 1

Power

VM1789 Series - Shrouded - 7.62mm

Request Sample Request 3D File

VM1789 Pluggable Headers. It has a centerline spacing of 7.62mm. The voltage rating is 600 VAC. The current rating is 41 Amps. It includes up to 16 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Vertical Oriented.

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Electrical

Voltage Rating 600 VAC

Current Rating 41 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Retainer Ring: Stainless Steel

Contact Solder Pin Material: Copper, Tin Plated

Color: Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
