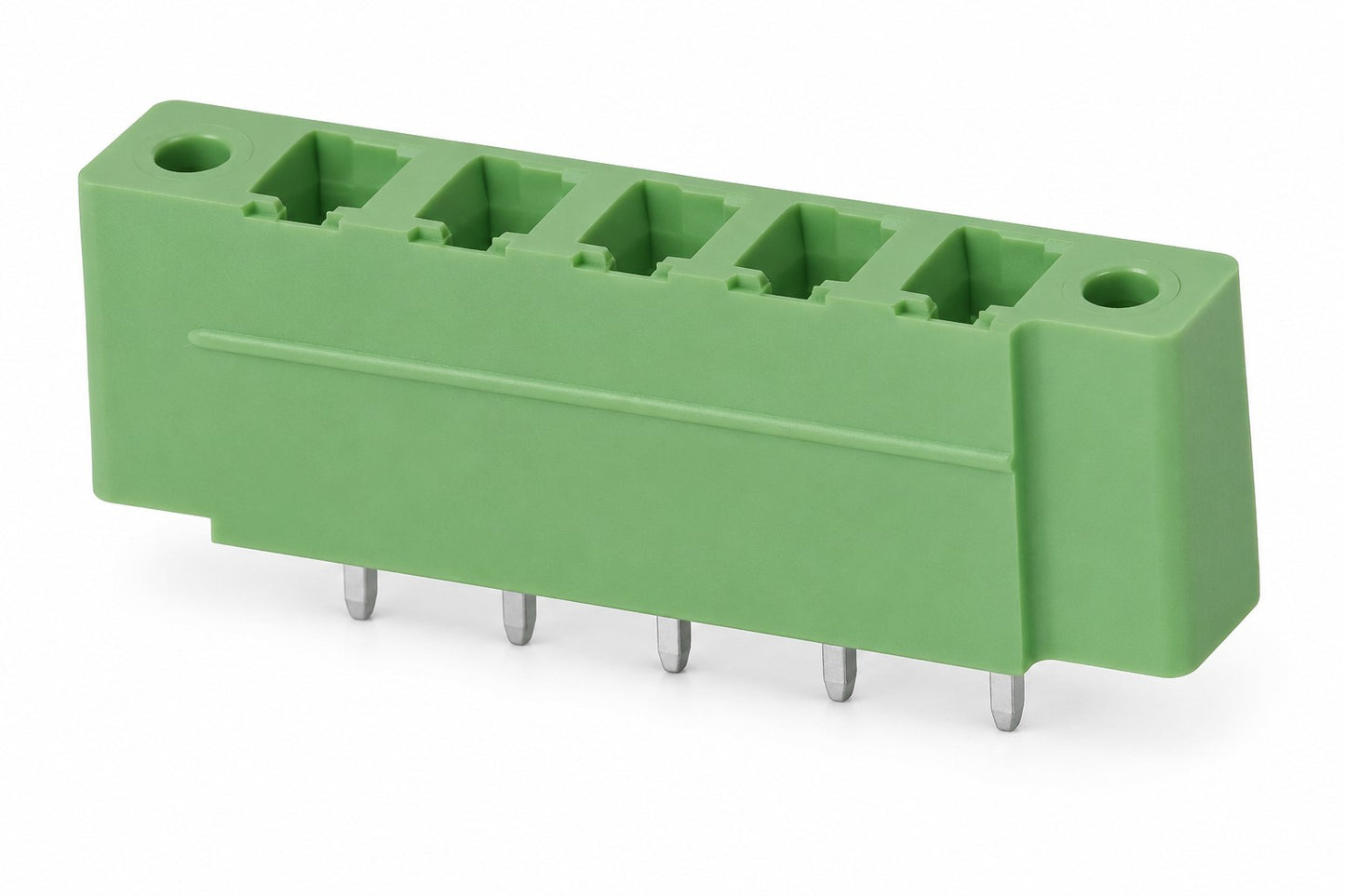

Name: VC1548M SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Standard (5mm-5.08mm) > VC1548M

Approvals

1 1

Standard

VC1548M Series - Shrouded - 5.08mm

Request Sample Request 3D File

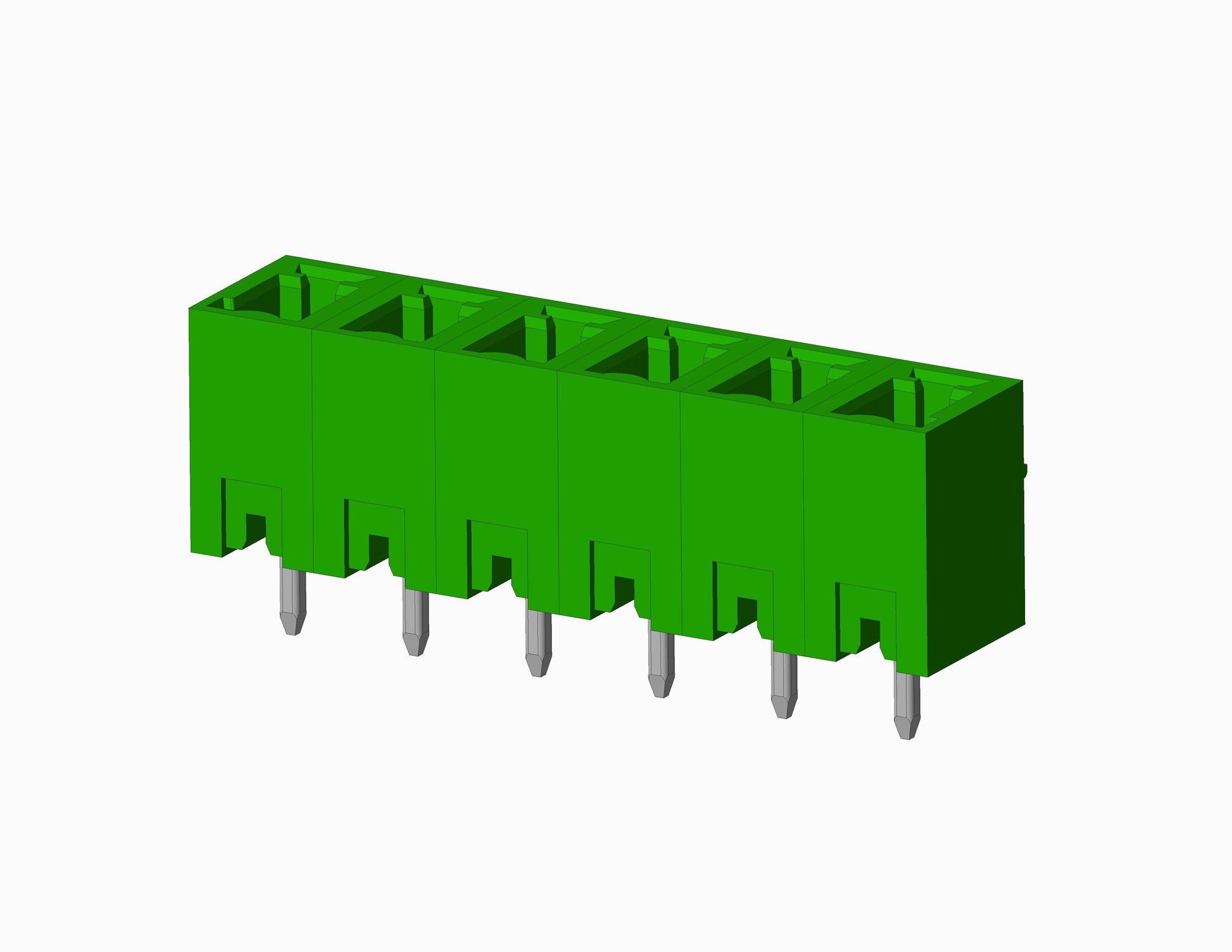

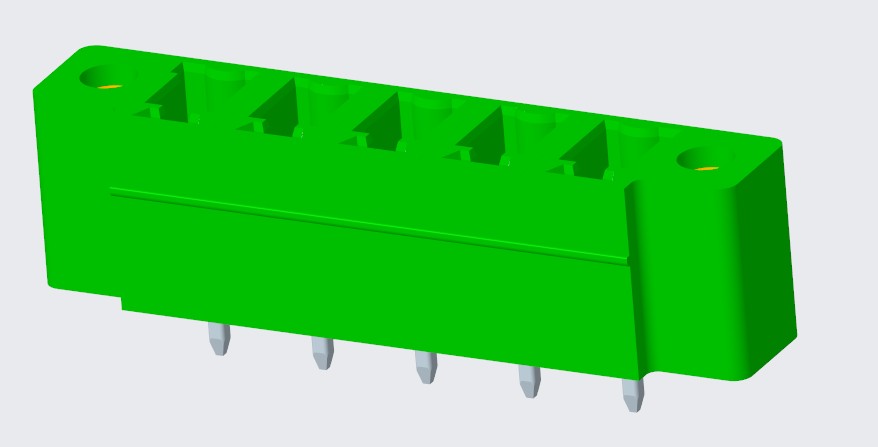

VC1548M Pluggable Headers. It has a centerline spacing of 5.08mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: with Mounting Flanges.

Maximum number of positions 24

Centerline Spacing 5.08mm Spacing (0.200")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Copper, Tin Plated

Flange Screw Cavity: M2.5, Brass

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
