TB9 Series - Single Barrier - 0.500" (12.7mm)

Request Sample Request 3D File

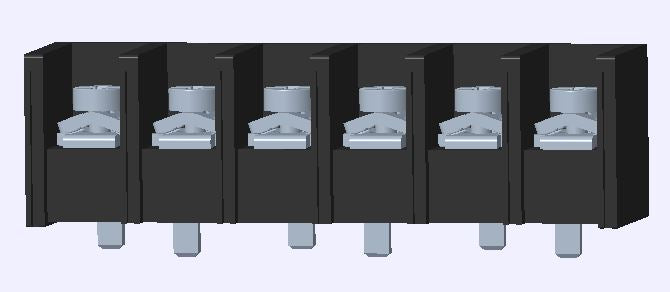

TB9 Barrier Blocks. It has a centerline spacing of 12.7mm. The voltage rating is 600 VAC. The current rating is 45 Amps. It accommodates wire sizes from 8-18AWG. It includes up to 15 positions. The torque rating is 16.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Steel, Zinc Plated, Posi-Drive Head. The housing is constructed from Polycarbonate, UL 94V-0.

Maximum number of positions 15

Centerline Spacing 0.500" (12.70mm)

Electrical

Voltage Rating 600 VAC

Current Rating 45 Amps

Wire Range Min / Max 8-18AWG

Mechanical

Torque 16.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size M4.0

Terminal Screw Material Steel, Zinc Plated, Posi-Drive Head

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut https://cdn.shopify.com/s/files/1/0657/0393/6152/files/XX-TB9-PX-N-02-DWG.gif

Wire Guard Material

Color Black
