TB7200 Series - Single Barrier - 0.437" (11.1mm)

Request Sample Request 3D File

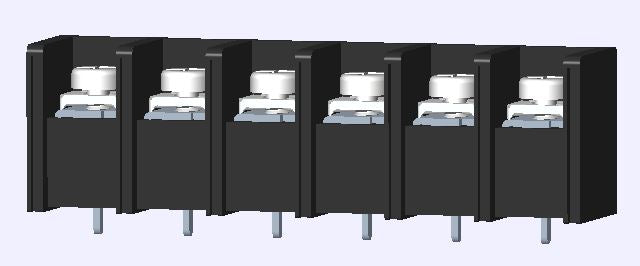

TB7200 Series Barrier Blocks. It has a centerline spacing of 11.1mm. The voltage rating is 600 VAC. The current rating is 30 Amps. It accommodates wire sizes from 10-22AWG. It includes up to 24 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Please See PDF. The housing is constructed from Polycarbonate, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 0.437" (11.10mm)

Electrical

Voltage Rating 600 VAC

Current Rating 30 Amps

Wire Range Min / Max 10-22AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polycarbonate, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #6-32

Terminal Screw Material Please See PDF

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color

Cover
