TB5 Series - Tri-Barrier - 0.325" (8.25mm)

Request Sample Request 3D File

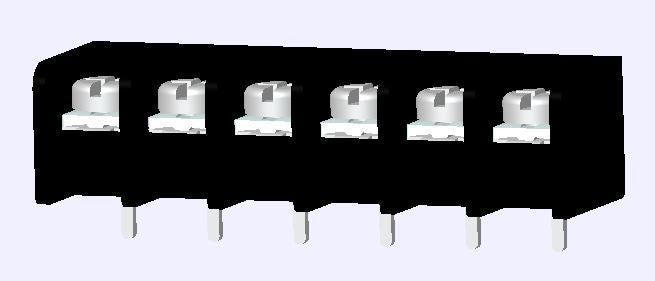

TB5 Barrier Blocks. It has a centerline spacing of 8.25mm. The voltage rating is 300 VAC. The current rating is 20 Amps. It accommodates wire sizes from 12-24AWG. It includes up to 30 positions. The torque rating is 10.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Please See PDF. The housing is constructed from Polyamide, UL 94V-0. Feature: Tri-Barrier.

Maximum number of positions 30

Centerline Spacing 0.325" (8.25mm)

Electrical

Voltage Rating 300 VAC

Current Rating 20 Amps

Wire Range Min / Max 12-24AWG

Mechanical

Torque 10.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #6-32

Terminal Screw Material Please See PDF

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black

Cover

Product Notes

For Additional Hardware & Printing Options, see the product PDF or click here
