TB4 Series - Tri-Barrier - 0.250" (6.35mm)

Request Sample Request 3D File

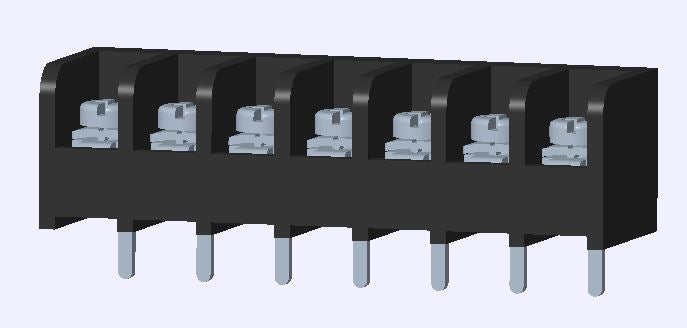

TB4 Barrier Blocks. It has a centerline spacing of 6.35mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It accommodates wire sizes from 18-22AWG. It includes up to 30 positions. The torque rating is 6.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Brass, Tin Plated. The housing is constructed from Polyamide, UL 94V-0. Feature: Tri-Barrier.

Maximum number of positions 30

Centerline Spacing 0.250" (6.35mm)

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max 18-22AWG

Mechanical

Torque 6.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material Polyamide, UL 94V-0

Contact Clip Material

Contact Housing Material

Contact Cam

Retainer Ring

Mounting Flange Screw

Terminal Lever

Wire Retention Spring

Terminal Screw Size #3-48, Combo Head

Terminal Screw Material Brass, Tin Plated

Contact Block Material

Contact Solder Pin Material Brass, Tin Plated

Solder Mounting Plate

Flange Screw Cavity

Mounting Flange Nut

Wire Guard Material

Color Black
