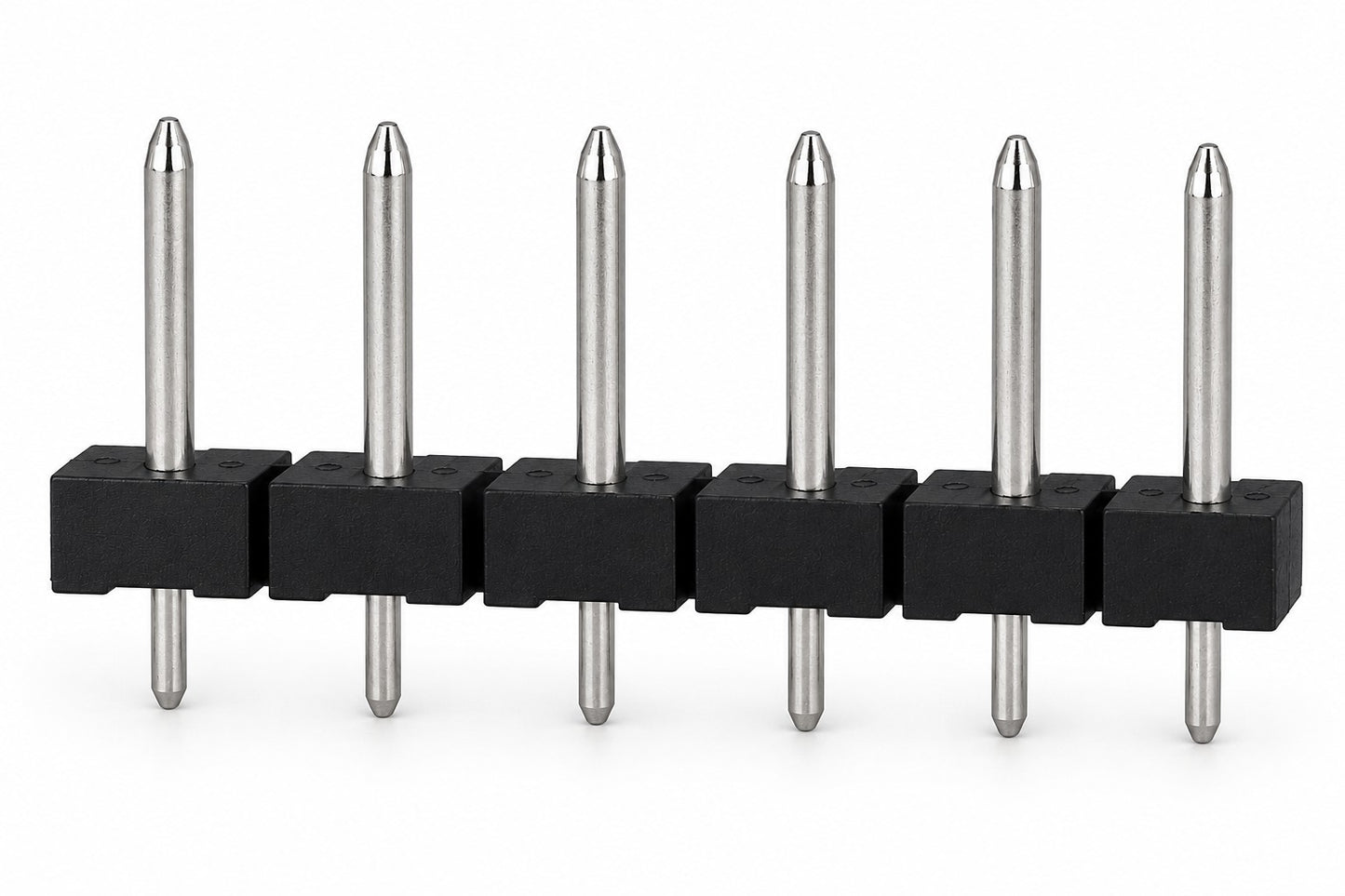

  • PS5X3-XX-XXX SERIES Pin Strips

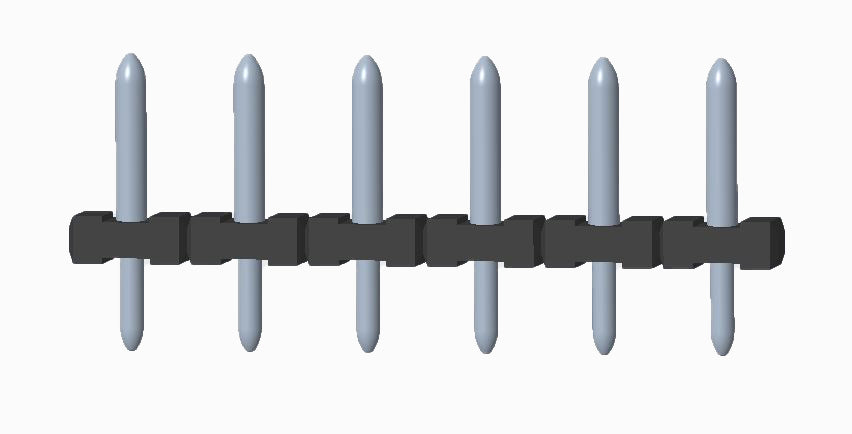

  • PS5X3-XX-XXX SERIES Pin Strips dimensional drawing
1 1

Standard

PS5X3-XX-XXX Series - Pin Strips - 5.0mm

Request Sample Request 3D File

PS5X3-XX-XXX Pin Strips. It has a centerline spacing of 5.0mm. The voltage rating is 300 VAC. The current rating is 15 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Pin Strip, High Temp Plastic Suitable for Reflow.

Maximum number of positions 24

Centerline Spacing 5.00mm Spacing (0.197")

Electrical

Voltage Rating 300 VAC

Current Rating 15 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

Styles in the PS5X3 Series: PS503, PS513, PS523, PS533. Please see the PDF for details on each style. Adjustable Pin Heights from 12.5mm to 18.0mm

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
