Name: PS4XX-XX-01X Pin Strip
Brand: ebyelectro
Availability: OutOfStock

Euro Style Headers > Pin Strips > Standard (5mm-5.08mm) > PS4XX

1 1

Standard

PS4XX Series - Pin Strips - 5.0mm

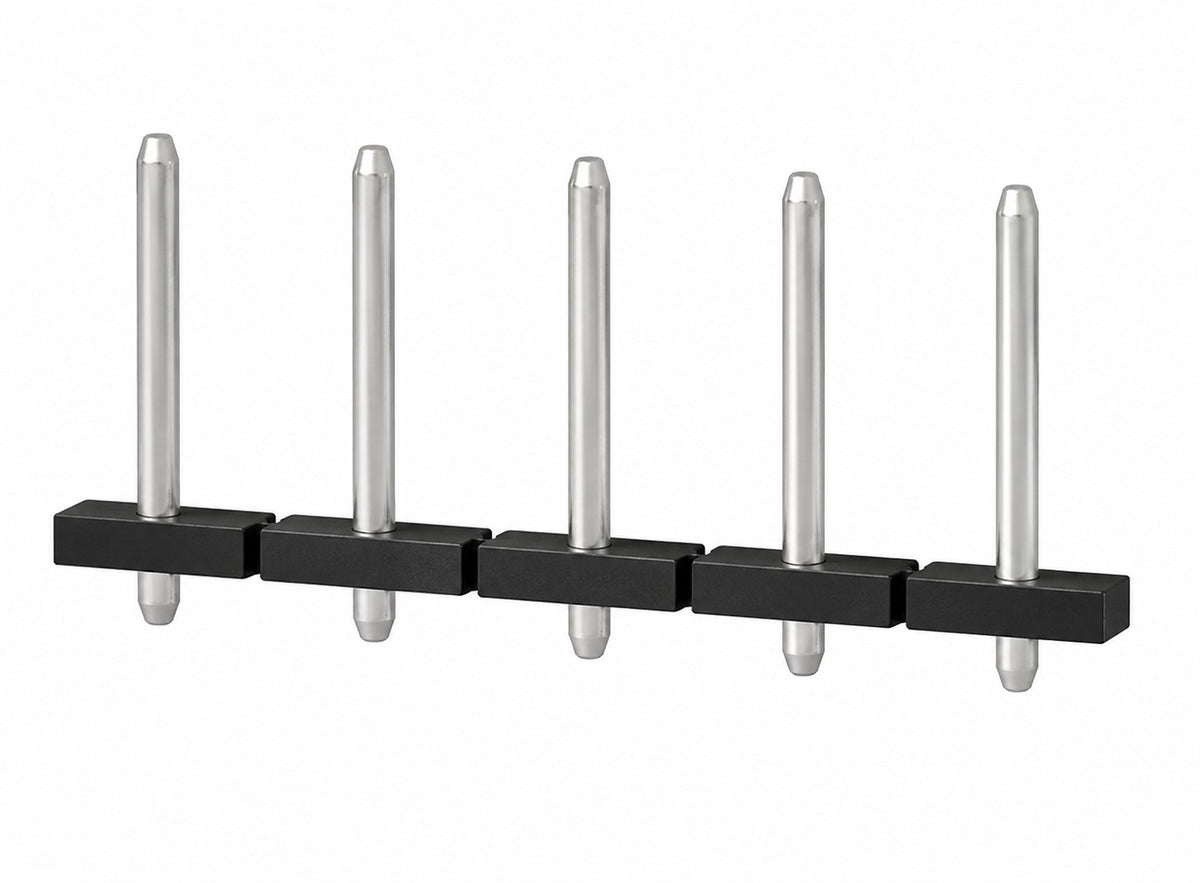

PS4XX-XX-01X Pin Strip. It has a centerline spacing of 5.00mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 12 positions. The soldering temperature is 260°C (500°F) for 5 seconds Max. The body is constructed from PA46 (glass filled), UL 94V-0 Suitable for Thru-Hole Reflow (THR). Feature: Pin Strip with Optional Pick and Place Cover.

Maximum number of positions 12

Centerline Spacing 5.00mm

Mechanical

Soldering Temperatures: 260°C (500°F) for 5 seconds Max

Electrical

Voltage Rating: 300 VAC

Current Rating: 10 Amps

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

EB5820-XX-X00 SERIES Push-Button Pluggable Blocks

EB5820-XX-X00 Series - Spring Pluggable - Push-Button (PPS/5.0mm)
