Name: PS338 SERIES Pin Strips
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Pin Strips > Compact (3.5mm-4.57mm) > PS338

Approvals

1 1

Compact

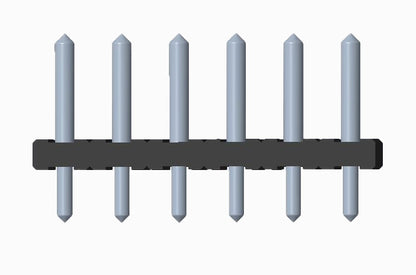

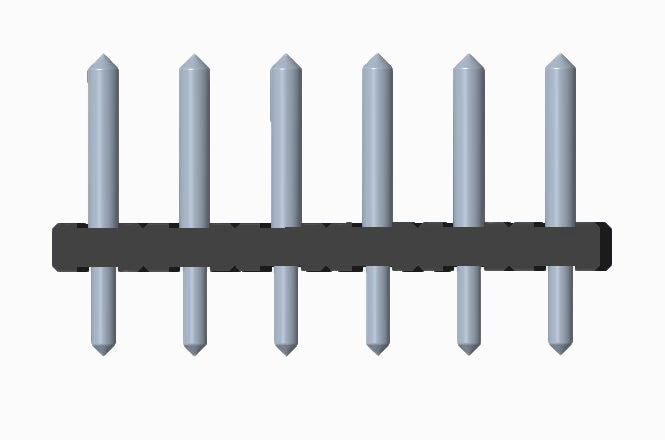

PS338 Series - Pin Strips - 3.81mm

Request Sample Request 3D File

PS338 Pin Strips. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Pin Strip for the EB338.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 10 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
