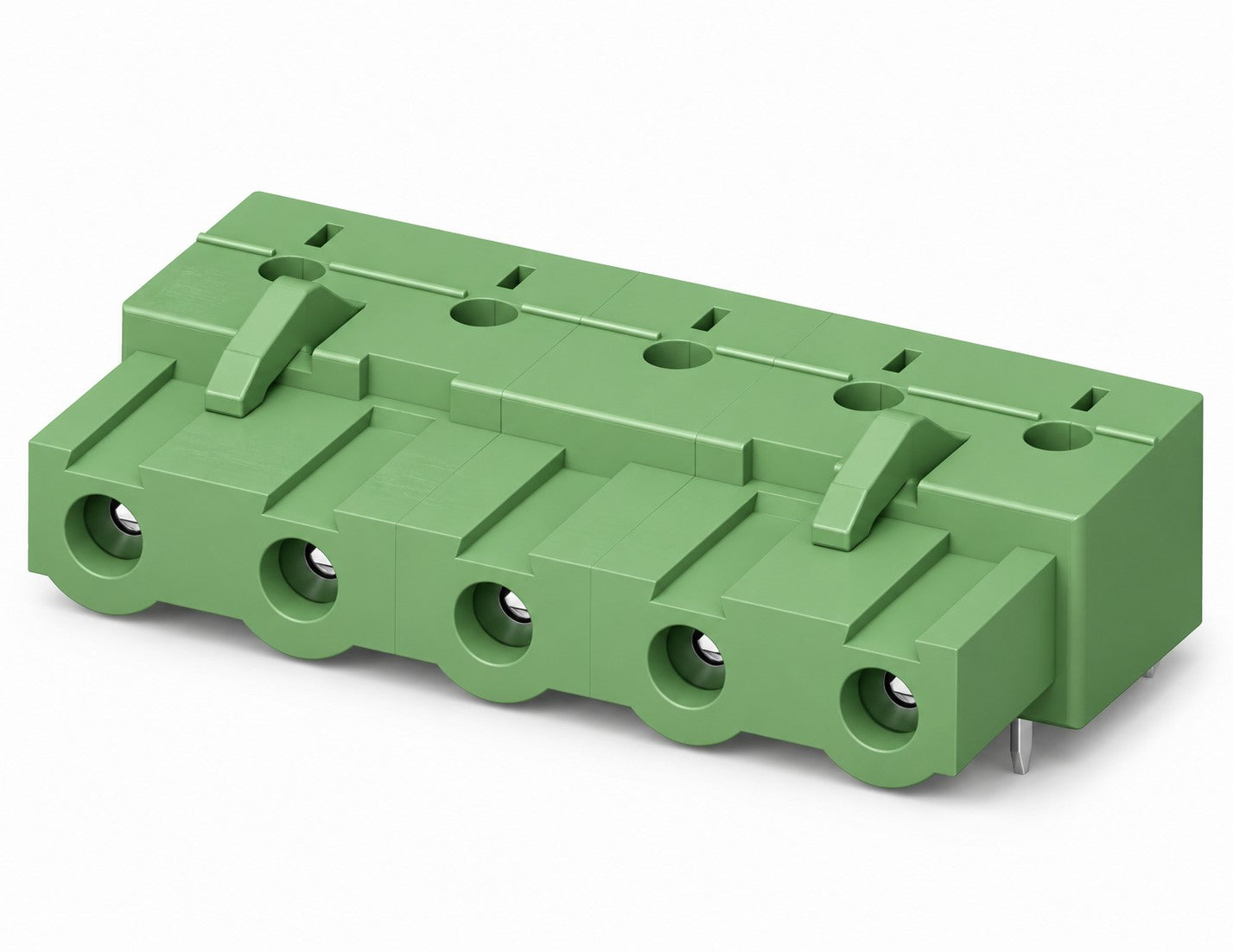

Name: HM760 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Power (6mm-20mm) > HM760

Approvals

1 1

Power

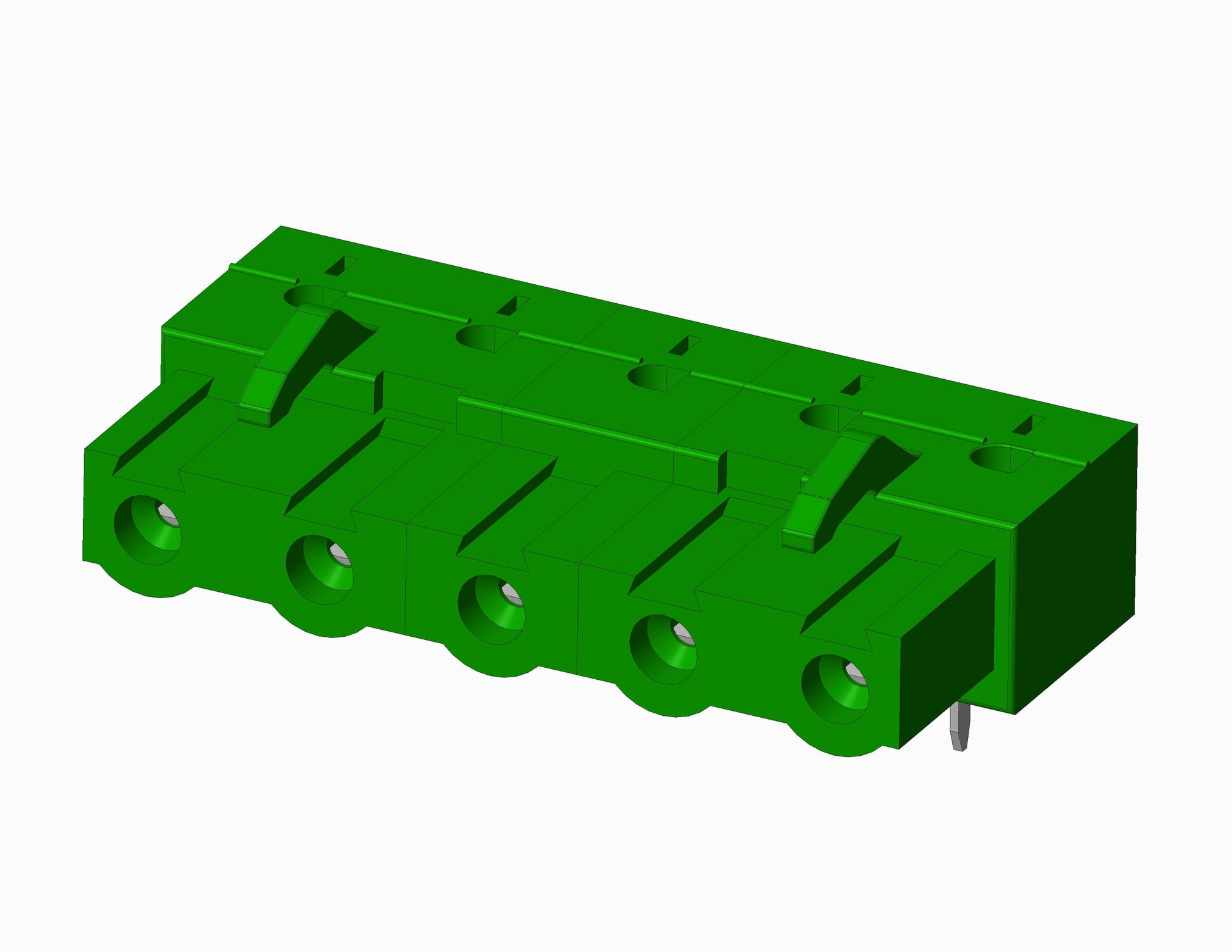

HM760 Series - Shrouded - 7.62mm

Request Sample Request 3D File

HM760 Pluggable Headers. It has a centerline spacing of 7.62mm. The voltage rating is 300 VAC. The current rating is 10 Amps. It includes up to 16 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 16

Centerline Spacing 7.62mm Spacing (0.300")

Mechanical

Soldering Temperatures: 260°C, 500°F for 5 seconds Max

Electrical

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Copper, Tin Plated

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF

Primary Mating Pairs

EB1742 Series - Screw Pluggable - Rising Cage (PRS/7.62mm)
