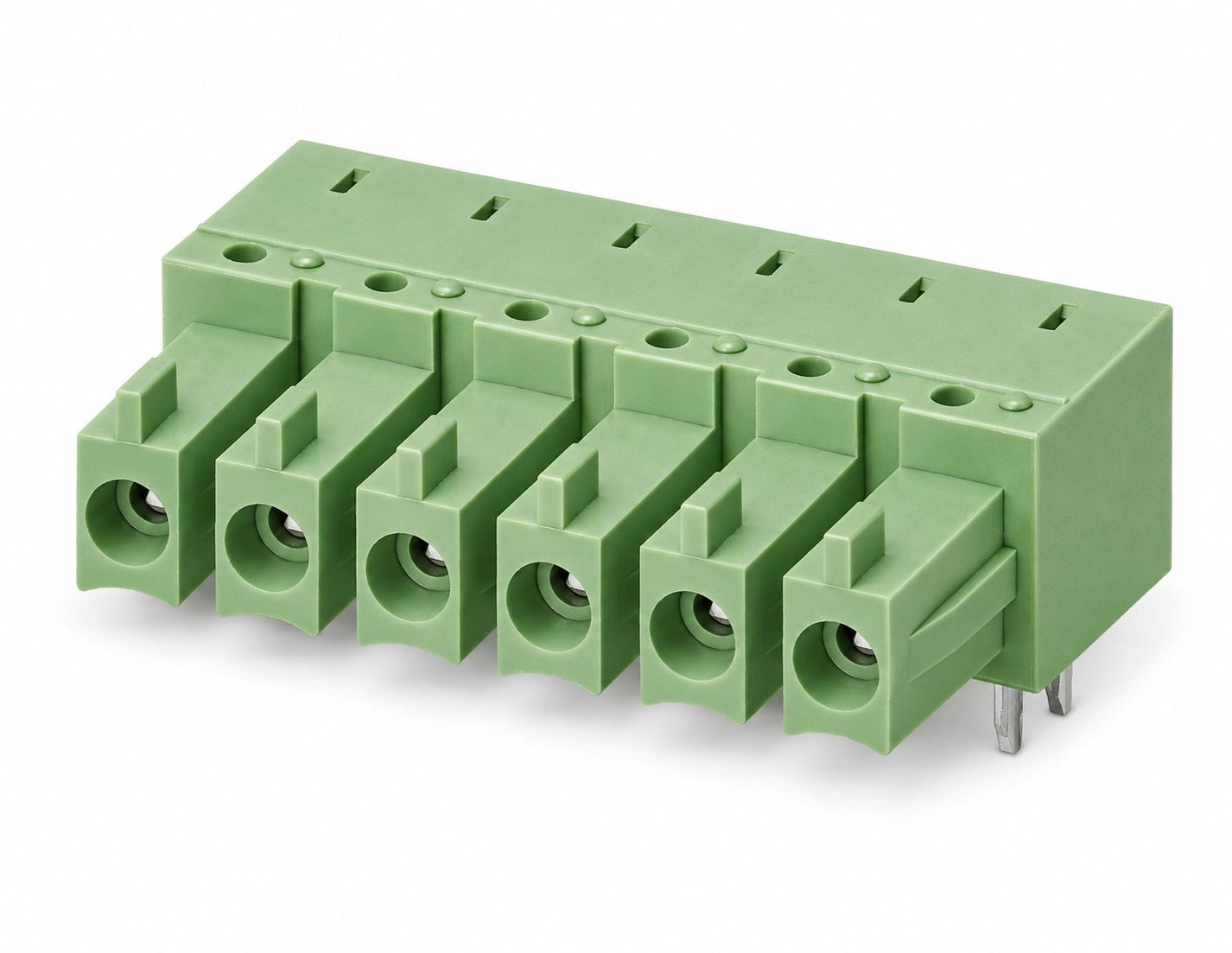

Name: HM380-XX-500 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Compact (3.5mm-4.57mm) > HM380-XX-500

Approvals

1 1

Compact

HM380-XX-500 Series - Shrouded - 3.81mm

Request Sample Request 3D File

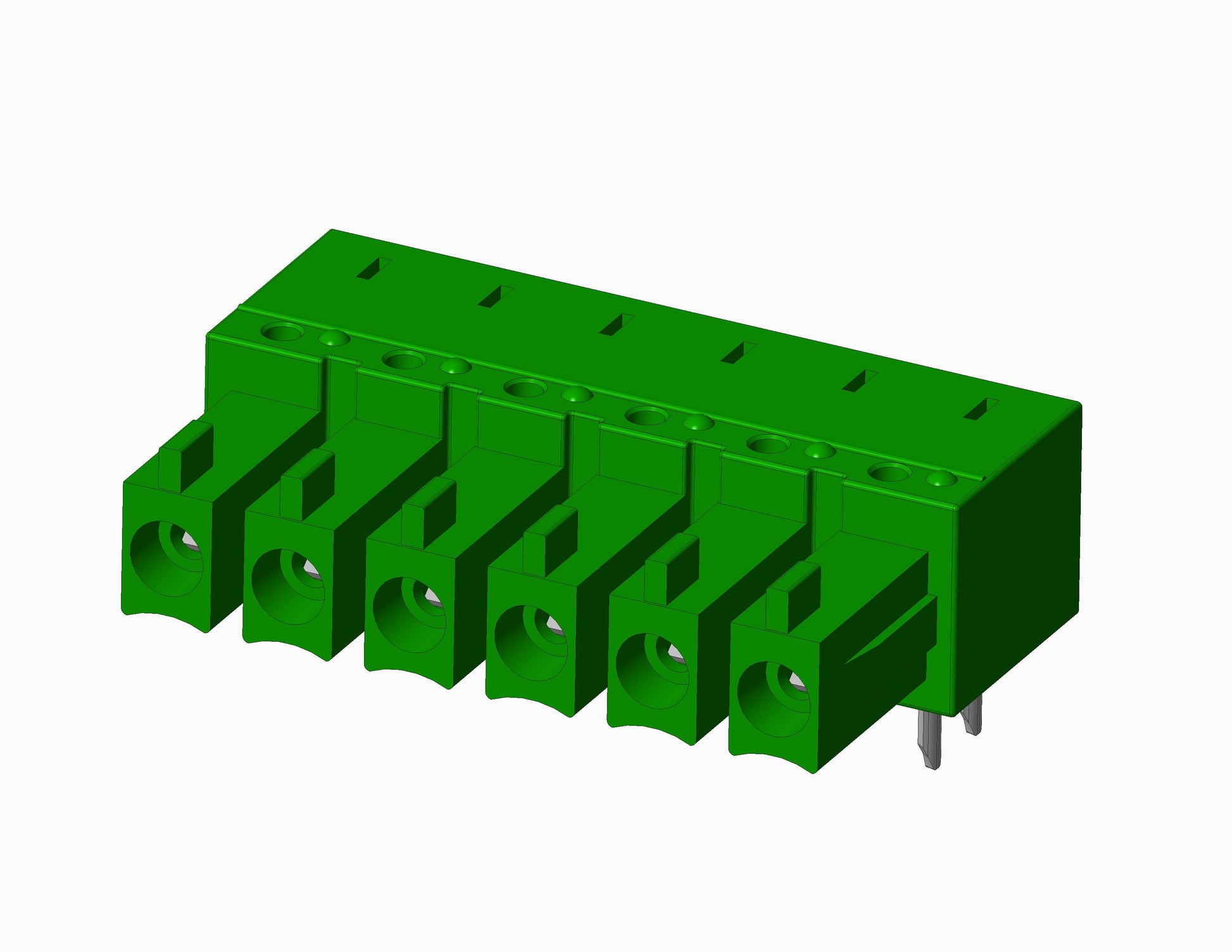

HM380-XX-500 Pluggable Headers. It has a centerline spacing of 3.81mm. The voltage rating is 300 VAC. The current rating is 8 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0.

Maximum number of positions 24

Centerline Spacing 3.81mm Spacing (0.150")

Electrical

Voltage Rating 300 VAC

Current Rating 8 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: PhBz, Tin Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
