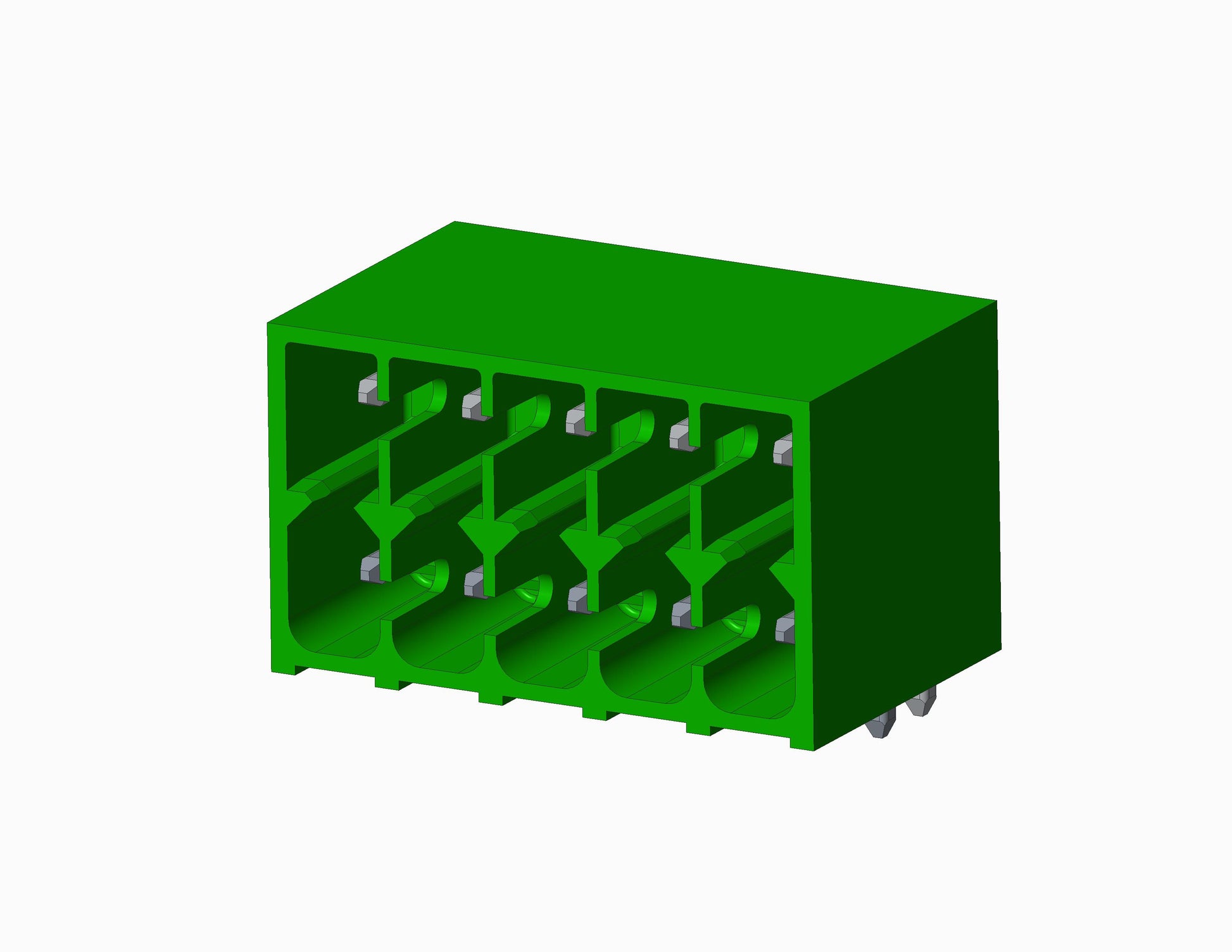

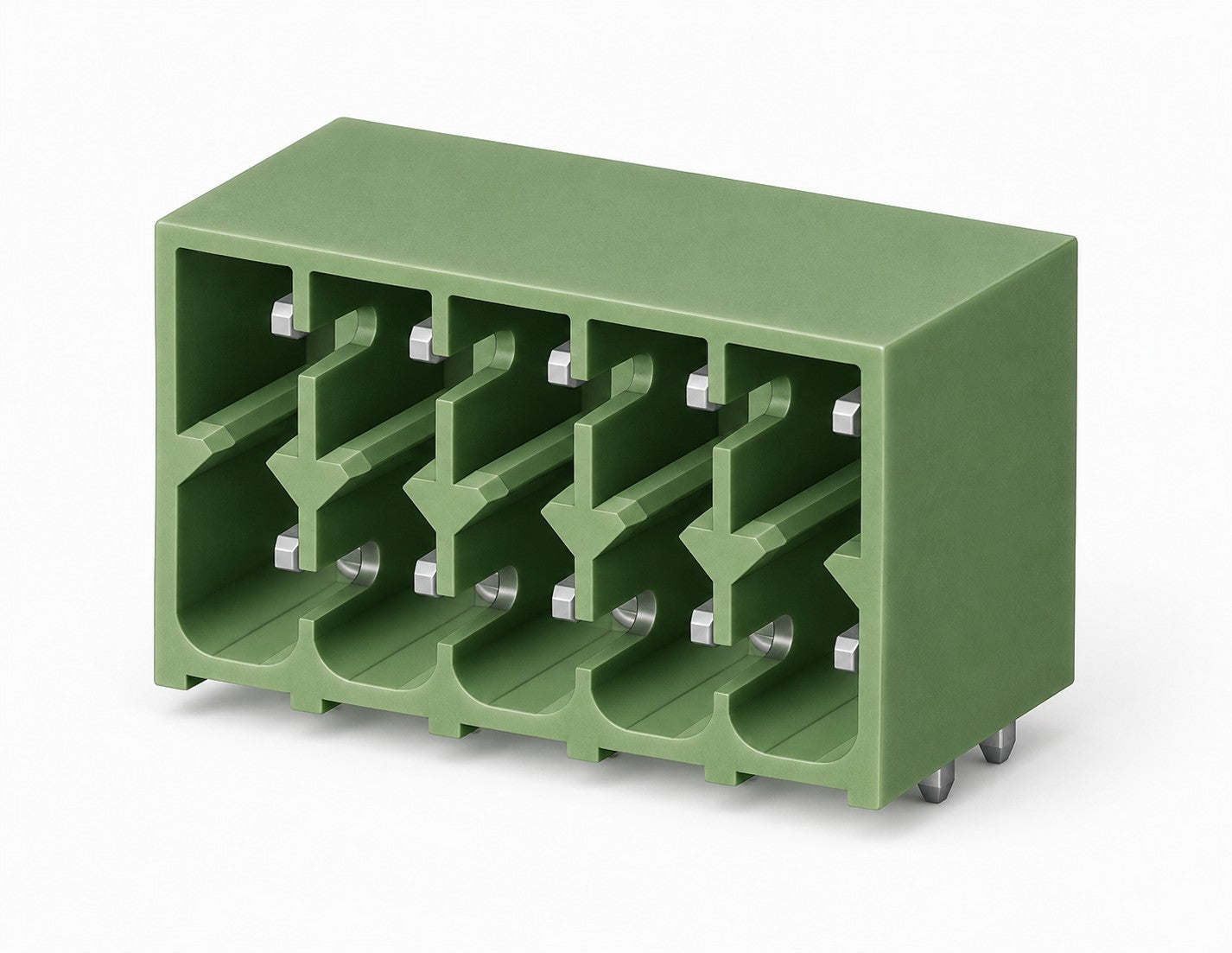

Name: HC5350 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Compact (3.5mm-4.57mm) > HC5350

Approvals

1 1

Compact

HC5350 Series - Shrouded - 3.5mm

Request Sample Request 3D File

HC5350 Pluggable Headers. It has a centerline spacing of 3.5mm. The voltage rating is 150 VAC. The current rating is 5.5 Amps. It includes up to 24 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Thermoplastic, High-Temp, UL 94V-0. Feature: Pluggable Header, Horizontal, Closed.

Maximum number of positions 24

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 150 VAC

Current Rating 5.5 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Thermoplastic, High-Temp, UL 94V-0

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
