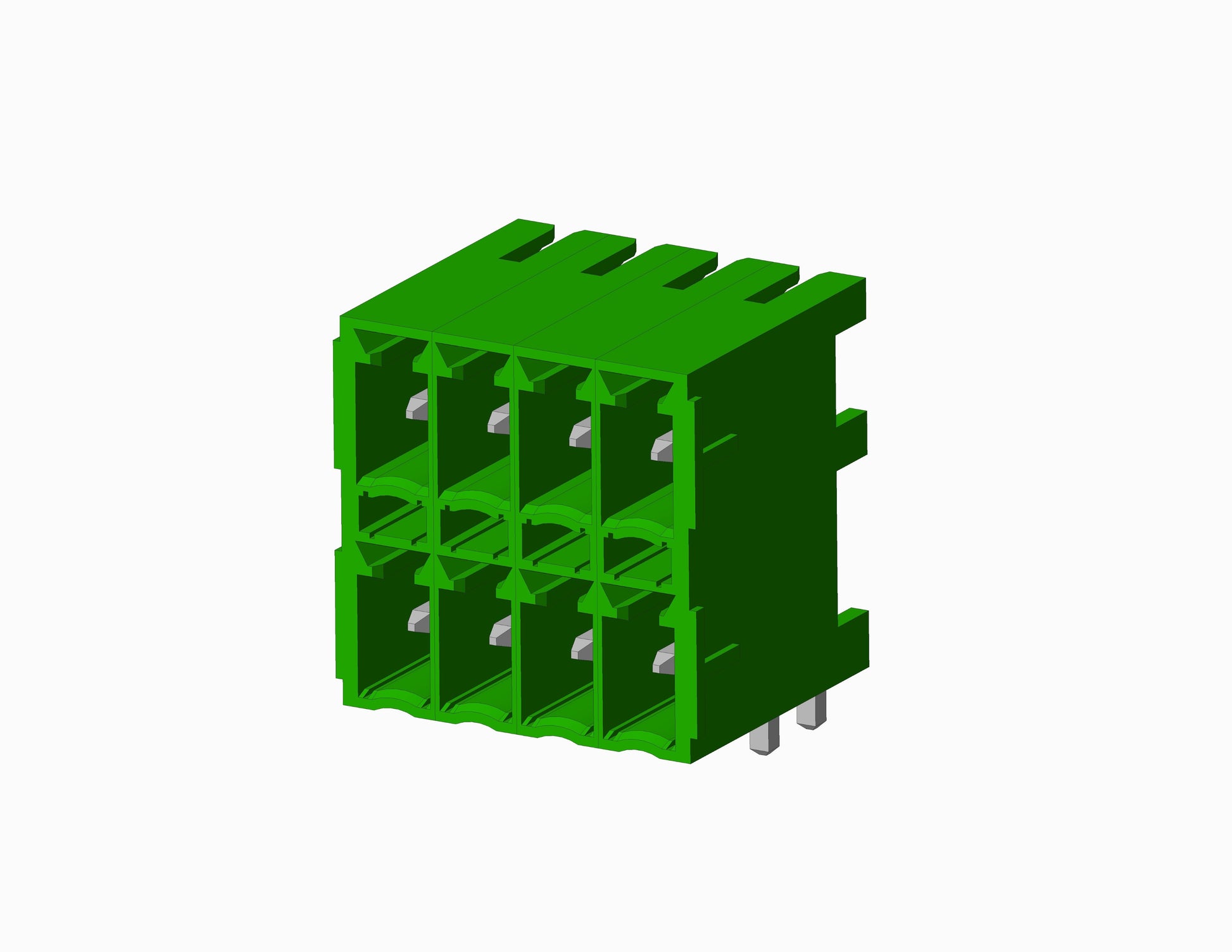

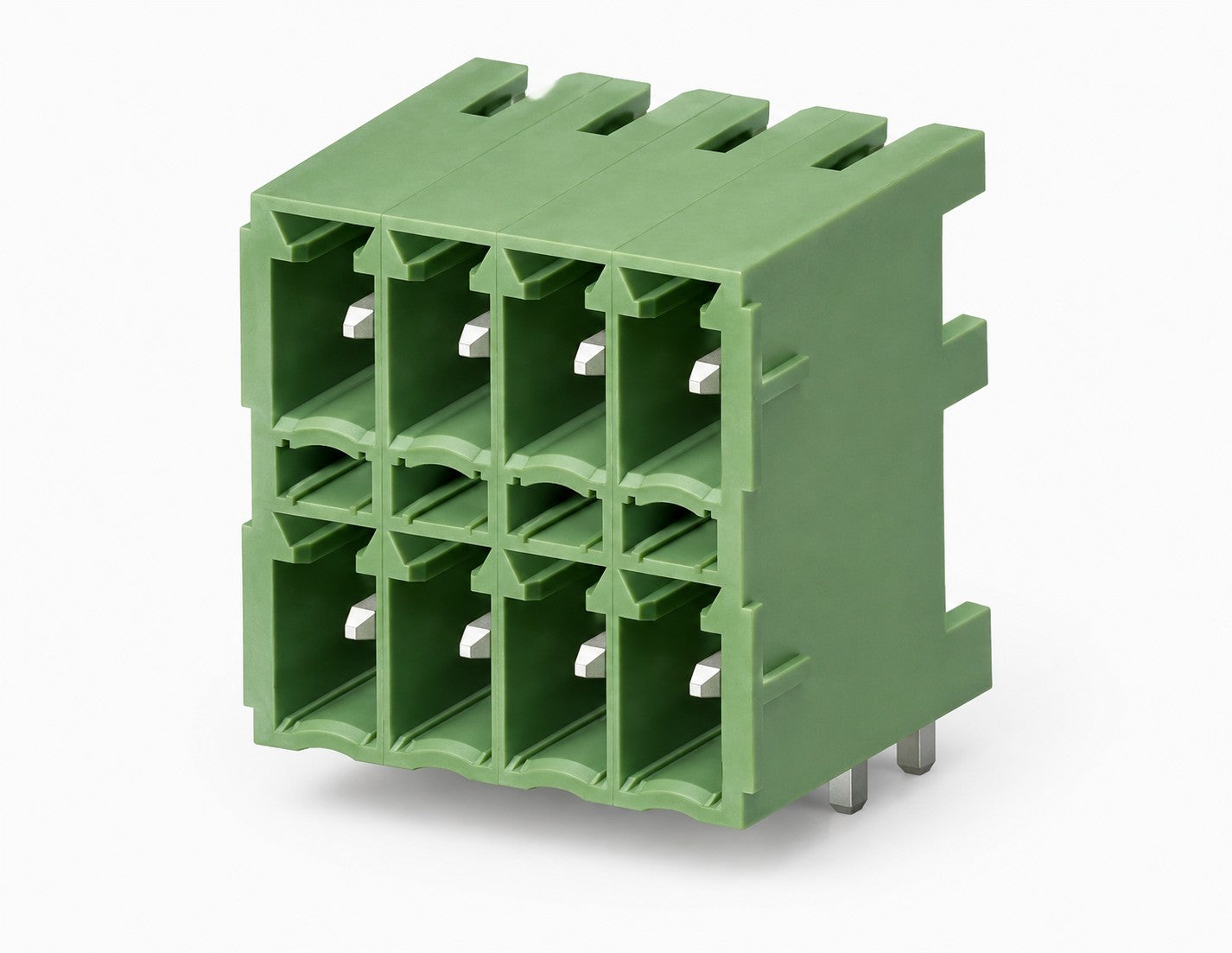

Name: HC445-XX-X00 SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Compact (3.5mm-4.57mm) > HC445-XX-X00

Approvals

1 1

Compact

HC445-XX-X00 Series - Shrouded - 3.5mm

Request Sample Request 3D File

HC445-XX-X00 Pluggable Headers. It has a centerline spacing of 3.5mm. The voltage rating is 160 VAC. The current rating is 55 Amps. It includes up to 32 positions. The soldering temperature is 280°C, 536°F for 5 seconds Max. The housing is constructed from High-Temp Polyamide, UL 94V-0.

Maximum number of positions 32

Centerline Spacing 3.50mm Spacing (0.138")

Electrical

Voltage Rating 160 VAC

Current Rating 55 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 280°C, 536°F for 5 seconds Max

Material

Insulator Body Material: High-Temp Polyamide, UL 94V-0

Contact Clip Material: Brass, Tin Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Black/Green

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
