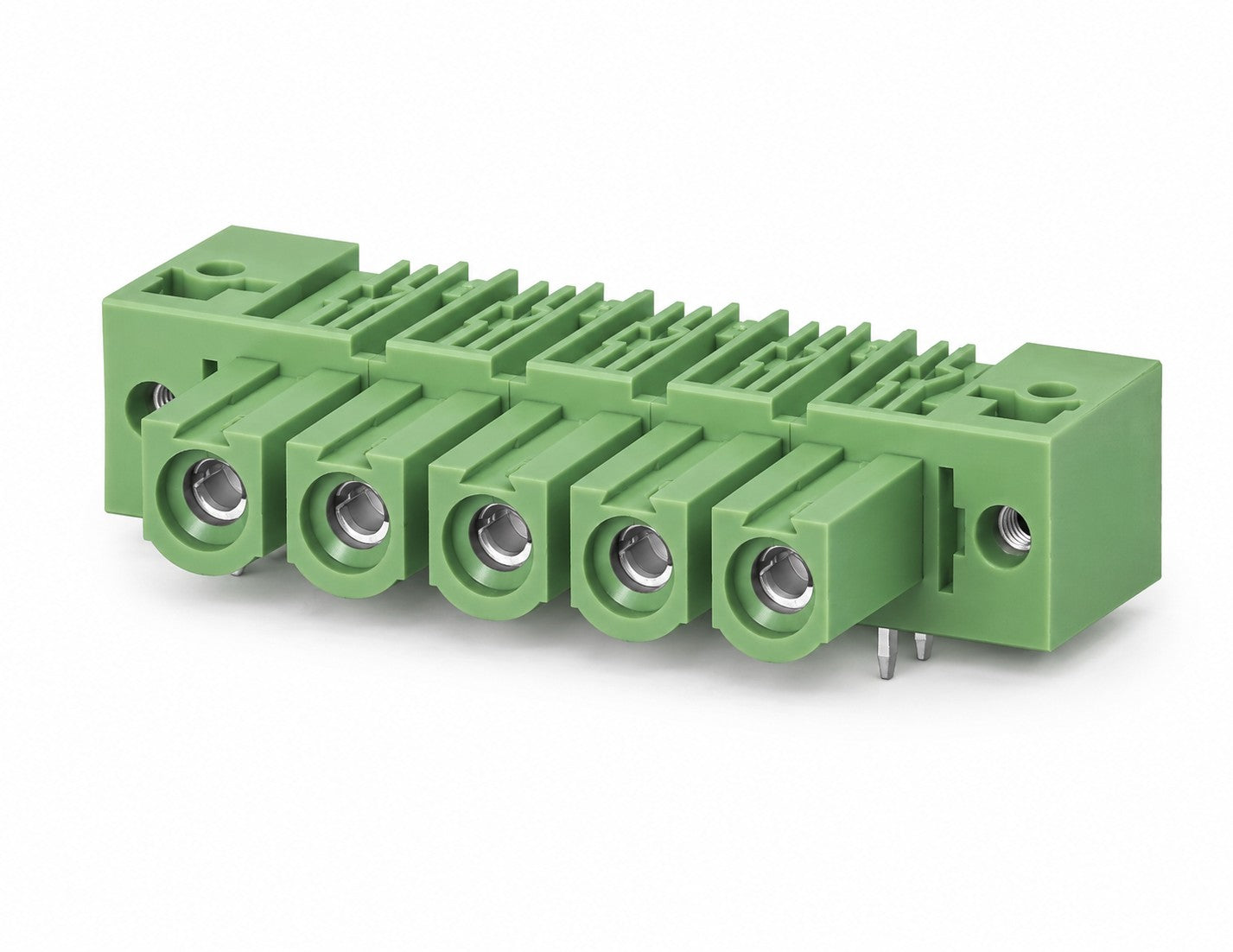

Name: HC1870AM SERIES Pluggable Headers
Brand: ebyelectro
Availability: InStock

Euro Style Headers > Shrouded > Power (6mm-20mm) > HC1870AM

Approvals

1 1

Power

HC1870AM Series - Shrouded - 10.16mm

Request Sample Request 3D File

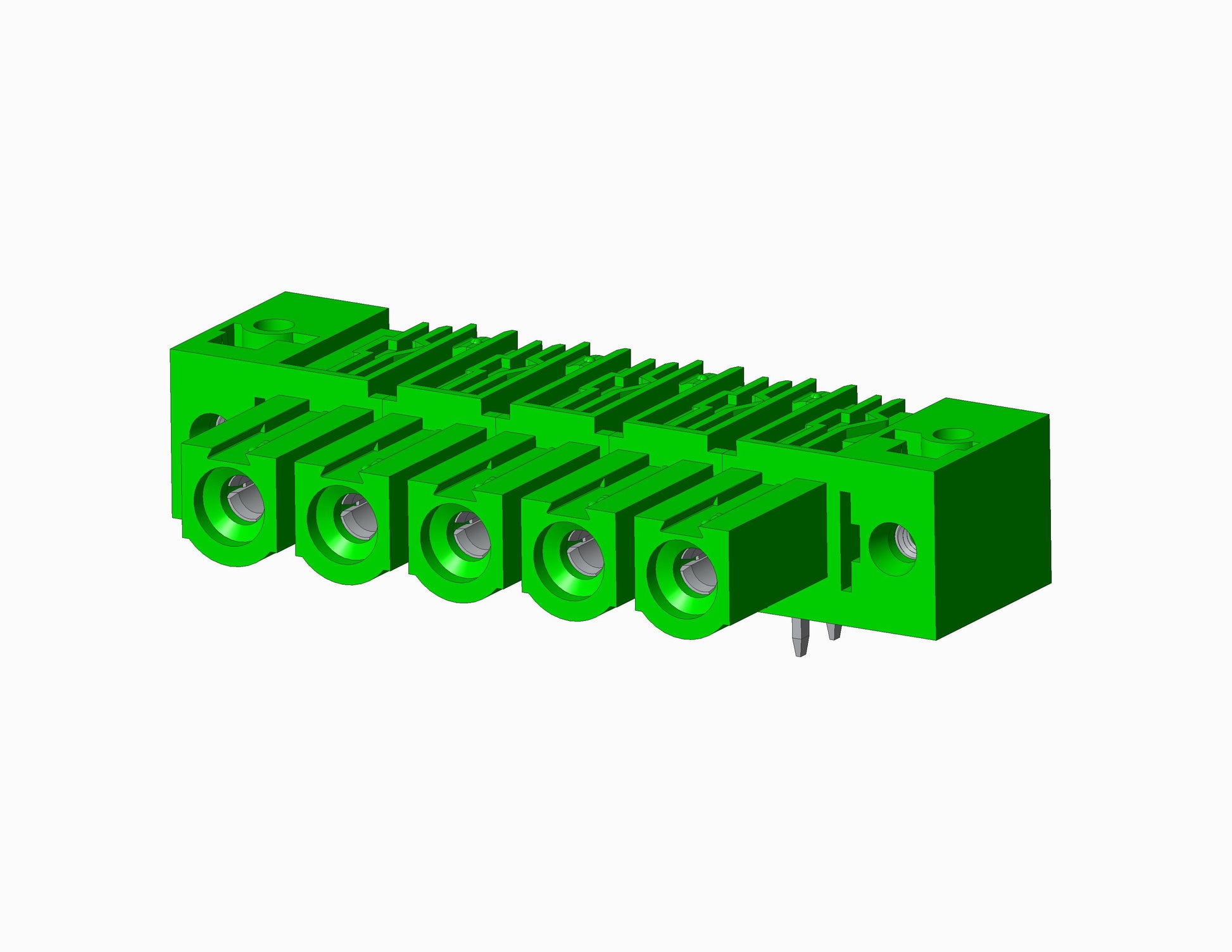

HC1870AM Pluggable Headers. It has a centerline spacing of 10.16mm. The voltage rating is 300 VAC. The current rating is 55 Amps. It includes up to 36 positions. The soldering temperature is 260°C, 500°F for 5 seconds Max. The housing is constructed from Polyamide, UL 94V-0. Feature: Horizontal, Triple Solder Pin.

Maximum number of positions 36

Centerline Spacing 10.16mm Spacing (0.400")

Electrical

Voltage Rating 300 VAC

Current Rating 55 Amps

Wire Range Min / Max

Mechanical

Torque

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polyamide, UL 94V-0

Contact Clip Material: Stainless Steel

Contact Solder Pin Material: Copper, Tin Plated

Mounting Flange Nut: M3.0, Steel, Zinc Plated

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
